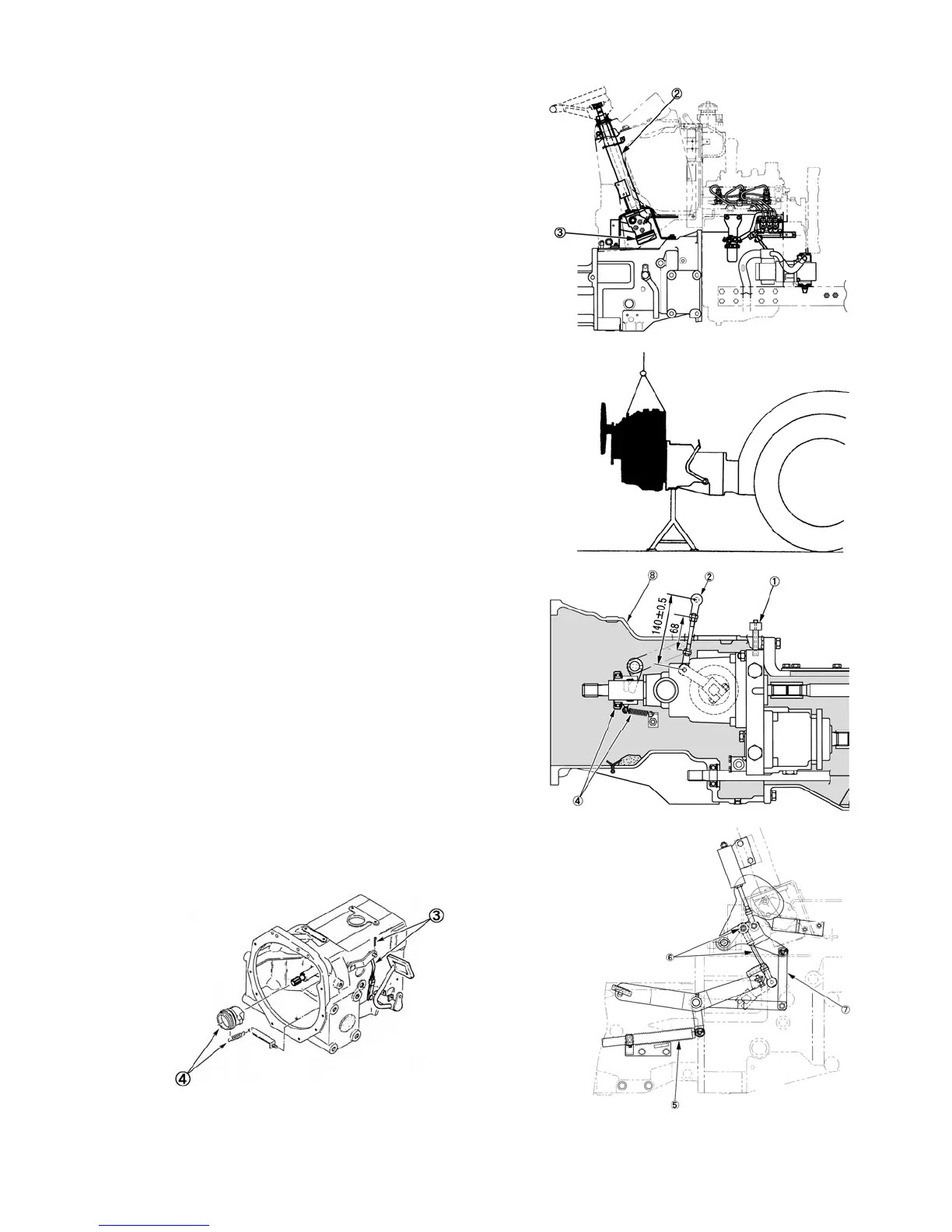

19) POWER STEERING CONTROL VALVE,
COLUMN
① Remove the cruise control assembly from the steering
column on HST model.
② Remove the bolts and steering column from the clutch
housing.
③ Remove the power steering control valve from the
column.
20) ENGINE
① Remove the engine attaching bolts and separate the
engine from the clutch housing.
21) CLUTCH HOUSING (HST ONLY)
① Remove the HST test port from top of clutch housing.
② Note the HST control rod length before removing for
reassembly.
③ Remove the cotter pin and disconnect the clutch rod.
④ Remove the spring and release bearing from front of
HST.
⑤ Remove the damper from R.H. side of the transmission
housing.
⑥ Remove the nut and disconnect the turn buckle from the
shift link.
⑦ Remove the shift link.
⑧ Remove the clutch housing retaining bolts, and separate
the clutch housing.
