DIODE
The diode attached with tape on the HST wire
harness near the cruise latch relay.
The diode current flows one way to cruise latch
relay when the cruise latch switch is “ON”
position after “SET” position.
CANCELS HST CRUISE CONTROL
Drive the tractor and depress the HST pedal to
suitable position, and then push the HST cruise
control switch to “SET” position and “ON”
position.
Tractor is driven to constant speed on the ground.
HST cruise control is canceled to depress the both
brake pedals or push the HST cruise control
switch to ”OFF” position.
399YD

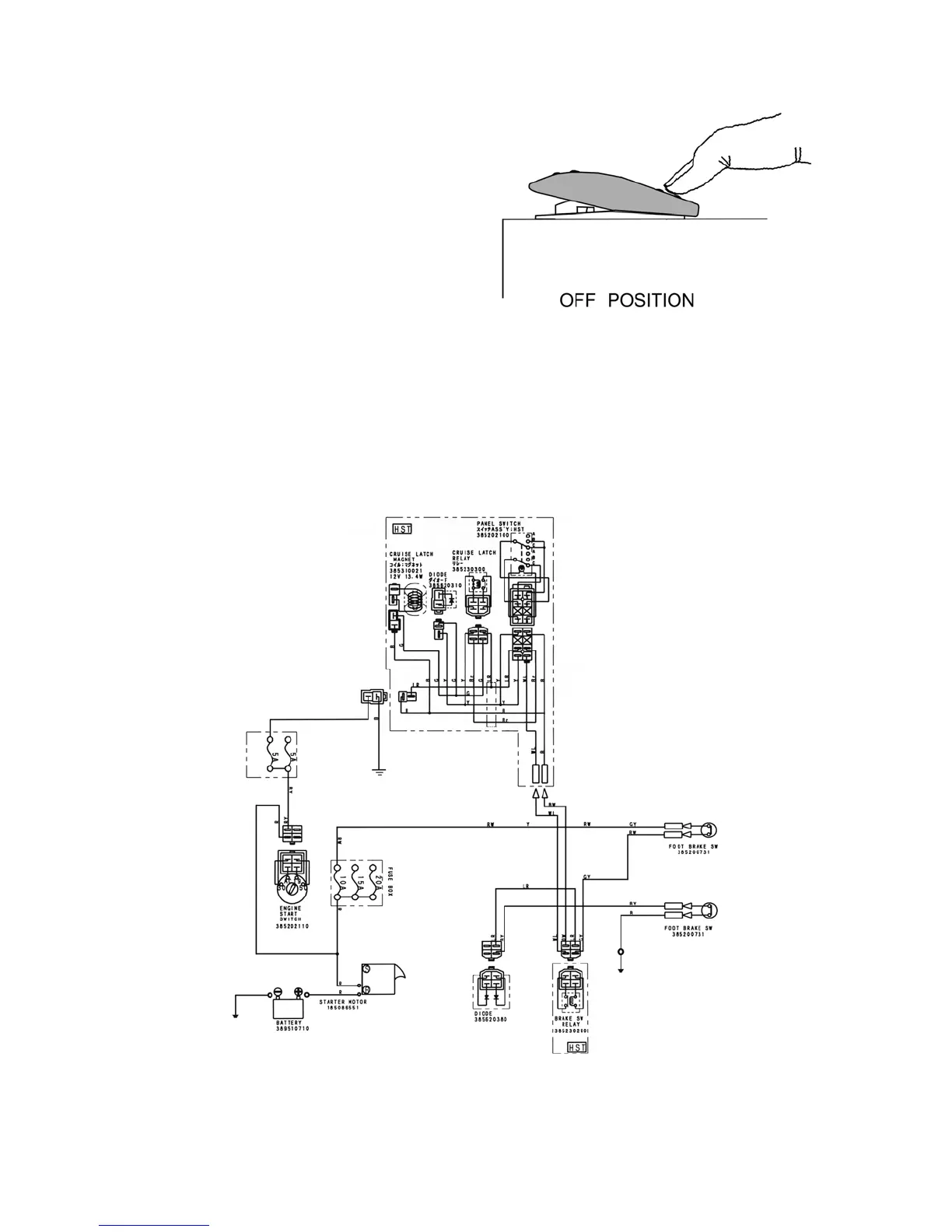

HST WIRINGS
1. SET Position
399YE
