21) ELECTRIC CRUISE CONTROL
SWITCH (HST Model only)
Description and Location

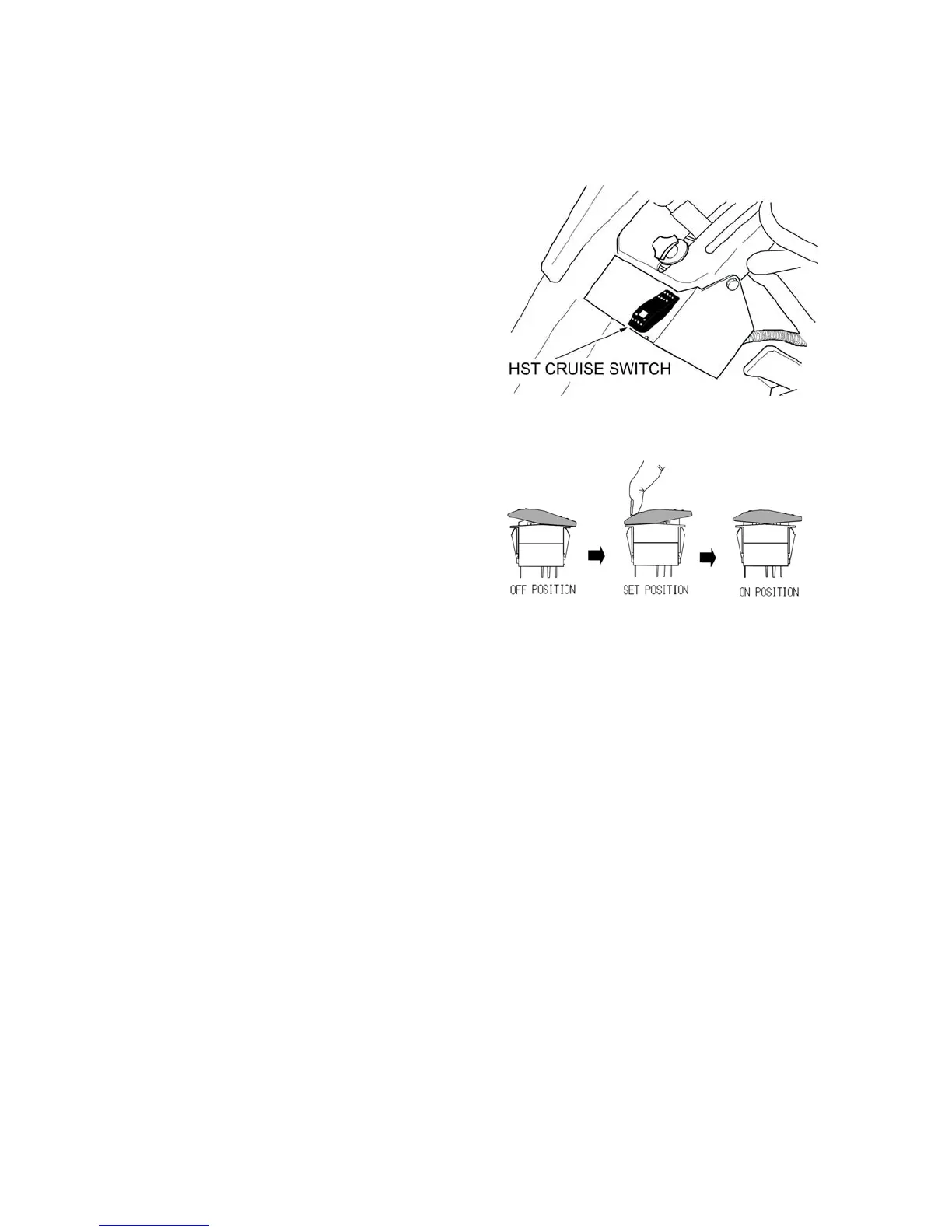

The electric cruise control switch, 1, is
located to the right fender.
The cruise control switch controls current to
cruise control magnet. Cruise control is used
to maintain the tractor at a constant speed
forward.
When the cruise control switch is pushed
from the “off” position to the “ set” position,
the control circuit of the cruise control,
relay is energized. This closes (completes)
the function circuit of the relay, which
supplies power to the cruise control magnet.
When the cruise control switch is released
from the "ON" position, the switch rockers
to the "ON" position, which keeps the cruise
control activated until the switch is pushed
to the "OFF" position or the brake pedals are
depressed. Current to the cruise control relay
is interrupted when both brake switches are
engaged, which deactivates the cruise
control magnet.
The cruise control switch is equipped with
an indicator light that will illuminate when
the switch is moved to the "SET" and "ON"
position, indicating the cruise control has
been activated.
Removal
1. Disconnect the negative (-) battery cable
from the battery.
2. Disconnect the wiring harness connector
from the cruise control switch.
3. Push the switch out of the adapter.
567Y
568Y
