Shibaura ST330 - Remote Control Valve; Single Acting Control Valve (with Detent Position)

178

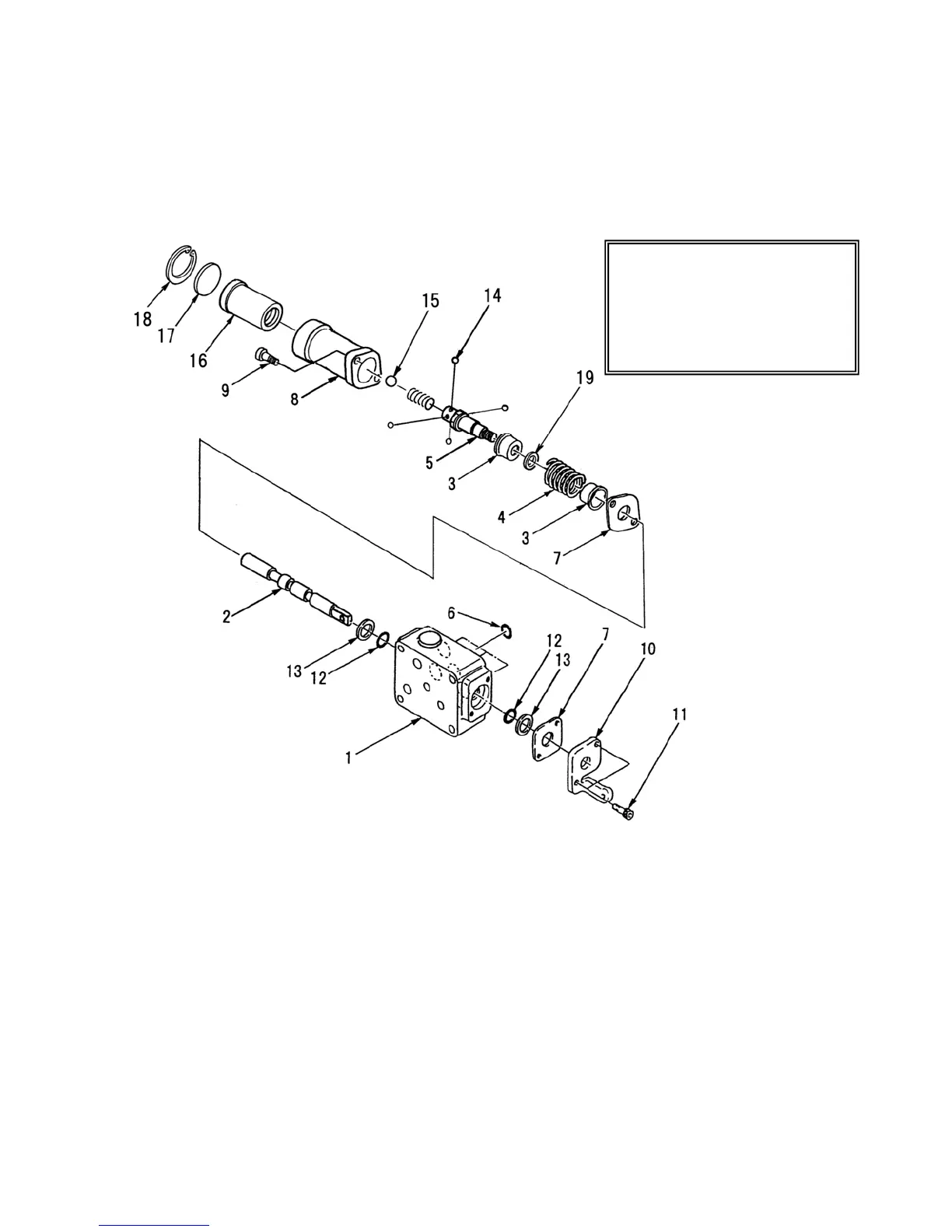

6. REMOTE CONTROL VALVE
1）Single acting control valve (with detent position) （No. 340015270）
510Y
1. Valve body
2. Spool
3. Spring seat
4. Spring
5. Bolt
6. O-ring
7. Seal plate
8. Cap
9. Bolt
10. Bracket
11. Seal plate
12. O-ring
13. Wiper ring
14. Steel ball
15. Steel ball
16. Sleeve
17. Spacer
18. Snap ring
NOTE:
This valve is located on the
HST model tractor for the mid
mount mower lifting.
