61

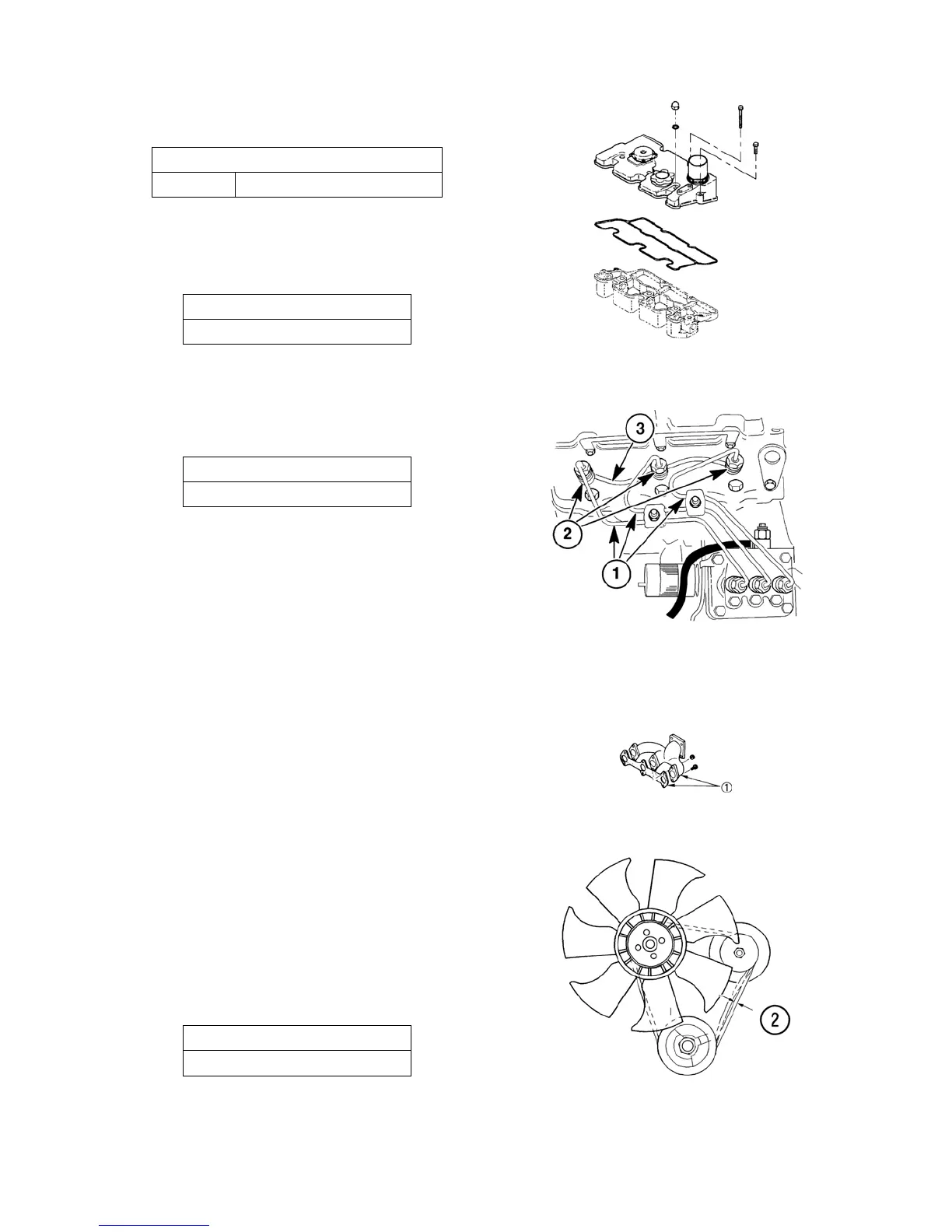

(28) Head cover with intake manifold
Tighten the head cover with gasket.
Head cover tightening torque
N843 12 – 16 N·m {1.2 – 1.6 kgf·m}
(29) Nozzle and holder ass’y
Tighten the nozzle and holder ass’y with specified torque
using a nozzle holder socket.
Nozzle and holder tightening torque
59 – 69 N·m {6 – 7 kgf·m}
(30) Return pipe COMPL · Injection pipe
Install the return pipe and then injection pipe.
Injection pipe tightening torque
15 – 25 N·m {1.5 – 2.5 kgf·m}
(31) Exhaust manifold
① Install the exhaust manifold with gasket.
(32) Alternator
Install the alternator taking care to the direction of the
adjusting plate.
(33) V belt · Fan pulley · Cooling fan
➀ Install the fan pulley and cooling fan and then V belt.
➁ Adjust the belt tension with the alternator so that it is
deflected 5 – 10 mm at the middle point between the
crankshaft pulley and alternator pulley when
depressed by a finger (about 5 kgf) and tighten.
Cooling fan tightening torque
9 – 13 N·m {0.9 – 1.3 kgf·m}
176-1Y
177Y
1. Injection pipe
2. Nozzle and holder
3. Return pipe
178Y
179Y
To Next Page
