10

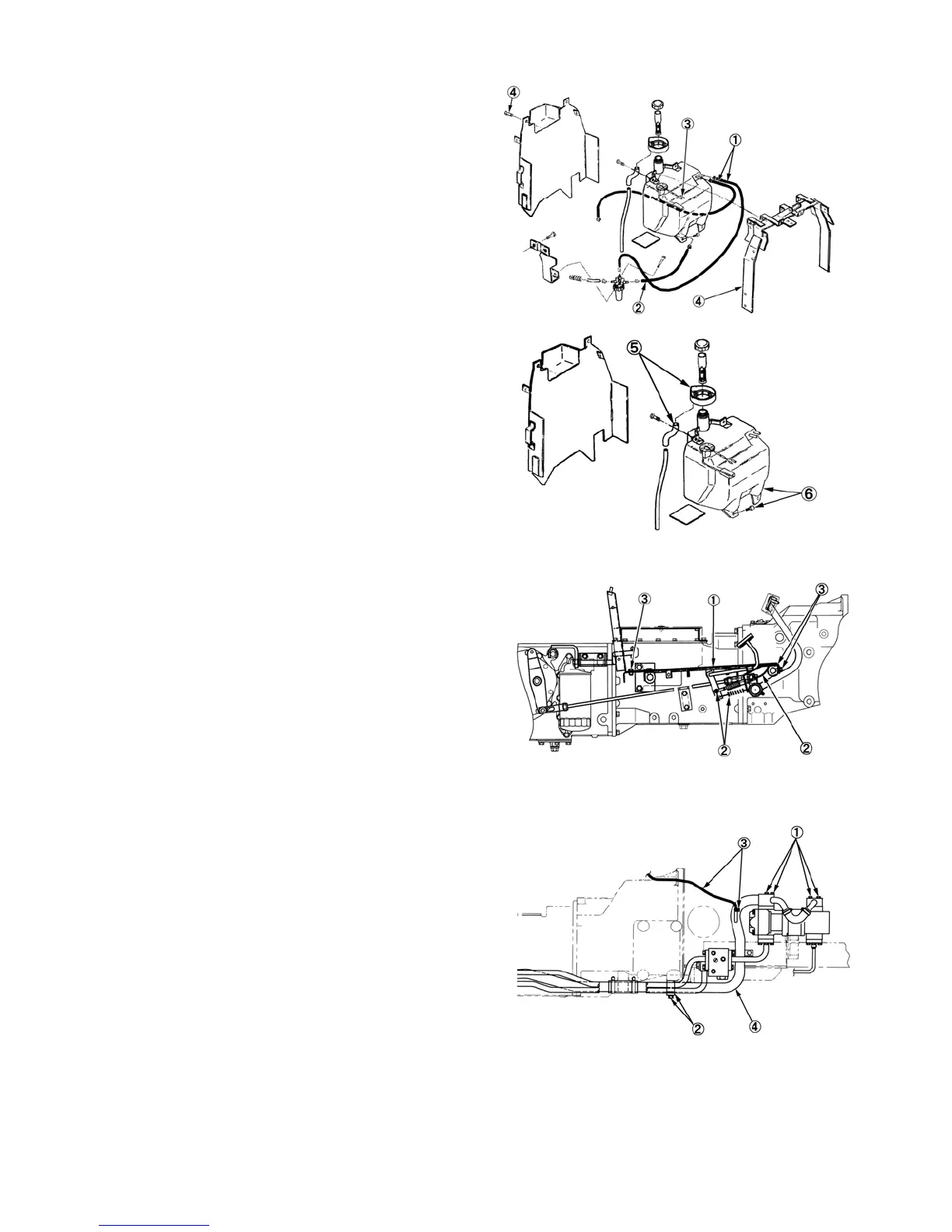

9) FUEL TANK
① Disconnect the two fuel return hoses from the top of the
fuel tank.
② Disconnect the fuel supply line from the fuel shut-off
valve and drain the fuel from the tank into a clean
container.
③ Disconnect the electrical connectors from the fuel level
sender unit.
④ Remove the bracket form top of the fuel tank.
⑤ Remove the spillover collector from the fuel tank neck.
⑥ Remove the screws and tank from the tractor.
10) SIDE STEP
① Remove the floor mat and sponge.
② Remove the foot throttle linkage return spring, remove
cotter pin and disconnect the foot throttle linkage from
underneath the right side step. (9×3 Model only)
③ Remove the bolts and side steps.
11) SUCTION PIPE
① Remove the bolts and lock washers and disconnect the
hydraulic pump suction line from both oil pumps.
② Remove the hydraulic tubing support clamps from under
the tractor.
③ Remove the hose band and power steering oil return hose
from the suction pipe.
④ Loosen the hose clamp and separate the suction line
from the hose.
013Y
014Y
015Y
016Y
