Shibaura ST330 - Case Cover Ass’y; Drive Pinion; Final Pinion; Final Pinion (Left)

68

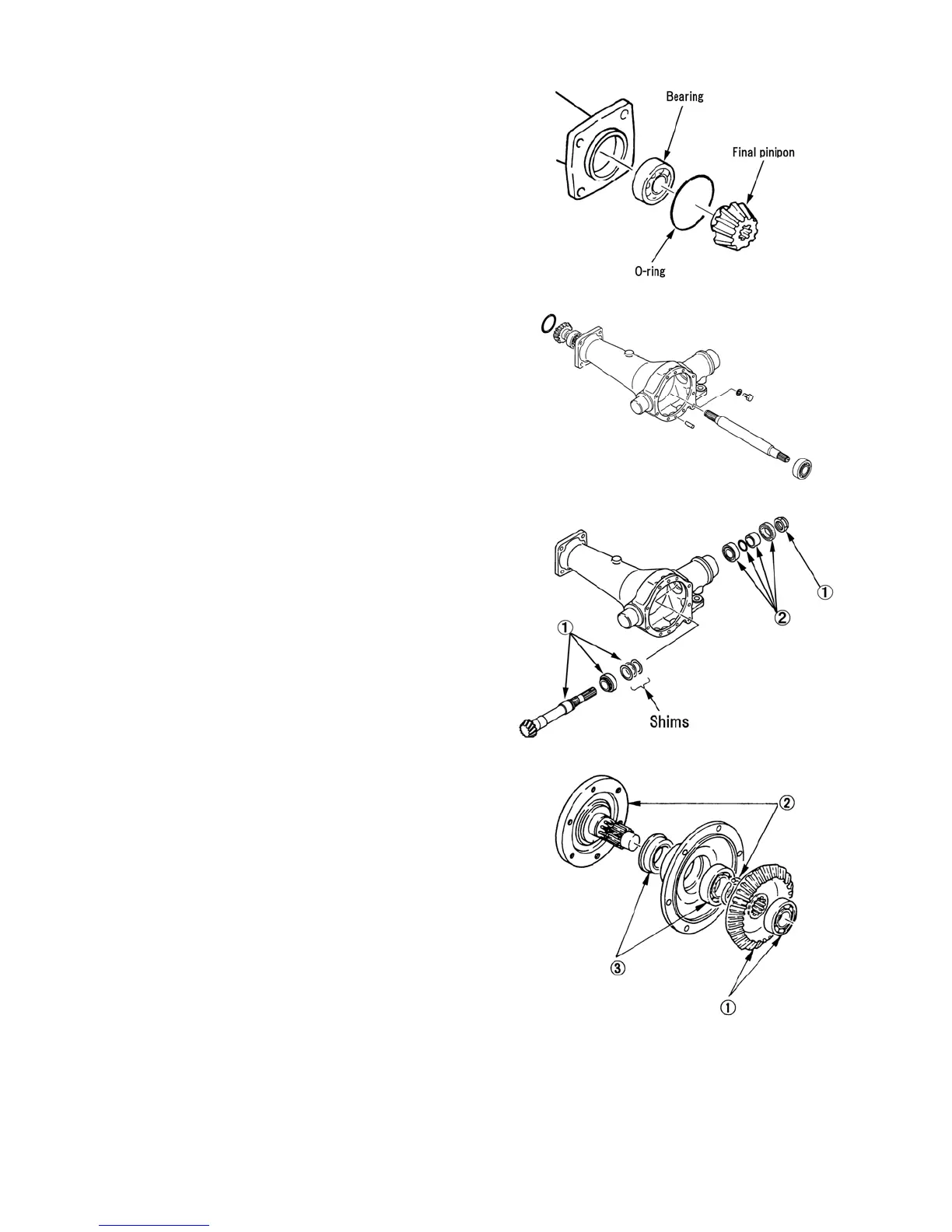

10. Final pinion (left): Idler
Remove the final pinion, bearing and O-ring.
11. Final pinion（right）・Differential shaft（right）
Extract the wheel shaft (right), final pinion (right) and
bearing together, from the wheel shaft case (right).
12. Drive pinion
➀ Remove the lock nut and extract the drive pinion, front
bearing and shim to the inside of the case.
NOTE:
Confirm the thickness and number of the shims.
➁ Remove the oil seal, collar, and bearing if necessary.
13. Case cover ass’y
➀ Remove the final gear (bevel), and bearing.
➁ Remove the crips and extract the wheel shaft.
➂ Drive out the bearing and oil seal from the cover.
