Shibaura ST330 - Change Lever Linkage; Main Change Lever Ass’y

138
NOTE:
Remove the dashboard, cover, and meter ass'y referring to 1-5, Removal of outside.

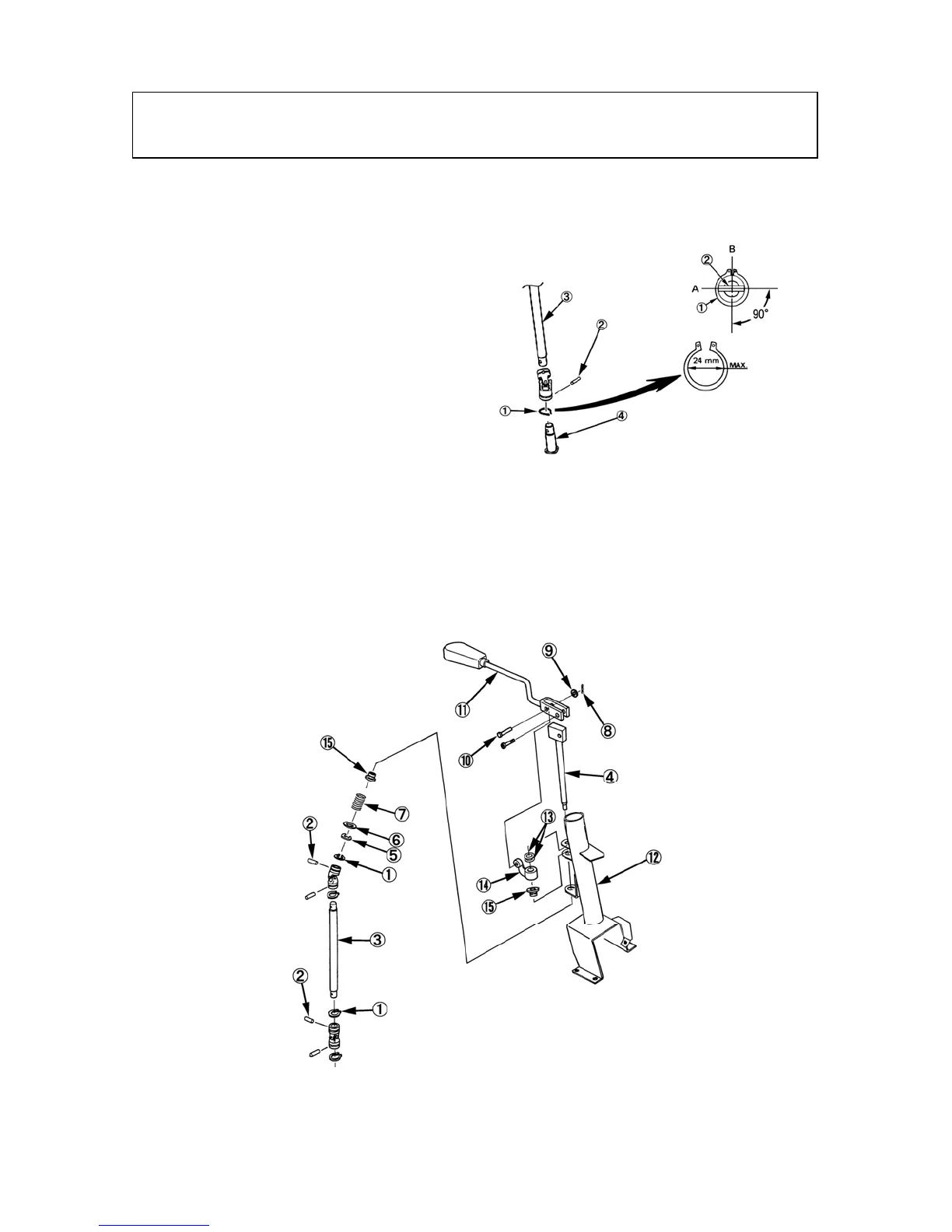

1. MAIN CHANGE LEVER ASS’Y
1) Disassembly
a. Remove the snap rings ① and drive out the pin,
② and separate the main change lever ass'y ③
from the shift arm ④.
NOTE：
When removing the snap ring, do not expand it to
more than
φ 24 in bore since the tightening force
decreases.
438Y
b Remove the snap ring ⑤, washer ⑥, and spring ⑦, from the shift arm ④.
c. Remove the snap pin ⑧, washer ⑨, and pin ⑩, from the change lever, ⑪.
d. Draw out the change lever ⑪, and shift arm ④, from the steering column ⑫.
5. Remove the shims ⑬ shift arm ⑭, and bushes ⑮ from the steering column.
439Y
3－6 Change Lever Linkage
