3) Adjustment of tread (Rear tire only)
The track tread can be adjusted at 7 stages depending
on combination of rim position exchange, and exchange
of right and left tires.
NOTE：
Bolts at this points are easily loosened.
Tighten them
positively.
NOTE：
Tread settings are measured from center of tire to center
of tire.
Front Wheel Settings
Front Tire Type Tread Setting Note
Agricultural
6-14
1100 mm Not Adjustable
Agricultural
7-14
1100 mm Not Adjustable
Turf
25×8.50-14
1150 mm Not Adjustable
IMPORTANT：Never attempt to widen the tread setting
by reversing front wheels on a four-wheel drive system.
Rear Wheel Settings
Rear Tire Type Tread Setting Note
Agricultural
11.2-24
1115 mm
Adjustable by
switching Disc
in or disc out
Agricultural
9.5-24
1115 mm
Adjustable by
switching Disc
in or disc out
Turf
13.6-16
1155 mm Not Adjustable
NOTE：
Torque rear wheel bolts ; M16 to 157-192 N
･
m
NOTE：
Torque front wheel bolts ; M12 to75-95 N
･
m

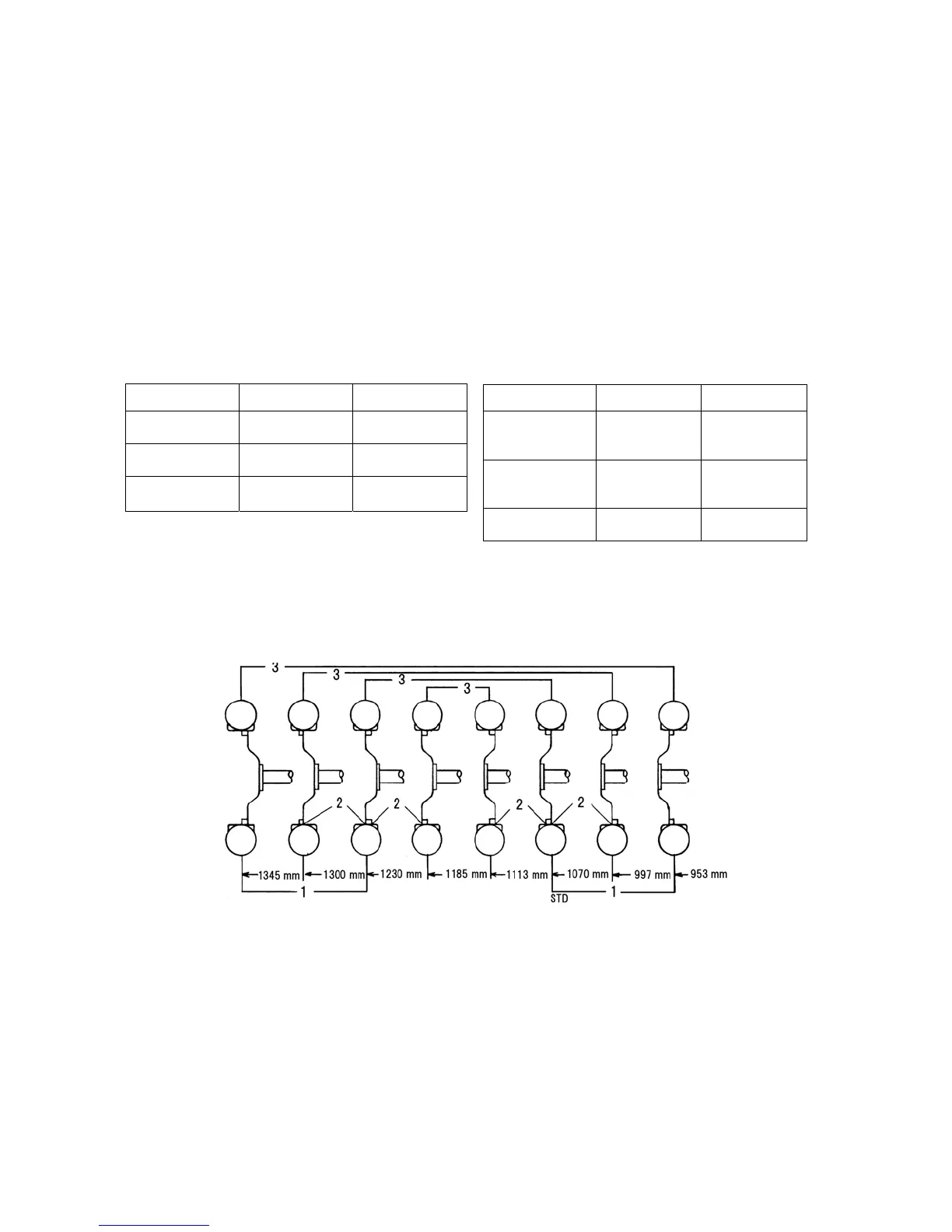

Rear Wheel Tread Settings (Tire ; AG11.2-24 or 9.5-24)
1. Reposition Rim On Disc 3. Inter-Changing Rear Wheel Assemblies
2. Rim Repositioned On Opposite Disc Give These Combinations
451Y
