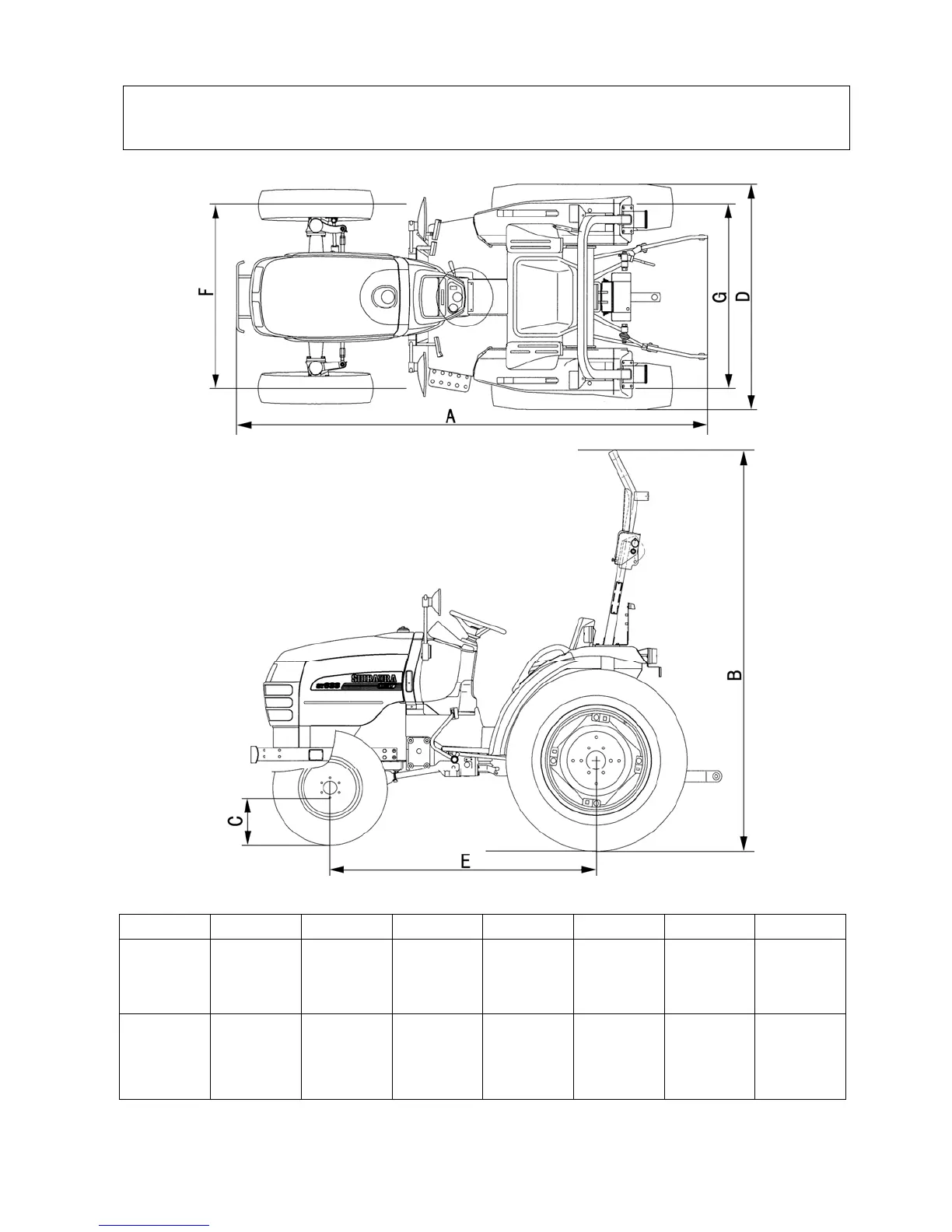

1-1 External Views
002Y
Unit: mm
Model A B C D E F G
ST 330
(9 × 3)
ST 333
(9 × 3)
2825 2490 300 1390 1600 1150
1115
(953~1345)
ST 330
(HST)
ST 333
(HST)
2825 2425 240 1500 1600 1100 1155
