Shibaura ST330 - Chapter 3. Tractor Main Body; Front Axle; Sectional Views

65
3-1 Front Axle

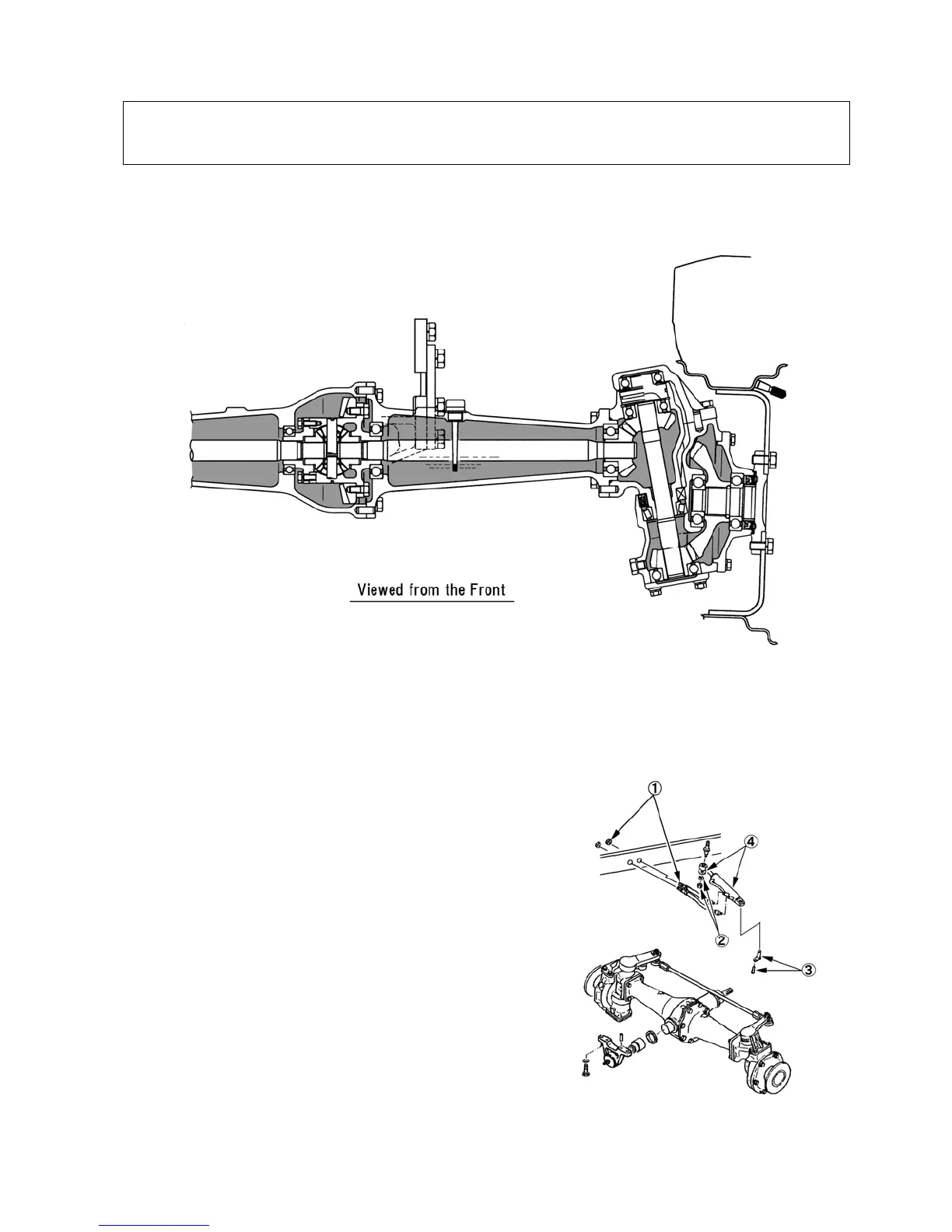

1. SECTIONAL VIEWS
300-1Y
2. DISASSEMBLY
Disassembling procedure
1. Cylinder （for power steering）
① Remove the nuts and adapters for power steering from
front axle support.
② Remove the nut (M16) of the arm (right) and take out
the spring washer and spacer.
③ Remove the bolt (M8 × 12) of the wheel shaft
case(right) and take out the pin.
④ Remove the cylinder and spacer.
301Y
