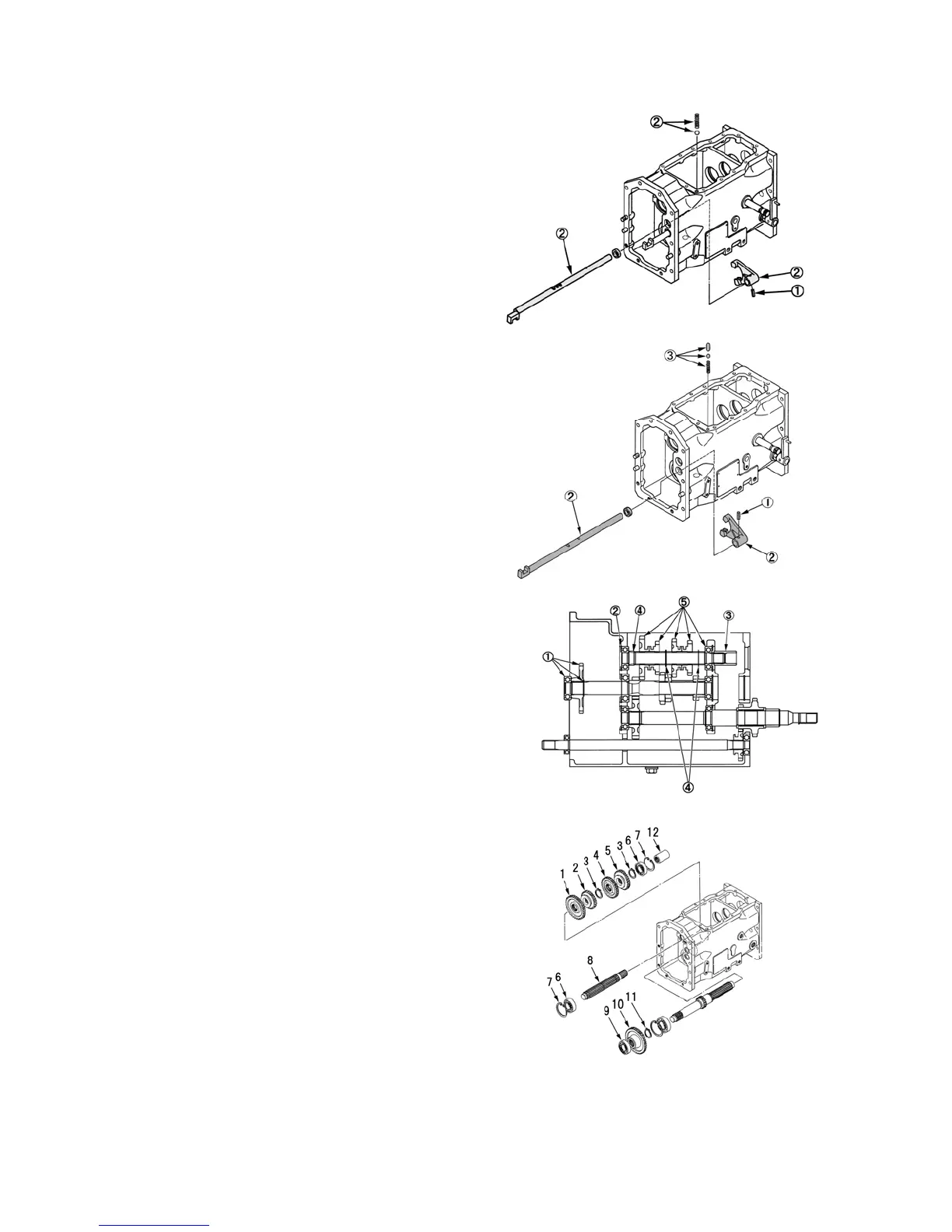

2. DISASSEMBLING
1） Shifter rod・Shifter fork (main：2－R)
① Drive out the spring pin from the 2－R shifter
fork.
② Drive out the shifter rod front-wards and remove
the shifter fork.
NOTE：
1.
Set the shifter rod on the 1 － 3 side (lower side) at
the neutral position.
2.
When the rod is pulled out, a steel ball drops into
the inside of the case. Take care not to miss it.
2） Shifter rod・Shifter fork (main：1－3)
① Drive out the spring pin from the shifter fork.
② Drive out the shifter rod front-wards and
remove the shifter fork
③ Take out the pin, steel ball and spring from the
housing.
NOTE：
1.
When the rod is pulled out, a balk pin and steel ball
come out.
Take care not to miss them.
2.
Remove the spring installed below the steel balls.
3） Counter shaft：main
① Remove the bearing, fixed gear and snap ring from
the front of counter shaft.
② Remove the snap ring (φ52) from front in the
housing.
③ Remove the coupler from rear of counter shaft.
④ Pull out the counter shaft front-wards moving the
snap rings ( φ 30) on the counter shaft to
rear-wards.
⑤ Take out the slide gears, snap rings and bearing
from housing.
1. Slide gear A (main：1)
2. Slide gear A (main：3)
3. Snap ring (φ30)
4. Slide gear A (main：2)
5. Slide gear A (R)
6. Bearing (6205)
7. Snap ring (φ52)
8. Counter shaft：main
9. Bearing
10. Fixed gear
11. Snap ring
12. Coupler
