8
2. ENGINE AND HST UNIT REMOVAL (9 × 3 and HST)
DISASSEMBLY

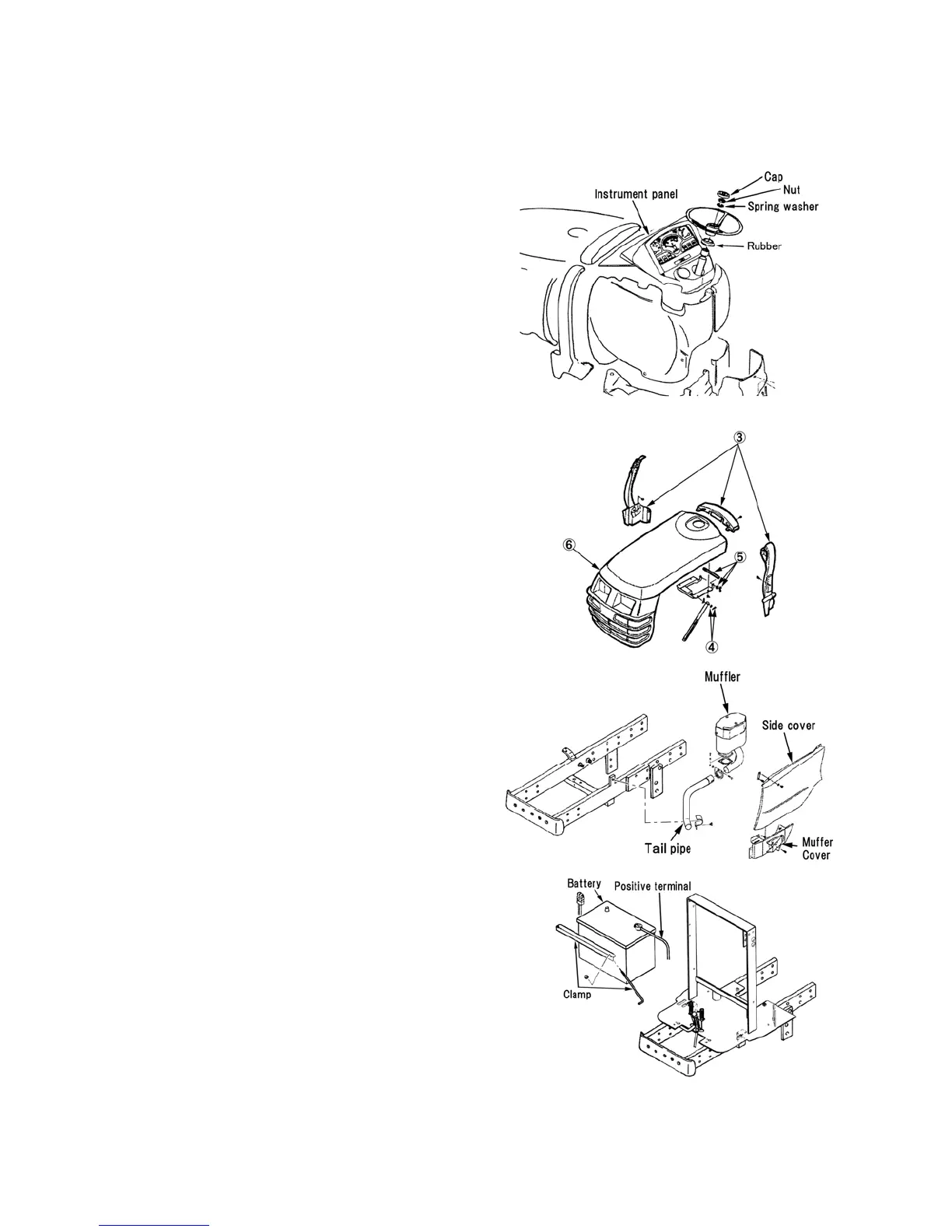

1) STEERING WHEEL, INSTRUMENT PANEL
① Remove the cap, retaining nut and spring washer.
② Pull the steering wheel.
③ Pull the instrument panel and disconnect the main wire
harness, speed meter cable and combination switch
connector.
④ Remove the rubber and instrument panel.
NOTE:
Keep the glass face of the instrument panel up after removal.
This will prevent the silicone oil in the fuel level gauge and
coolant temperature gauge from leaking out causing the
gauges to give a false indication during operation.
2) BONNET (HOOD)
① Disconnect the negative terminal from the battery.
② Disconnect the connector for head lamps.
③ Remove the cover from rear of hood.
④ Remove the clip pin and washer from the hood support
plate, and gradually lower the hood.
⑤ Remove the clip pins from the hood hinge pin and
remove the hinge pin.
⑥ Remove the hood from the tractor.
3) SIDE COVER, EXHAUST MANIFOLD
① Remove the right and left side covers.
② Remove the muffler cover, muffler and tail pipe from the
engine.
4) BATTERY
① Disconnect the positive terminal from the battery, and
remove the clamp and battery.
005Y
006Y
007Y
008Y
