Oil pan

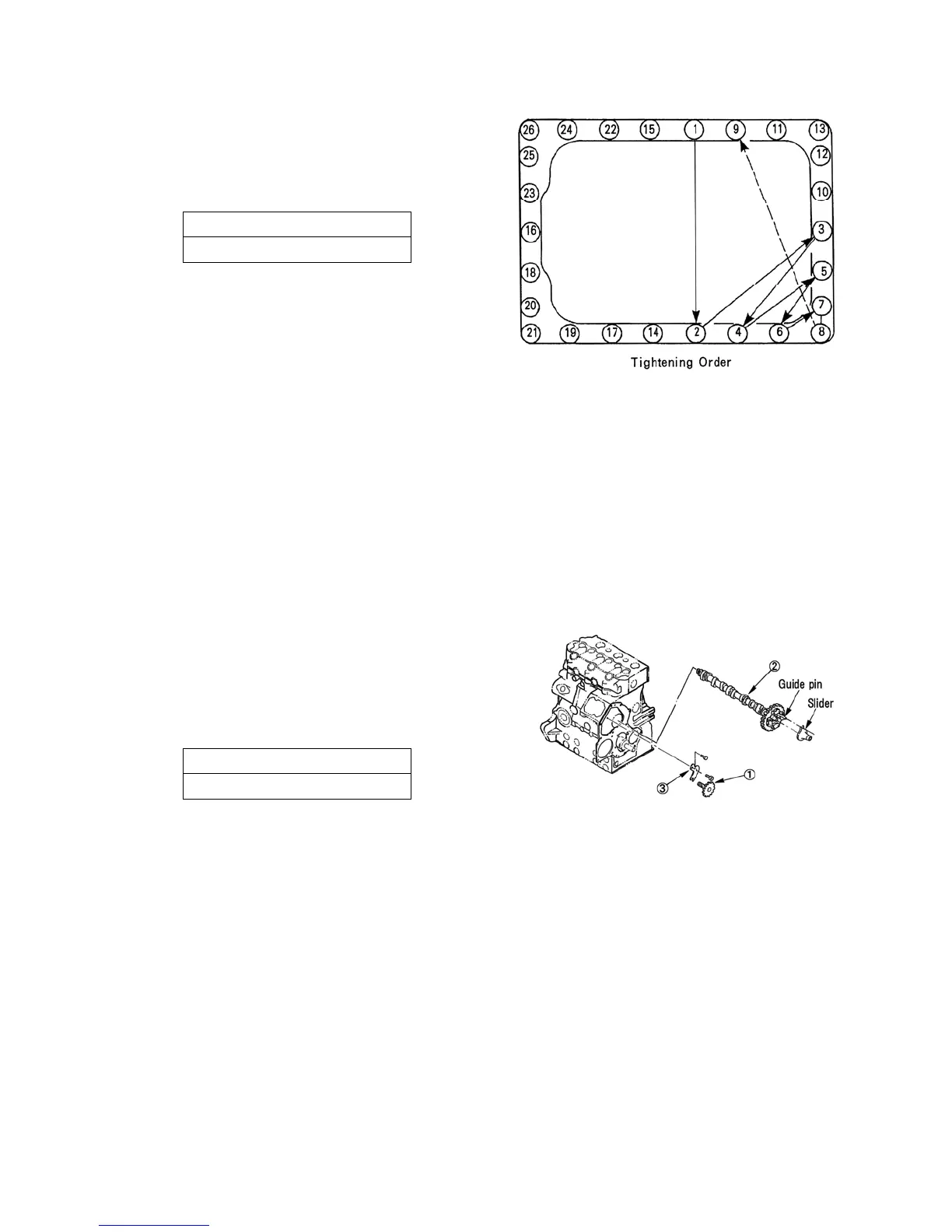

Start tightening the bolts of the oil pan from the center,
then tighten the opposing bolt on opposite side on the
diagonal and specified torque.
Bolt tightening torque
10 – 12.7 N·m {1.0 – 1.3 kgf·m}
(10) Oil level gauge · Gauge guide
Install the oil level gauge and gauge guide using 2
O-Rings.
(11) Front plate
Install the front plate together with the gasket.
(12) Camshaft ass’y · Tachometer shaft · Plate
➀ Install the tachometer shaft.
➁ Install the cam shaft ass’y (taking care to the bearing).
➂ Fix the tachometer shaft and cam shaft ass’y with the
plate.
Plate tightening torque
9 – 13 N·m {0.9 – 1.3 kgf·m}
NOTE:
Install the timing gear case taking care so that the
slider is not dislocated from the guide pin.
