34) STARTING MOTOR (M001T66081) (No. 185086551)
1. Description
This starter features a reduction mechanism
of planetary gearing system and permanent
magnets for magnetic field induction.
Its reduction mechanism comprises internal
gear, three planetary gears, gear shafts (with
overrunning clutch fitted by spline) and
armature shaft gear.
The structure is different from that of direct
drive type, but the electrical wiring is the
same between two types.
The magnetic field is produced by six
permanent magnets. The magnets are
mounted in the yoke and positioned
according to polarity.
They are permanently attached to the yoke
and, are not removable.

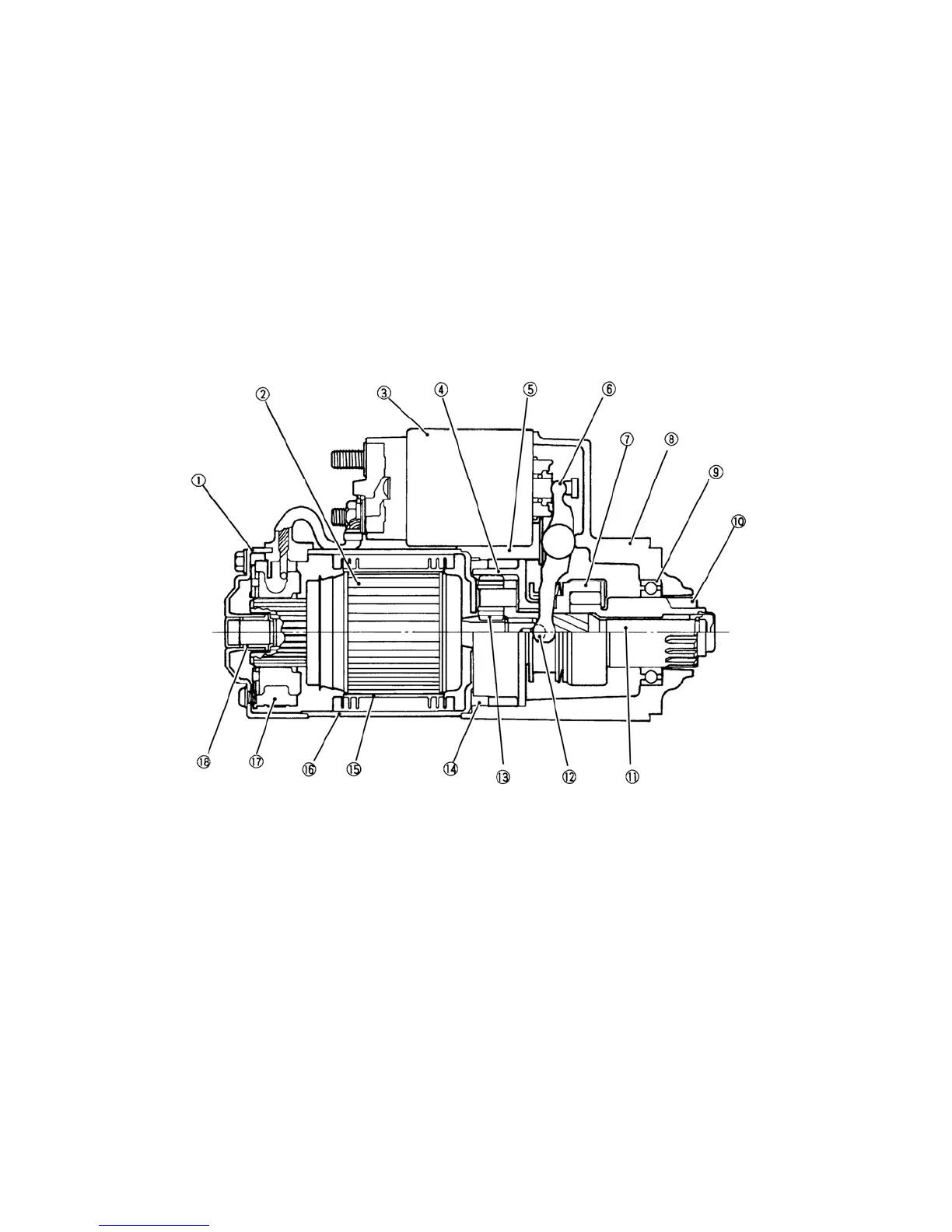

612Y
① Rear Bracket
② Armature
③ Switch
④ Internal Gear
⑤ Lever Packing
⑥ Lever
⑦ Overrunning Clutch
⑧ Front Bracket
⑨ Bearing
⑩ Pinion
⑪ Gear Shaft
⑫ Ball
⑬ Planetary Gears
⑭ Rubber Cover
⑮ Magnets
⑯ Yoke
⑰ Brushes
⑱ Sleeve Bearing
