Shibaura ST330 - Air Cleaner Assembly; Radiator Assembly; Dash Board (Shrouding); Throttle Cable

9

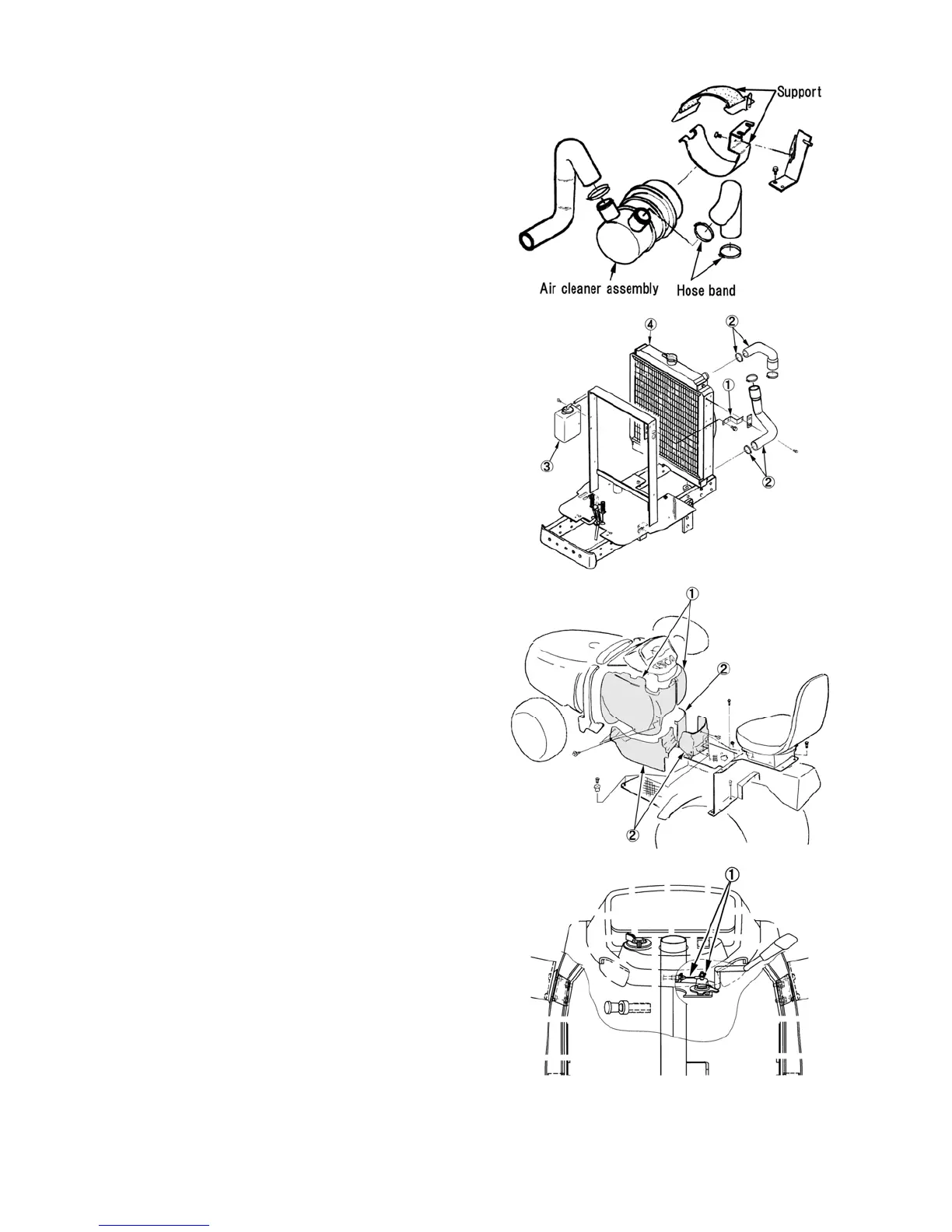

5) AIR CLEANER ASSEMBLY
① Un tighten the hose band of the intake manifold.
② Remove the air cleaner assembly from the air cleaner
support.
6) RADIATOR ASSEMBLY
① Remove the radiator supports.
② Untighten the hose bands and disconnect the radiator
hoses.
③ Remove the reserve tank from the battery support.
④ Remove the radiator assembly.
7) DASH BOARD (SHROUDING)
① Remove the cover （R.H. and L.H.）and dash board
（Rear）.
② Remove the screws securing the steering column center
shrouding, disconnect the electrical connectors from the
ignition switch and light switch, and remove the
shrouding.
8) THROTTLE CABLE
① Remove the cotter pin from the throttle lever and
disconnect the throttle cable.
② Disconnect the electrical connector from the tractor rear
main harness.
009Y
010Y
011Y
012Y
