（5） Drive shaft

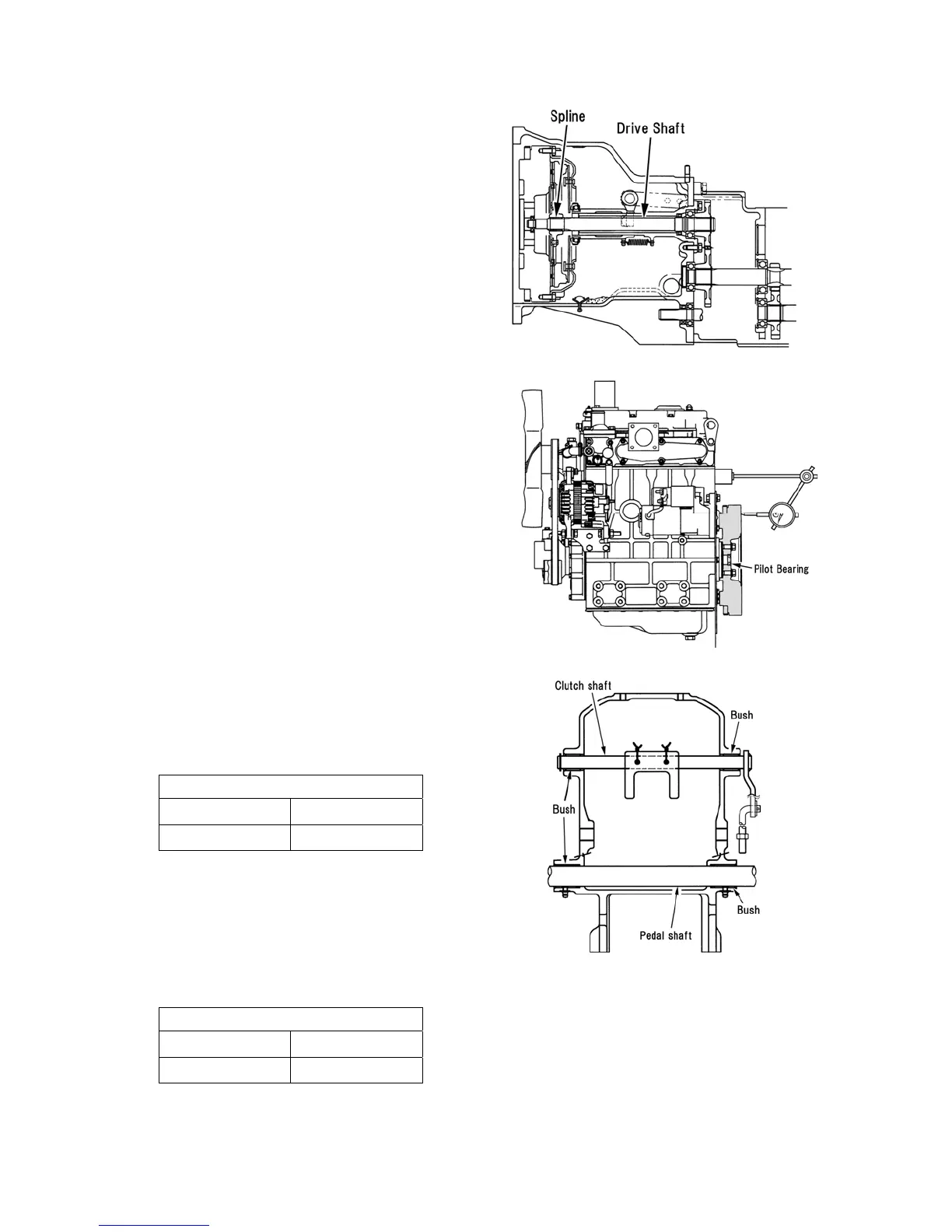

Replace the drive shaft if the spline is worn out
unevenly or damaged.
NOTE：
Check the spline of the clutch disc at the same time.
（6） Flywheel
① Check for cracks and one-sided wear and correct
the mounting surface if the damage is
insignificant.
② Check the pilot bearing for satisfactory condition.
(9×3 model only installed)
（7） Clutch shaft
① Check the clutch shaft for smooth operation.
② If the play of the clutch shaft and clutch case is
excessive, replace the bush.
Clutch shaft bush bore (φ)
Standard dimension Service limit
18 18.5
（8） Pedal shaft
① Check the pedal shaft for smooth operation.
② If the play of the pedal shaft and clutch case is
excessive, replace the bush.
Pedal shaft bush bore (φ)
Standard dimension Service limit
28 29
