Shibaura ST330 - Clutch Shaft; Disassembly, Inspection and Reassembly of Clutch; Release Bearing; Release Hub

74
2. DISASSEMBLY, INSPECTION AND REASSEMBLY OF CLUTCH
（Refer to 1－5, Removal of outside, for the clutch case separating method.）

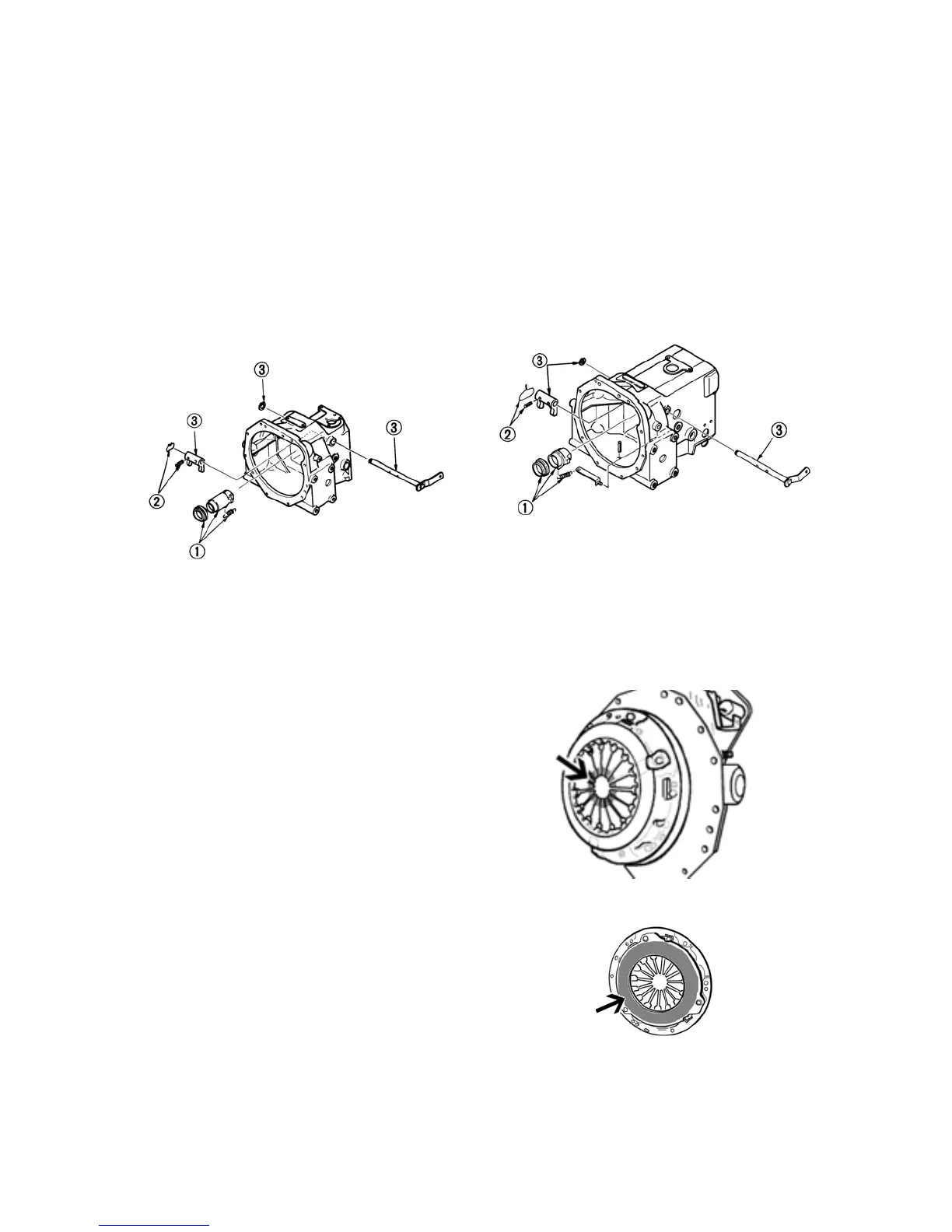

1） Disassembling procedure
（1） Release bearing・Release hub・Clutch shaft・Clutch fork
① Remove the return spring and extract the release hub and bearing together frontward.
② Disconnect the wire and drive out the spring pin.
③ Remove the snap ring, extract the clutch shaft leftwards, and take out the clutch fork from the case.
For Manual Transmission
326Y
2） Inspection and service
(1) Pressure plate ass’y
① Wear of lever (fork end) to be in contact with the
release bearing.
② If the friction surface is deflected, scratched or
worn out unevenly, correct with sand paper or
replace.
For HST Transmission
327Y
329Y
330Y
