Shibaura ST330 - Hst Piping, Oil Cooler, Oil Filter with Base; Battery Base, Front Axle Support; Firewall

12

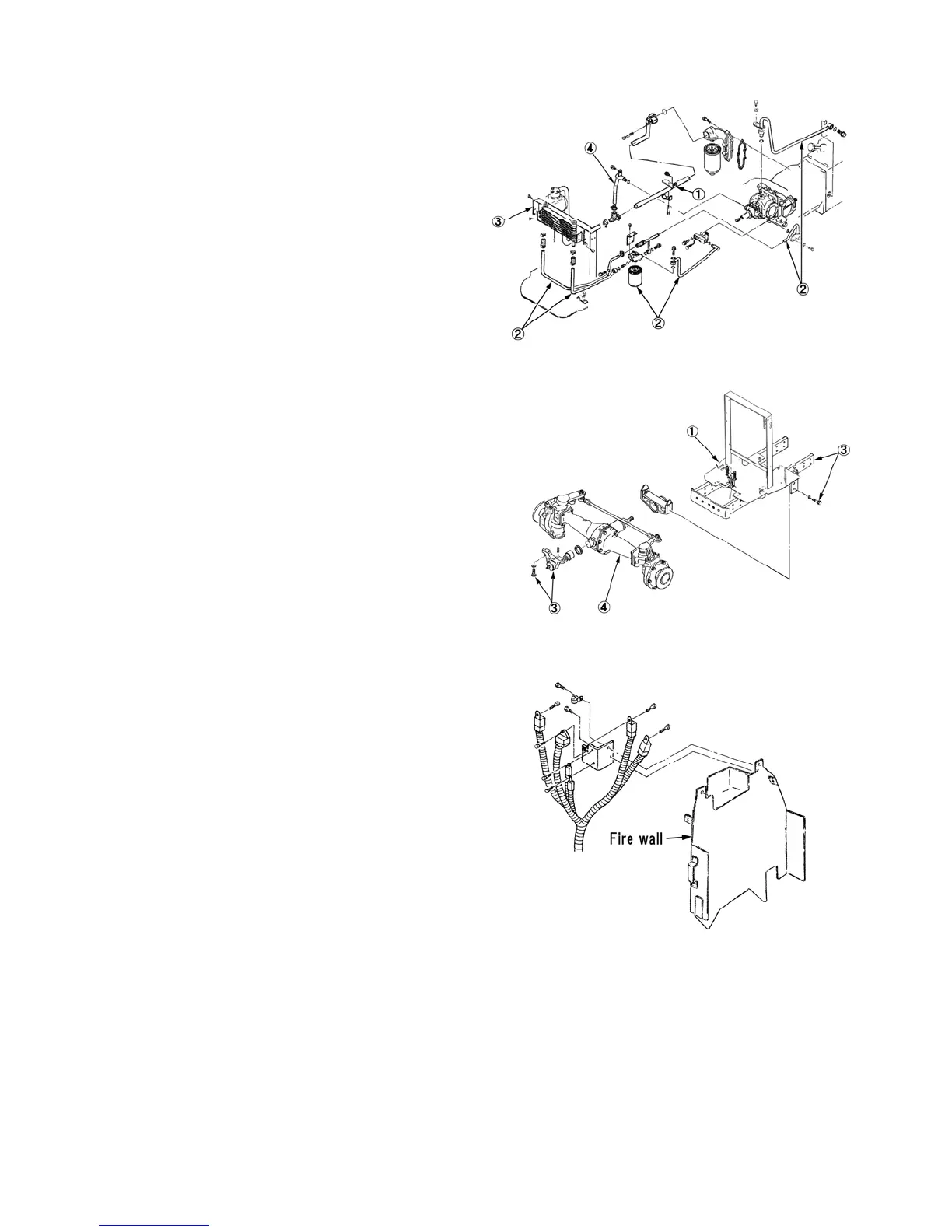

16) HST PIPING, OIL COOLER, OIL FILTER
WITH BASE (HST MODEL)
① Remove the clamps for HST piping.
② Release the hose bands and remove the banjo bolts,
pipings and oil filter with base.
③ Remove the brackets and oil cooler from on the radiator.
④ Release the hose band and remove the banjo bolt and
suction pipe for HST.
17) BATTERY BASE, FRONT AXLE SUPPORT
① Remove the bolts and battery base from on the front axle
support.
② Lift the engine with the hoist and put the safety stand
under the clutch housing.
③ Heat the front axle support attaching bolts head by
burner, and remove the bolts and front axle support with
front axle assembly.
④ Separate the front axle assembly from the support.
18) FIREWALL
① Disconnect the electric wire connectors from the light
switch and relay etc.
② Remove the firewall with electric wire harness.
019Y
020Y
021Y
