Shibaura ST330 - Differential Fork; Differential Lock Pedal; Differential Shaft; Main Shaft

119
1）DISASSEMBLY
(Manual transmission of one-speed PTO and two-speed PTO Model)
(1) Differential lock pedal ・ Differential shaft ・
Differential fork
① Remove the differential lock pedal, 1.
② Remove the spring, 8, and drive out the spring pin.
③ Extract the differential lock shaft, 6, rightwards
and take out the spring, 4, and differential fork, 10.
NOTE:
Remove the O-ring, 10, at the end of the shaft before
extracting the shaft.
(2) Main shaft；Range gear
① Remove the snap ring (φ40) at the rear side of the
fixed gear (range； M), 7, and move the gear
rearwards.
② Driving out the main shaft, 3, front- wards,
remove the fixed gears (range； H), 5, (range；M) ,
7, and collar, 6.
NOTE:
Take care for the snap ring, 9, which is in the joint, 1, at
the end of the shaft.

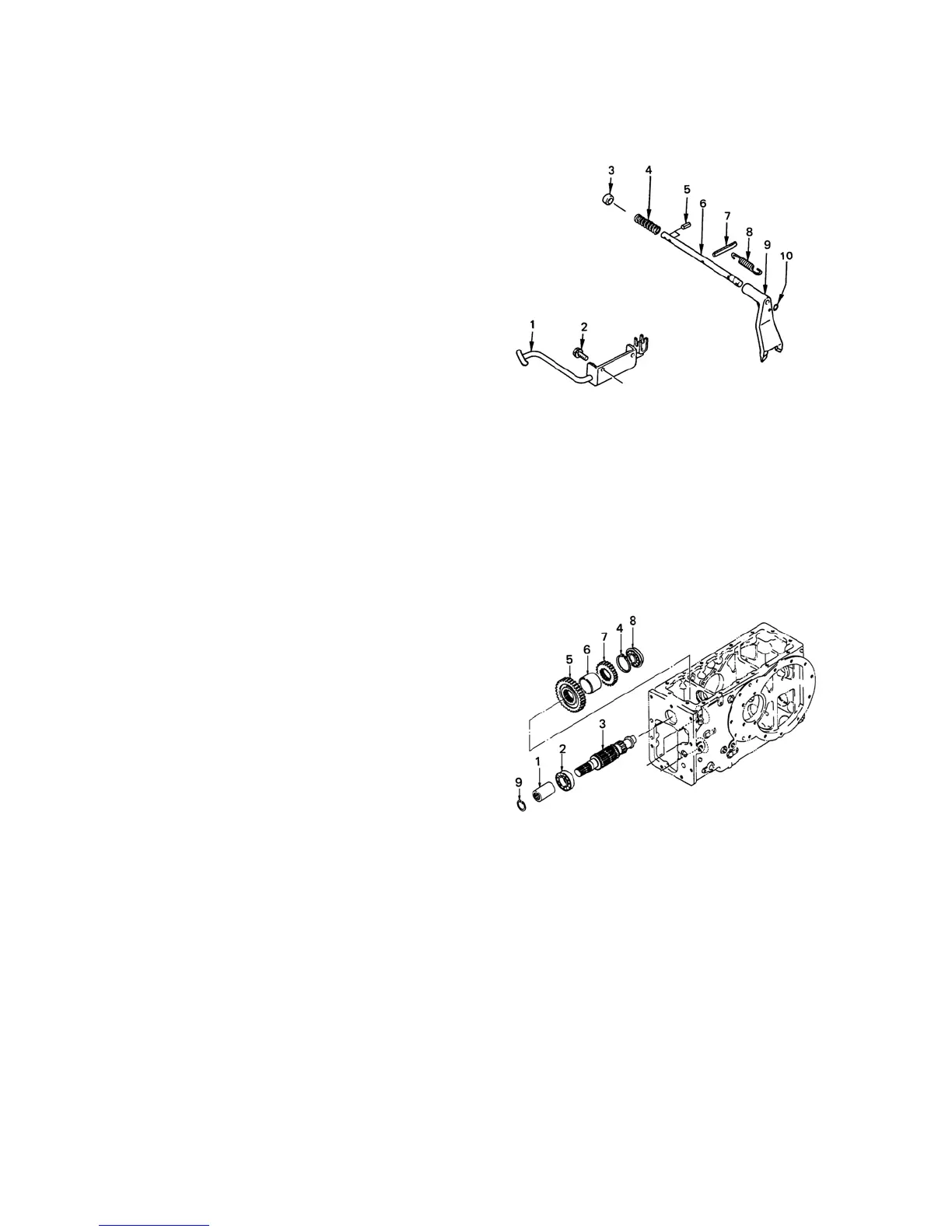

404Y
405Y
1. Differential lock pedal
2. Bolt
3. Oil seal
4. Spring
5. Spring pin
6. Differential lock shaft
7. Spring pin
8. Spring
9. Differential lock fork
10. O-ring (P11)
1. Joint
2. Bearing (6205)
3. Main shaft
4. Snap ring (φ40)
5. Fixed gear A
(range; H)
6. Collar
7. Fixed gear A
(range; M)
8. Bearing (6204)
9. Snap ring (φ22)
