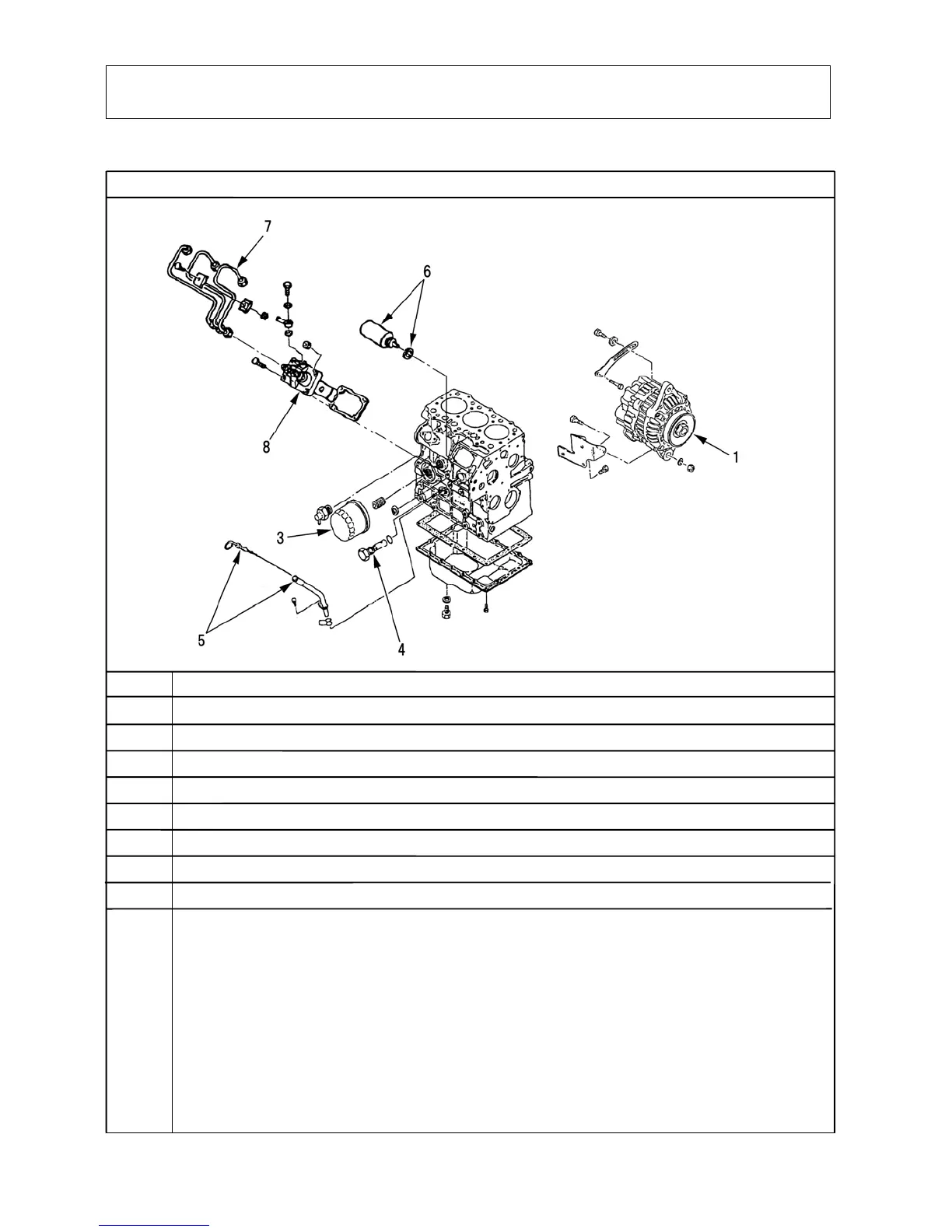

2-3 Disassembly, Inspection and Reassembly
1. Disassembly
Disassembly
102Y
Order
Disassemble Parts Name
1 Alternator
2 Not available
3 Oil filter
4 Relief valve
5 Oil level gauge・Gauge guide
6 Engine stop solenoid・Seal washer
7 Injection pipe
8 Injection pump assembly
Note :
1. Remove the injection pipes and engine stop solenoid before remove the
injection pump.
2. Raise the injection pump and disconnect the governor link from the control rack by remove
the snap pin.
3. Injection timing has been adjusted by the shims between injection pump
and cylinder block. Take note of their thickness and number when removing the injection
pump.
