NOTE：
1.

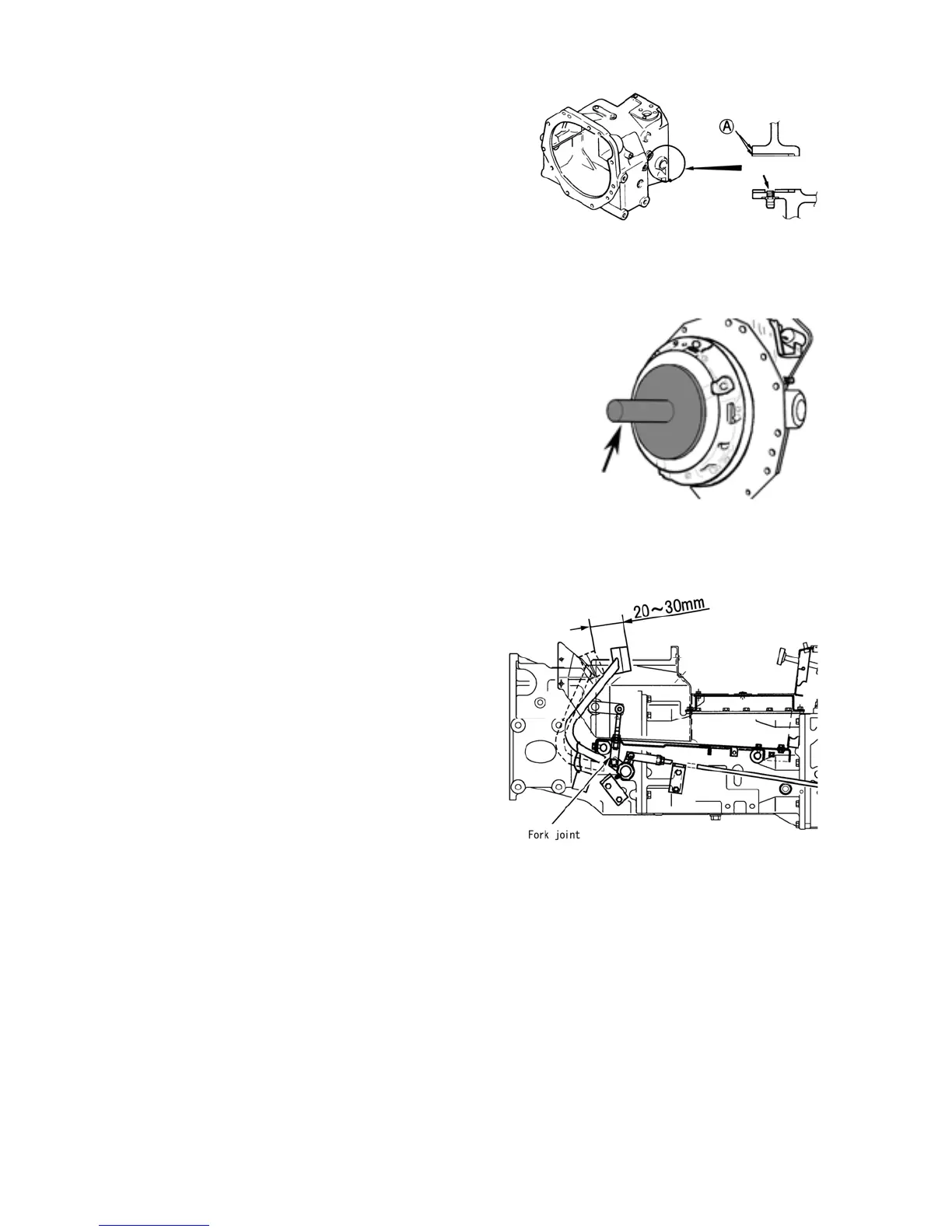

Drive in the bush until it becomes level with the
pedal shaft end surface. (A)
2. Align the bush hole and grease fitting hole.
3） Reassembly and adjustment
（1） Pressure plate and clutch disk
Align the pressure plate and clutch disk with the special
service tool and tighten them evenly to the flywheel.
NOTE:
On Model ST 329, since the clutch ass'y fixing bolts are
different in length (2 types), care should be taken about
combination with the bolt holes (bolt hole depth is also
different.)
（2） Assembly to main body
Reassembly shall be in the reverse order to disassembly.
（3） Adjustment of clutch pedal play
Adjust the clutch pedal play to 20 - 30 mm at the pedal
tread turning the fork joint.
339Y
340Y
341Y
Special tool
