53

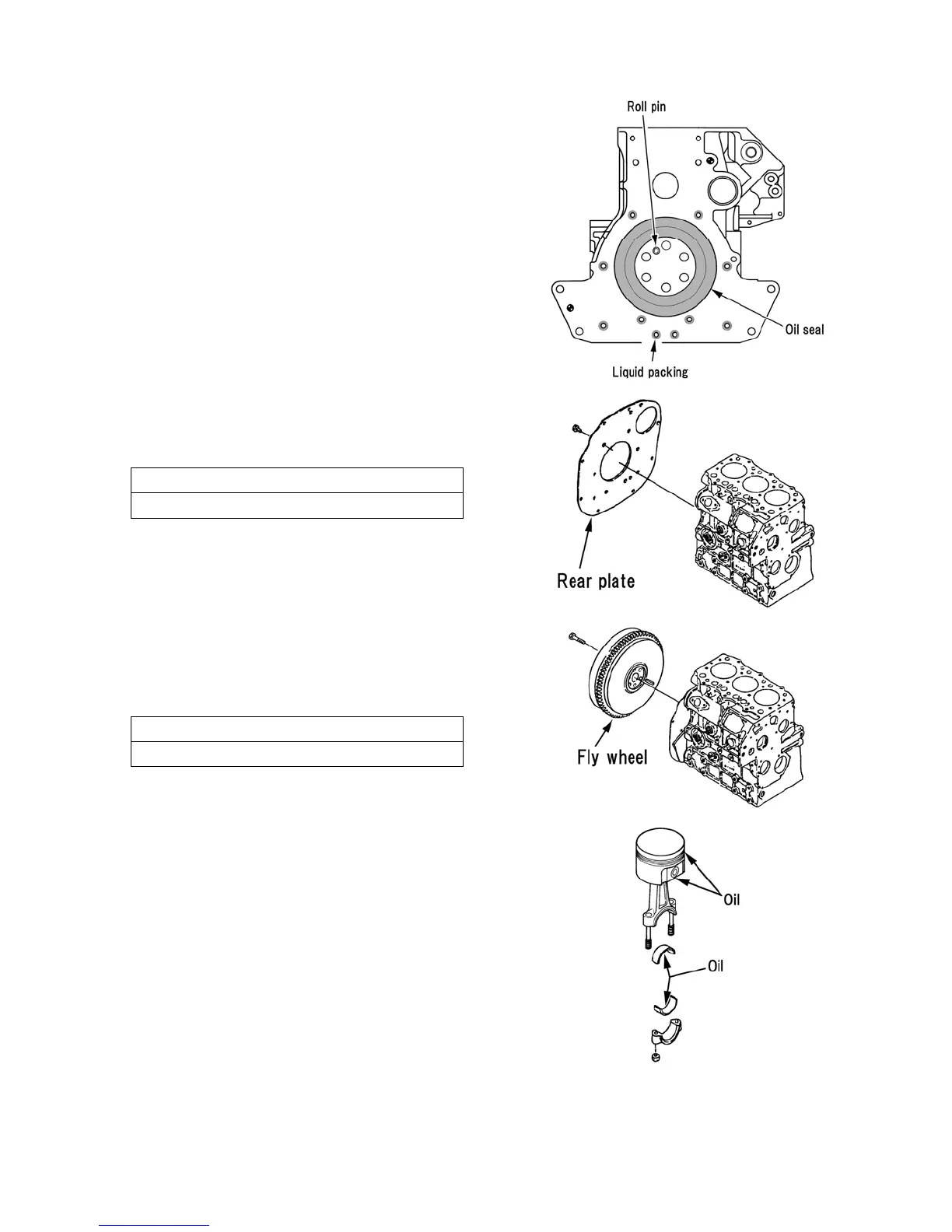

(4) Oil seal
(5) Rear plate
NOTE:
Apply the liquid gasket to around the M8 screw holes for
rear plate
Rear plate tightening torque:
22.6 – 28.4 N·m {2.3 – 2.9 kgf·m}
.
(6) Flywheel
Align the hole to the roll pin on the crankshaft.
Fly wheel tightening torque
73 – 78 N·m {7.4 – 8.0 kgf·m}
(7) Piston and connecting rod assembly
① Coat the metal surface, piston and piston ring with
engine oil.
154Y
155Y
156Y
157Y
