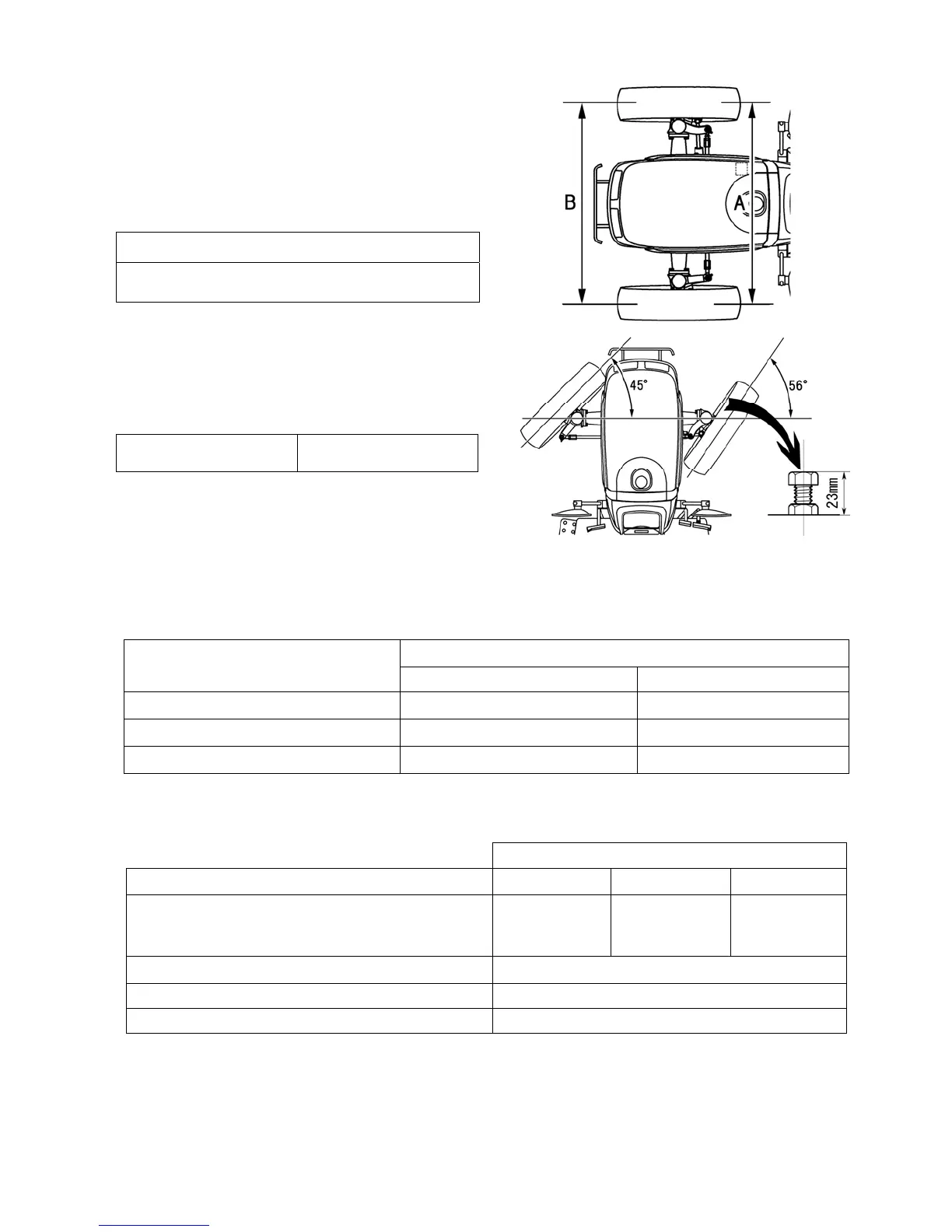

5. WHEEL ALIGNMENT
Inspection and service
1. Toe-in
When the steering link system is disassembled, perform the
wheel alignment by adjusting the length of the tie rod.
Standard assembling value
A－B = －5 ～ + 5 mm
(Inclination angle of king pin, caster and camber fixed)
NOTE: Tighten torque of the lick nut of the tie rod is 125
N
･
m (13kgf
･
m).
2. Steering angle
Standard assembling value
54－56°(inside)
(outside 45°)
NOTE : To ensure correct steering operation the stopbolt
should protrude a minimum of 23 mm from the
casing.
323Y
324Y
6. FRONT WHEEL
1) Specifications
ST330・ST333
Tire size Rim size
（AG）― Option
6-14 5J-14
（AG）― Standard
7-14 5J-14
（TURF）― Standard 25×8.50-14 7JA-14
2) Inspection of Tire
4WD
Tire size
6－14 7－14 25×8.5－14
1. Wear of tire (mm)
● Lag height when new
● Lag height in service limit
28
14
28
14
8.5
4
2. Tightening Torque of Disk N·m {kgf·m}
75－95 {7.7－9.6}
3. Rim run-out (mm)
Service limit within 5
4. Air pressure of tire
See Operator’s Manual
