Shibaura ST330 - Brake Adjustment; Rear Wheel

145

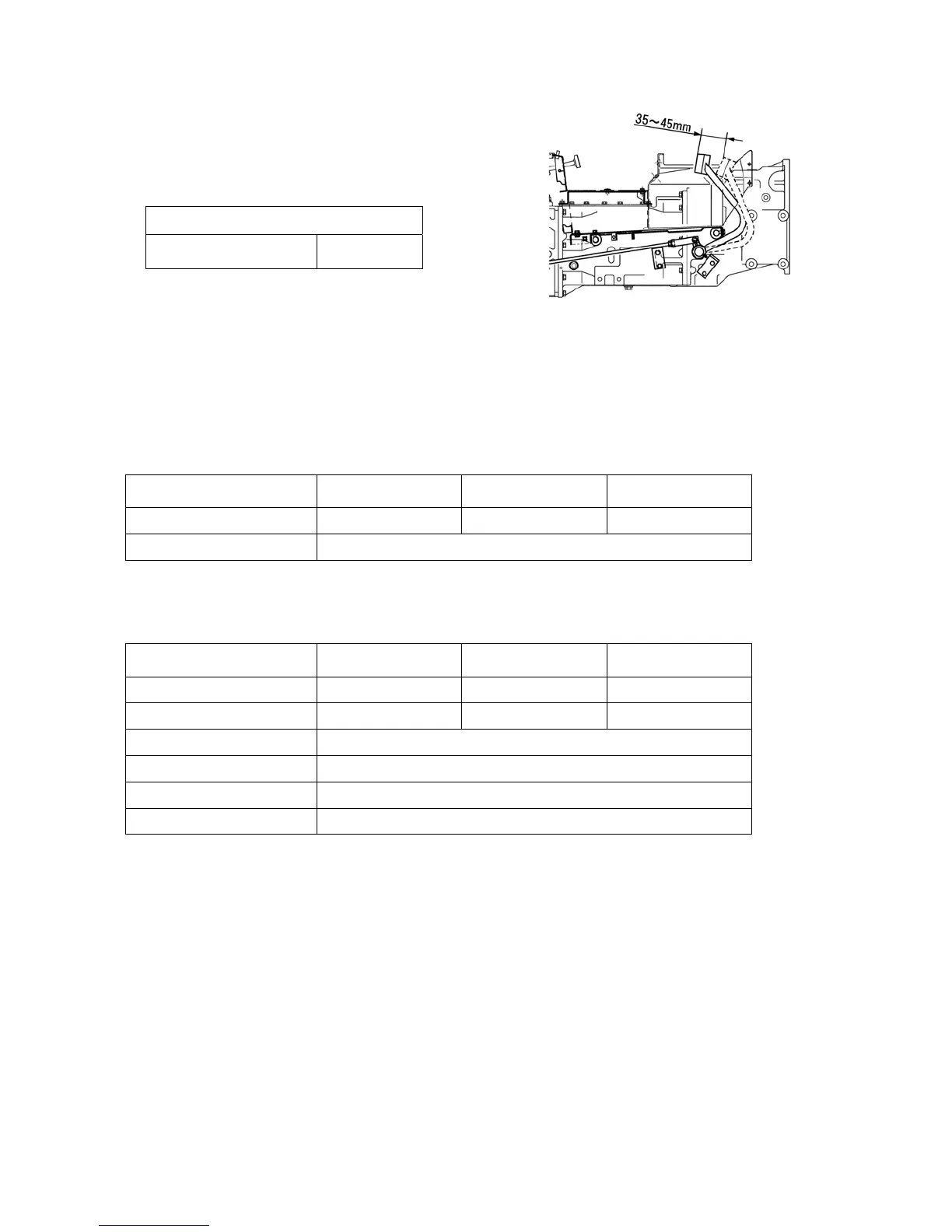

4. BRAKE ADJUSTMENT
Check the right and left pedals for sufficient operation
and adjust the play to the standard value with the right
and left brake rod.
Brake pedal free play
Standard value（on tread） 35－45 mm
NOTE：
When the brake is disassembled, adjust it after stepping
the pedal 4 - 5 times so that it seats in well.
450Y
5. REAR WHEEL
1) Specifications
Tire size
9.5x24 4PR（AG） 11.2x24 4PR（AG） 13.6-16 4PR（Tu rf ）
Rim size
W7 x 24 W10-24 Wl1-16
Tire type Nylon bias structure tube used
2) Check of tire
Tire size
9.5 x 24 11.2 x 24 13.6 - 16
Tire rug height (when new)
35 mm 35 mm 19 mm
Tire rug height (service limit)
18 mm 18 mm 9 mm
Axle-disk tightening torque
157～192 N･m｛16 – 19.6 kgf･m｝
Rim-disk tightening torque
157～192 N･m｛16 – 1919.6 kgf･m｝
Rim run-out (mm) Service limit 5
Air pressure See Operator's Manual
