118
2. TRANSMISSION 2 FOR 9×3 MODEL
（Refer to“1－5 Removal of outside” for the transmission 2 separating method）

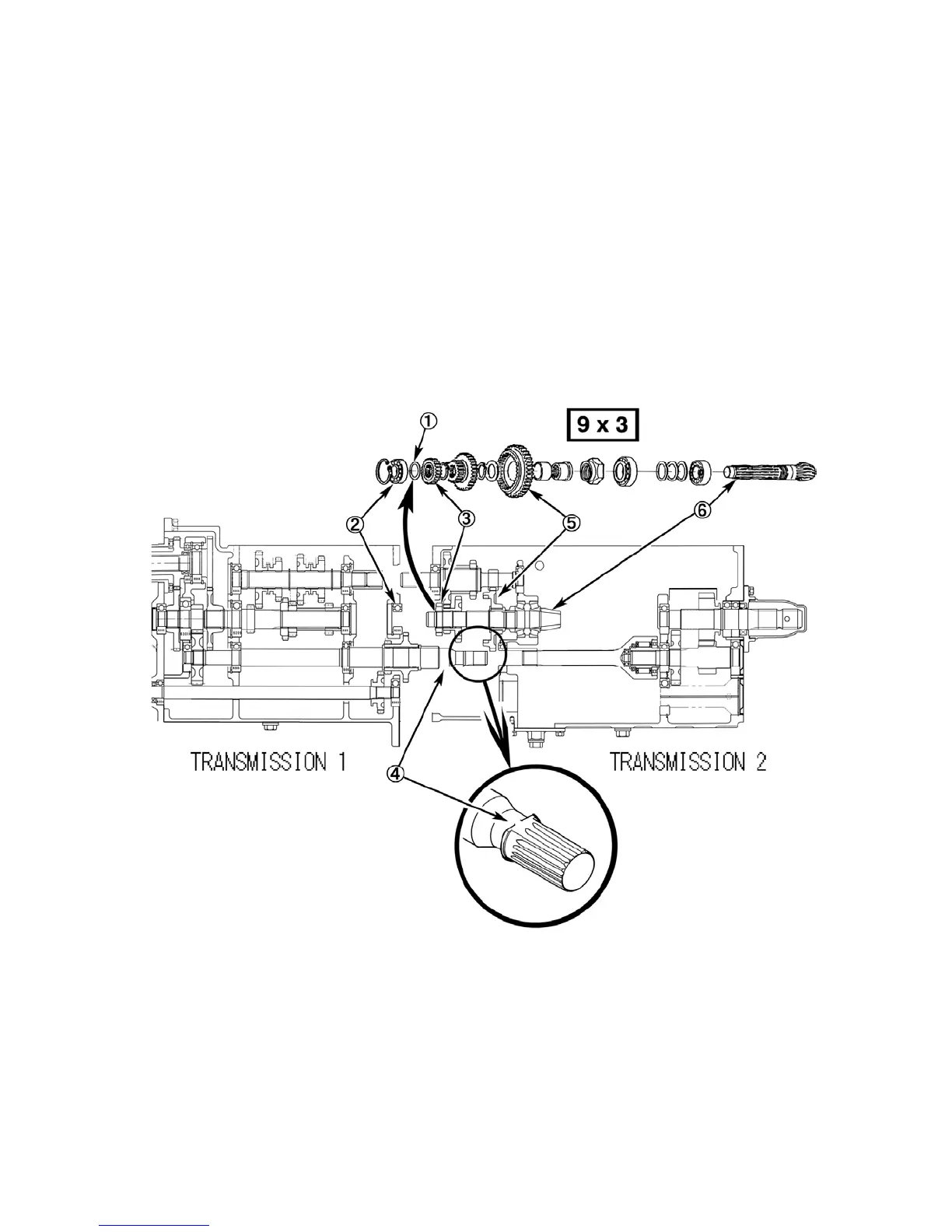

NOTE:
1. Keep the shims, 1, between the bearing, 2, and 4WD fixed gear, 3, when separating the transmission 1 and
transmission 2
2. Turn the flat face of the PTO countershaft, 4, toward the range counter gear, 5, on the drive pinion shaft, 6, to
avoid the interferences when separate the transmission 2 from the transmission 1.
3. Inspect the each gears backlash refer to “2) Inspection” in this section before disassemble the transmission 2.
403-1Y
