173

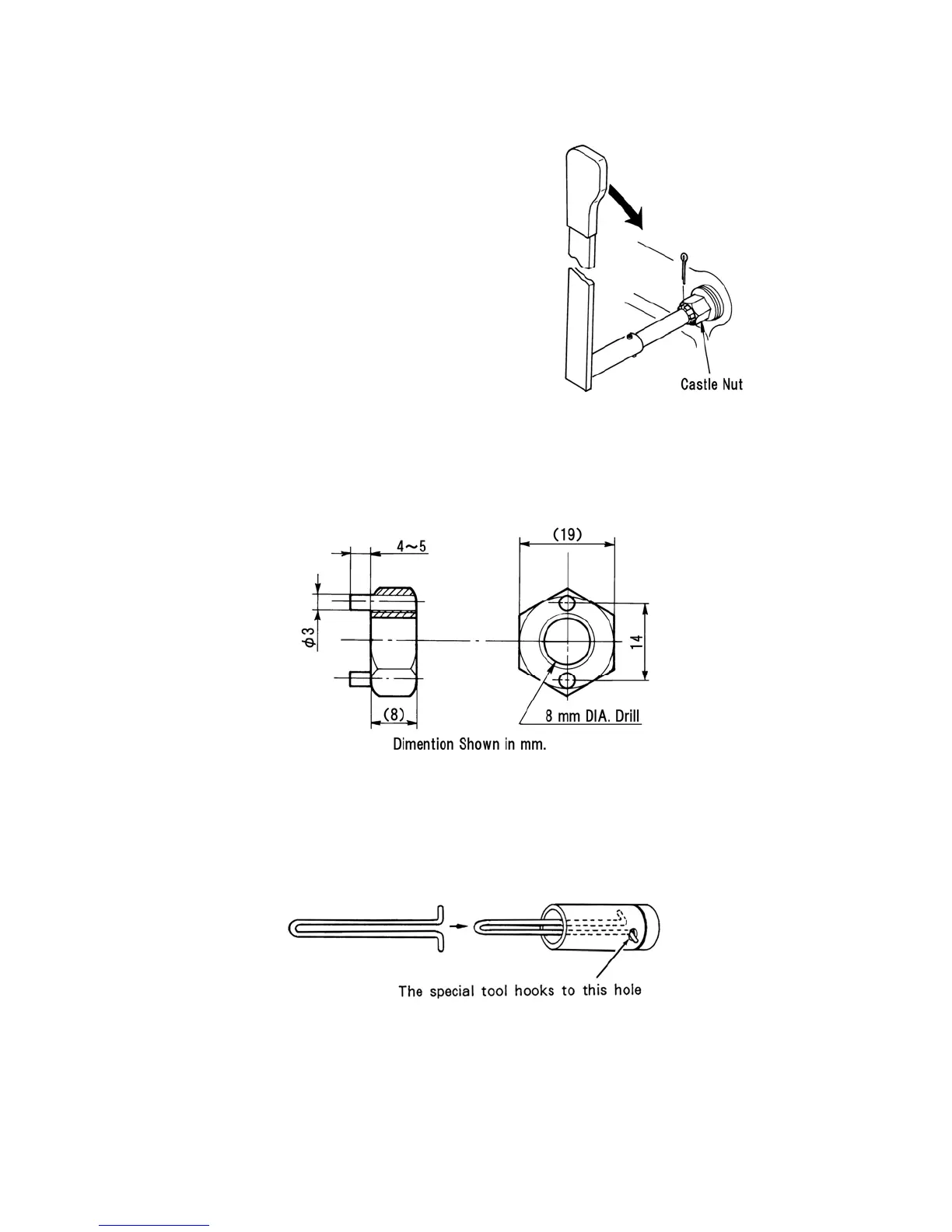

(3) Adjust the lever operating force.
Remove the sprit pin and adjust with the castle nut so
that the operating force for the control lever'(s) is 19.6
～29.4 N (2～3 kgf) at the lowering direction.
501Y
7) Special tool
Please make this special tool for removal and reassemble the lowering valve seat (3),Figure 494Y.
502Y
Please make this special tool for removal the check valve seat (5), Figure 495Y made by 2～3 mm diameter wire with
proper shape.
503Y
