2. Disassembly

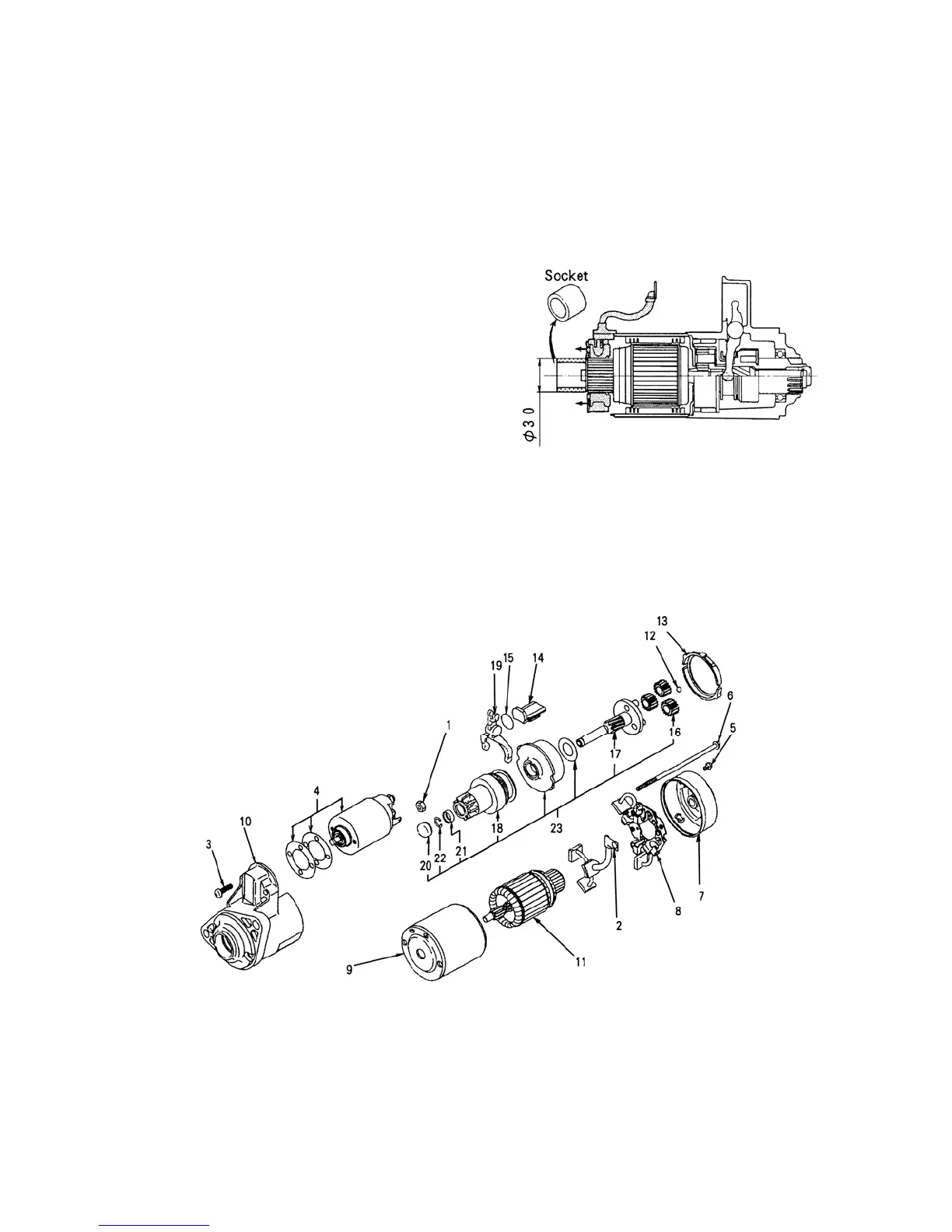

Reference Figure 614Y.
NOTE：
1.
Before disassembling starter, be sure to
put match marks at two locations
(switch and yoke) so that any possible
mistake can be avoided.
2.
Do not clamp yoke in a vise or strike it
with a hammer during repair operations.
Permanent magnets attached to yoke
could be broken and yoke dented or
deformed if mishandled.
(1) Remove switch terminal nut (l) and
disconnect connecting wire (2).
Remove screws (3) securing switch and
remove switch and plunger (4).
(2) Remove brush holder securing screws
(5) and through bolts (6).
Remove rear bracket (7) but do not
remove brush holder (8).
(3) Install a socket (outer diameter 30mm)
on the armature commutator, see Figure
613Y.
Then slide the brush holder (8) onto the
socket.
Leave the socket in position in the
brush holder for inspection and
reassembly. Socket
613Y
(4) Slide yoke (9) away from front bracket
(10).
(5) Remove armature (11) and ball (12).
Do not lose ball when removing the
armature.
614Y
