80

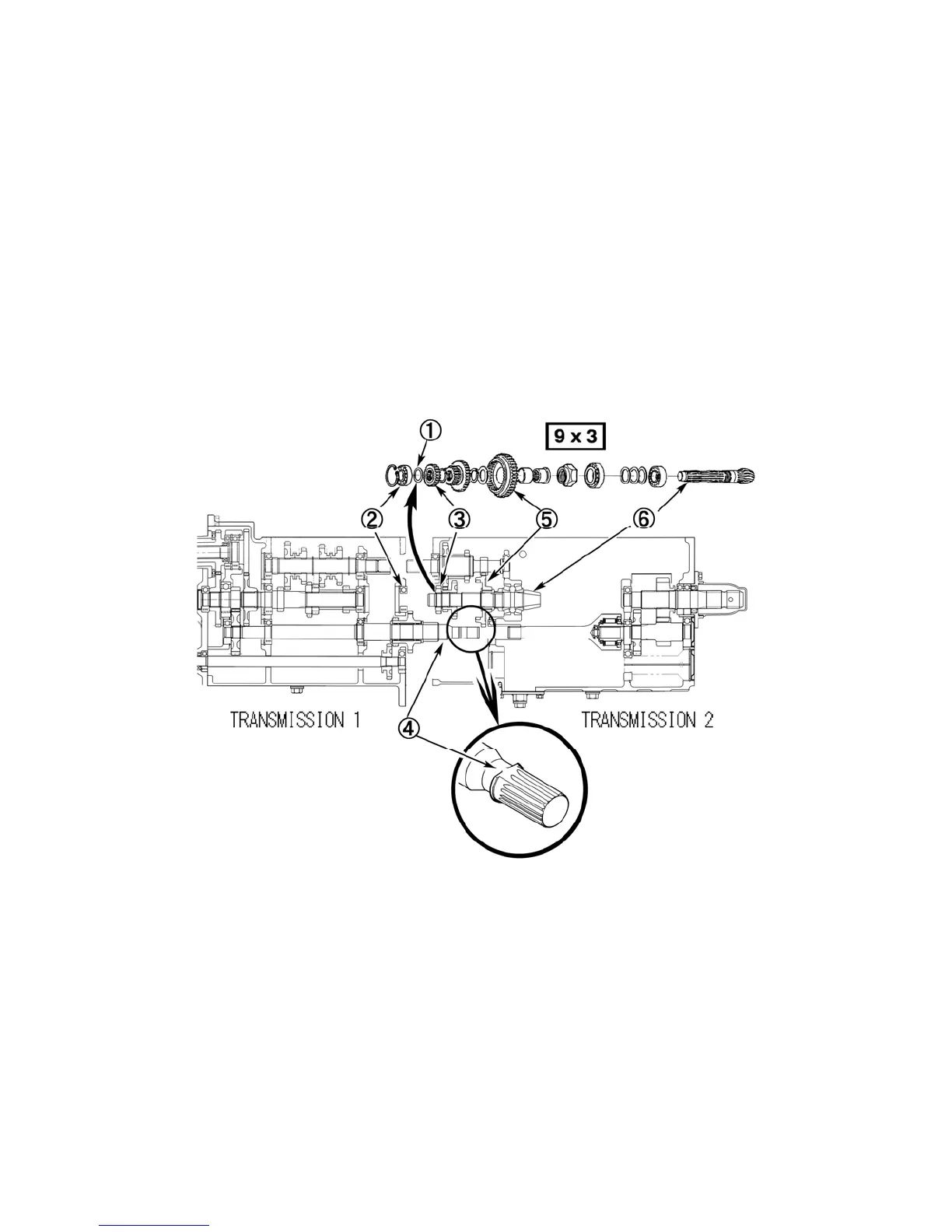

NOTE:
1. Keep the shims, 1, between the bearing, 2, and 4WD fixed gear, 3, when separating the transmission 1
and transmission 2
2. Turn the flat face of the PTO countershaft, 4, toward the range counter gear, 5, on the drive pinion
shaft, 6, to avoid the interferences when separate the transmission 2 from the transmission 1.
Inspect the each gears backlash refer to ā2) Inspectionā in this section before disassemble the
transmission 2.
342-1Y
