79

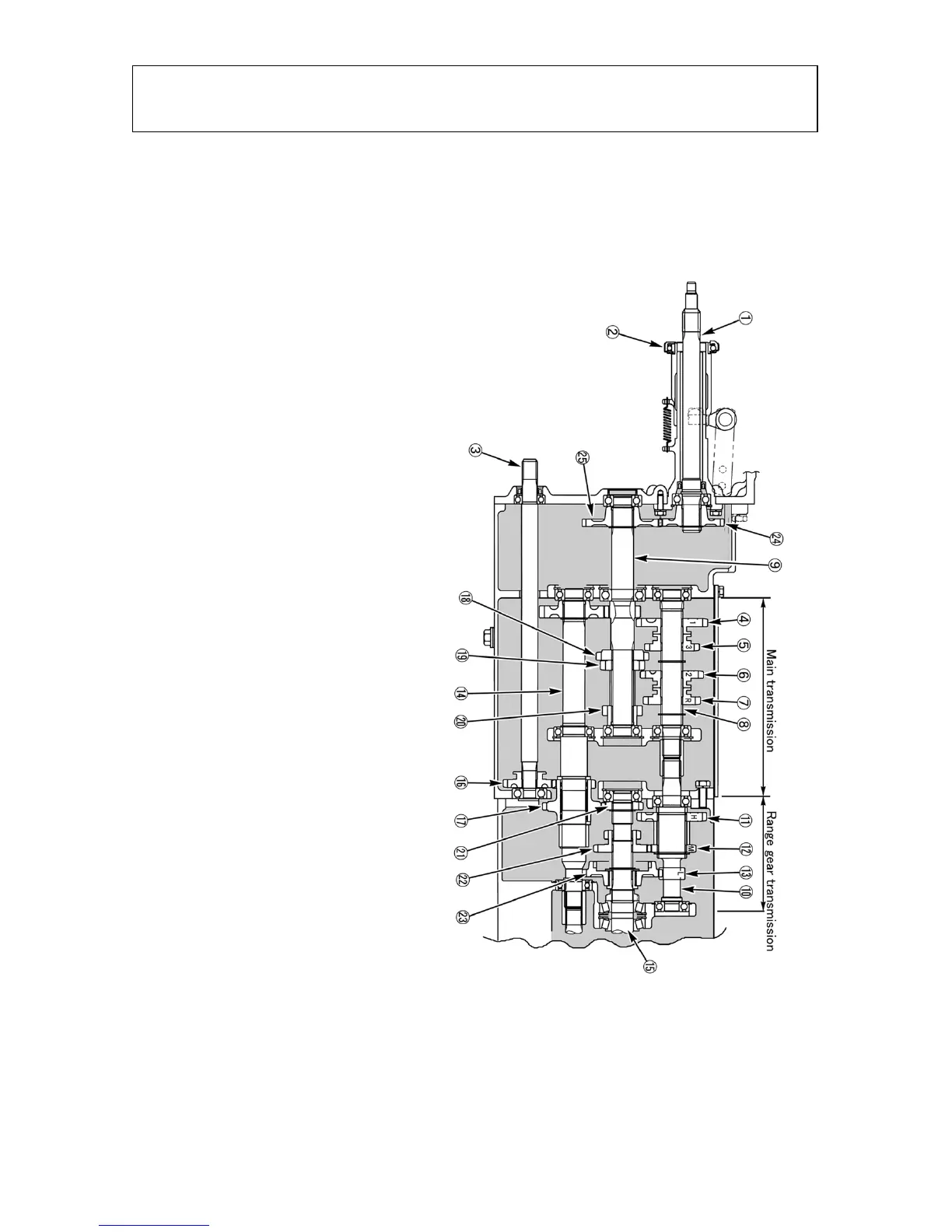

1. SECTIONAL VIEW
342Y
3－3 Transmission 1 for 9×3
① Input shaft ② Clutch reliese bearing ③ 4WD Drive shaft ④ Main slide gear (1
st
)
⑤ Main slide gear (3rd) ⑥ Main slide gear (2
nd
)
⑦ Main slide gear (Reverse)
⑧ Counter shaft ⑨ Main counter shaft ⑩ Range main shaft ⑪ Range gear (High) ⑫ Range gear (Middle) ⑬ Range gear (Low) ⑭ PTO counter shaft
⑮ Drive pinion ⑯ 4WD slide gear ⑰ 4WD counter gear ⑱ Fixed gear (3
rd
)
⑲ Fixed gear (2
nd
)
⑳ Fixed gear (Reverse)
○
21
4WD Fixed gear
○
22
Range sliding gear
○
23
Range counter gear
○
24
Fixed gear
○
25
Fixed gear
