123

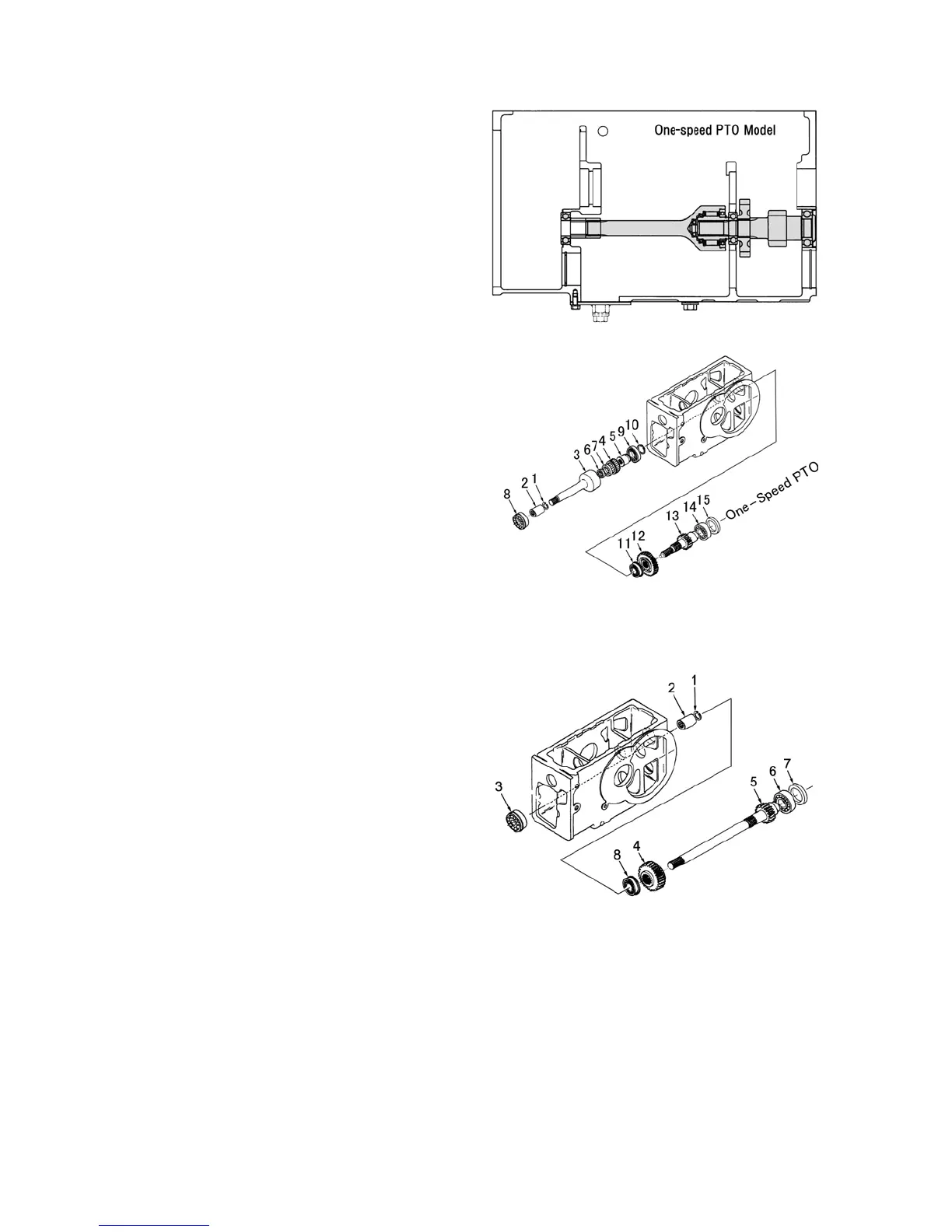

(7) PTO counter shaft：9×3 with one – speed PTO
Model
① Remove the bearing (6205 NR).
② Remove the middle PTO counter shaft (together
with one-way bearing, joint, bearing, and snap
ring.)
③ Drive out the rear PTO counter shaft rearwards
together with the seal cover and bearing.
④ Remove the bearings and fixed gear remaining in
the case if necessary.
(7) PTO counter shaft：9×3 with two – speed PTO
Model
① Remove the bearing (6205 NR), 3.
② Tap the PTO counter shaft to rear-ward and
remove the seal cover, 7, bearing, 6, PTO counter
shaft, 5, to rear-ward.
③ Take out the fixed gear, 4, and bearing, 8, from the
housing
.
417Y
416Y
419Y
1. Snap ring (φ20)
2. Joint
3. PTO counter shaft
4. One-way bearing
5. Joint
6. Bearing (6001)
7. Bearing (6807)
8. Bearing (6505NR)
9. Bearing (16007)
10. Snap ring (φ35)
11. Bearing (6205NR)
12. Fixed gear
13. PTO counter shaft
14. Bearing (6206)
15. Seal cover
1. Snap ring (φ20)
2. Joint
3. Bearing (6505NR)
4. Fixed gear
5. PTO counter shaft
6. Bearing (6305R)
7. Seal cover
8. Bearing (6205RNR)
