(13) Differential ass'y
① Remove 8 bolts, 18, tightening the bevel gear, 17, and separate the differential cage, 8.
② Remove the pin, 7, and remove the gears, 10 and 11, thrust washer , 9 and 13, shafts, 14 and 15, and joint, 16, in the
differential cage, 8.
437Y

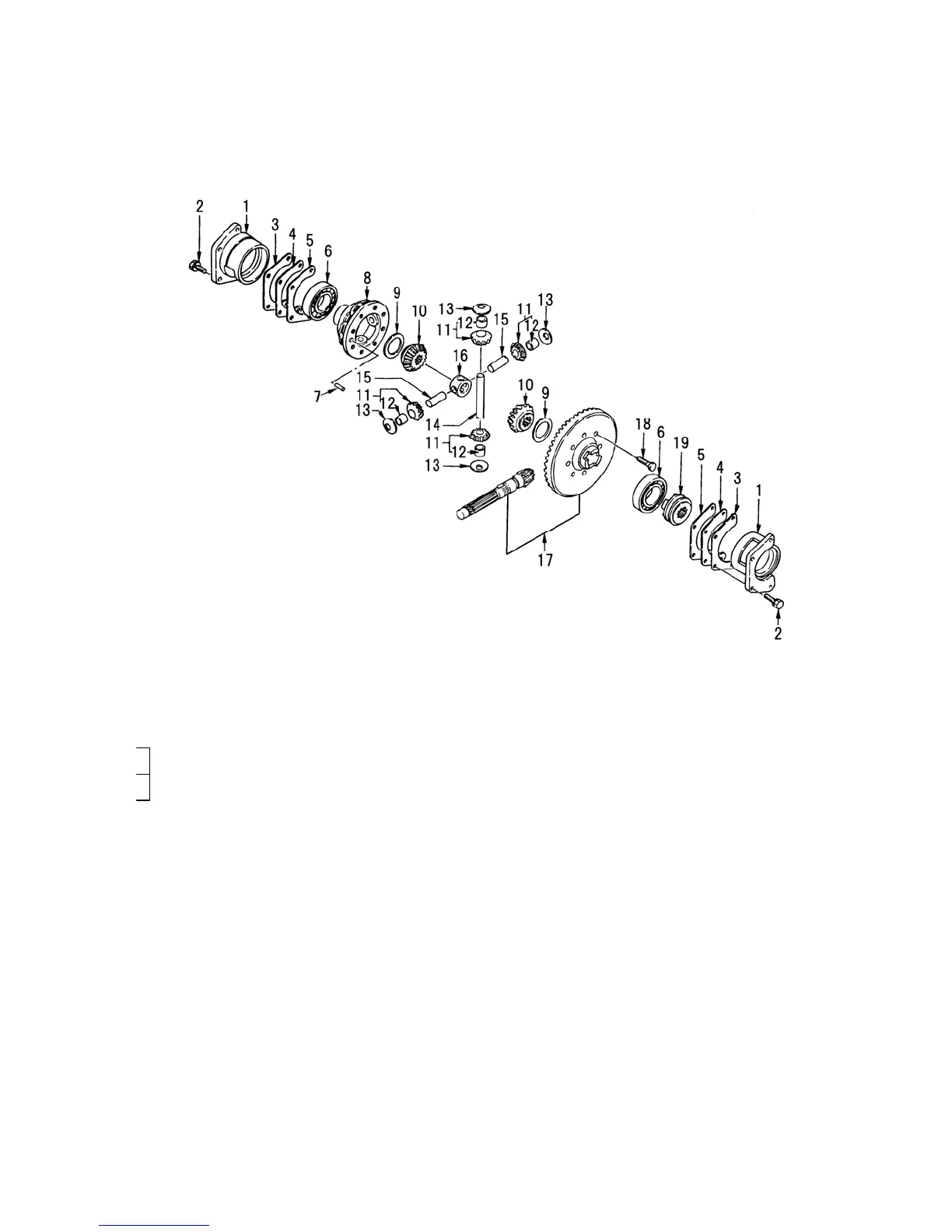

1. Differential support
2. Bolt
3.
4. Shim (0.1 t, 0.3 t, 0.5 t)
5.
6. Bearing (6010.)
7. Pin
8. Differential cage
9. Thrust washer
10. Differential gear
11. Differential pinion ass'y
12. Bush
13. Thrust washer
14. Pinion shaft
15. Pinion shaft
16. Joint
17. Ring gear ass'y
18. Special bolt (which coat the chemicals)
19. Differential lock clutch
