165

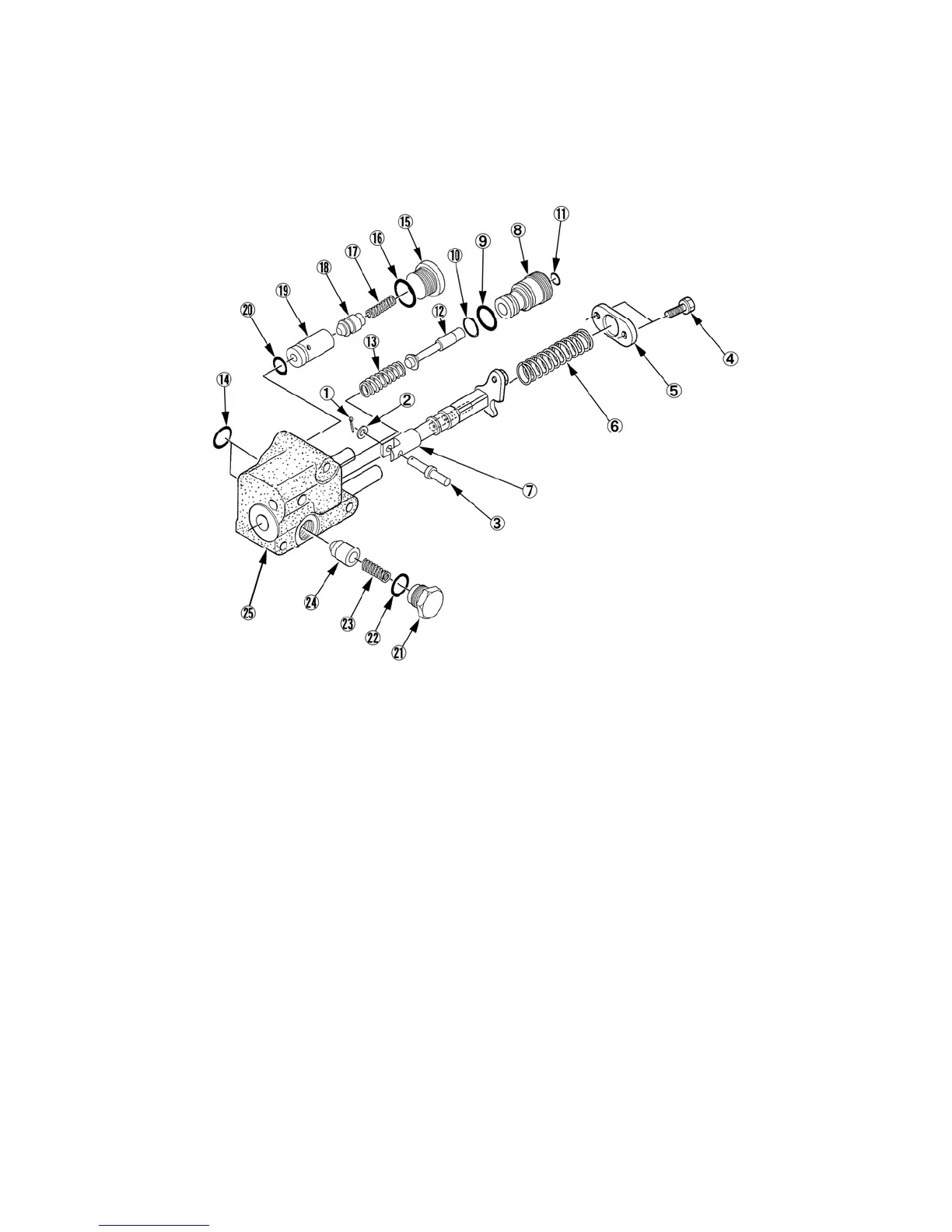

5. CONTROL VALVE ASSEMBLY (for lifting/lowering implement)：No. 340016350
1) Name of components.
488Y
NOTE:
Any parts will not be provided as a piece of part, please refer to the PARTS LIST.
1. Split pin
2. Washer
3. Pin
4. Bolt
5. Cap
6. Spring
7. Spool
8. Val v e s e at
9. O-ring
10. O-ring
11. O-ring
12. Lowering valve
13. Spring
14. O-ring
15. Plug
16. O-ring
17. Spring
18. Check valve
19. Valve seat
20. O-ring
21. Plug
22. O-ring
23. Spring
24. Shut-off spool
25. Valve body
