193
Removal
1. Disconnect the negative ( － ) battery
cable from the battery.
2. Disconnect the wiring harness lead, from
the fuel shutoff solenoid.
3. Using a pair of pliers, carefully remove
the fuel shutoff solenoid from the
engine.

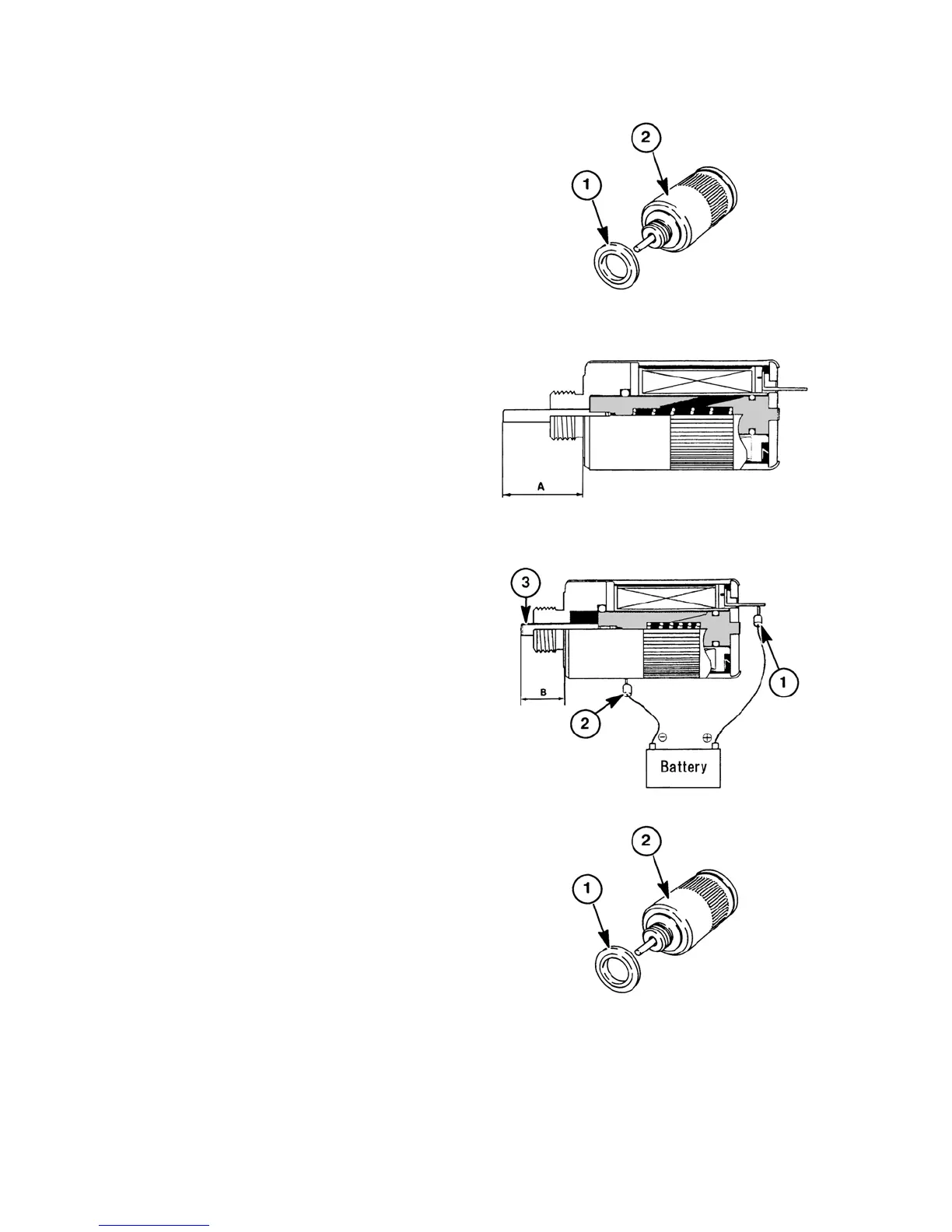

4. Remove and discard the sealing washer,
1, which seals the solenoid, 2, to the
engine.
Test i ng
1. Using a suitable measuring device,
measure the protrusion distance, "A", on
the solenoid. The distance should
measure between 25.5 - 26.4 mm. If the
distance is not within these
specifications, the solenoid is defective
and needs replaced.
NOTE:
When connecting the 12-volt power supply to
the solenoid body, be sure paint is the
removed from the body. Otherwise, the power
will not be transferred to the solenoid.
2. Use jumper wires to connect the positive
(+) terminal of a 12-volt power supply
to the solenoid lead, 1. Connect the
negative terminal of the 12-volt power
supply to the solenoid body, 2. The
plunger, 3, should retract into the
solenoid body.
3. Using a suitable measuring device,
measure the protrusion distance, "B" on
the solenoid. The distance should
measure between 11.5 - 14.5 mm.
If the distance is not within these
specifications or the plunger does not
retract, the solenoid is defective and
needs replaced.
Installation
Assembly of the engine stop solenoid
generally follows the disassembly in reverse,
and installs a new sealing washer, 1, on the
solenoid, 2.
534Y
535Y
536Y
537Y
