Disassembly
105Y

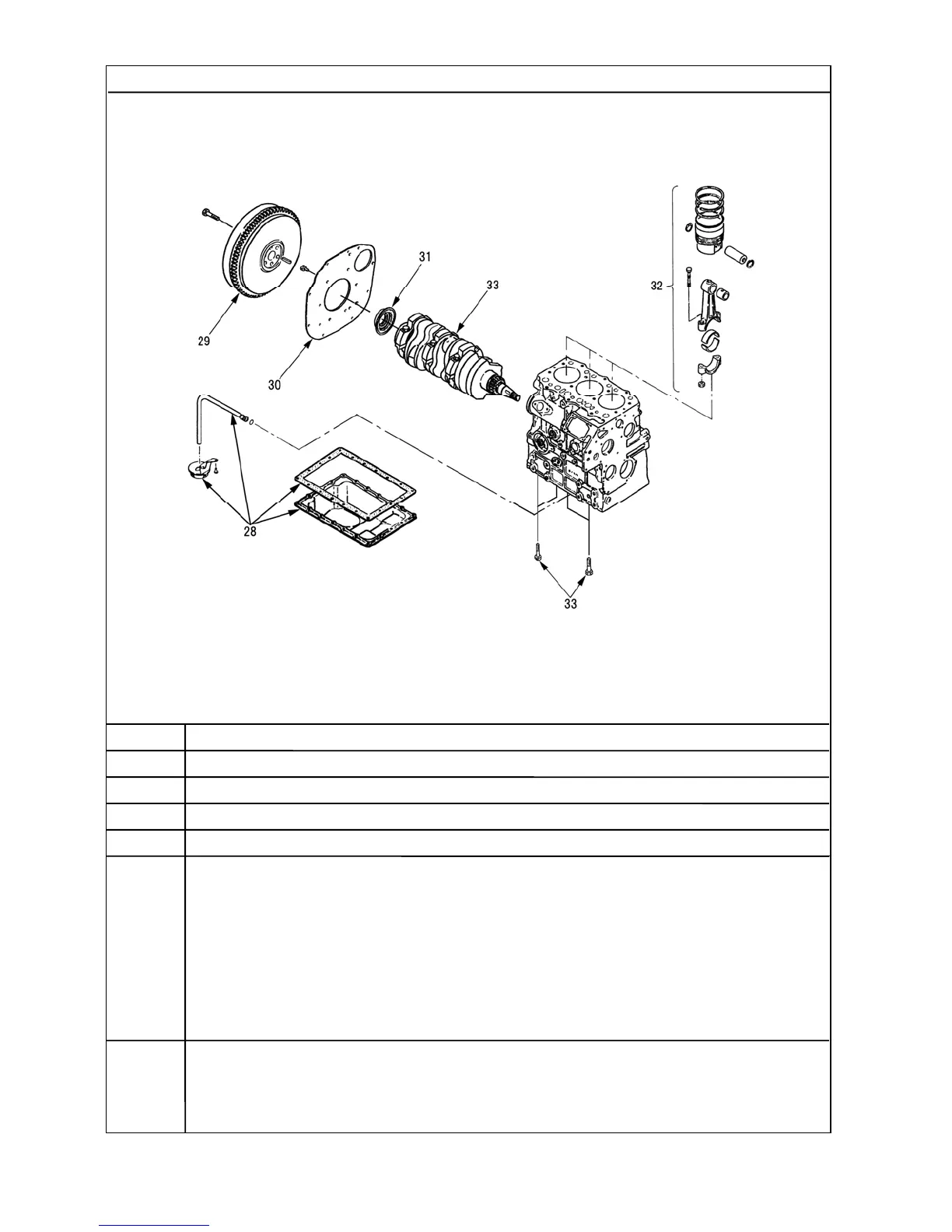

Order Disassemble Parts Name
28 Oil pan ・Gasket・Suction filter ・Suction pipe
29 Fly wheel
30 Rear plate
31 Oil seal
32 Piston and connecting rod assembly
NOTE :
1. Before extracting piston, remove the carbon deposit from the TDC in the
cylinder .
2. Place the connecting rod, cap and bearing removed in order of the
cylinders.
33 Crank shaft and bearing holder assembly
NOTE : Remove the four bolts, and draw out the crankshaft and bearing holder
assembly as a set.
To Next Page
