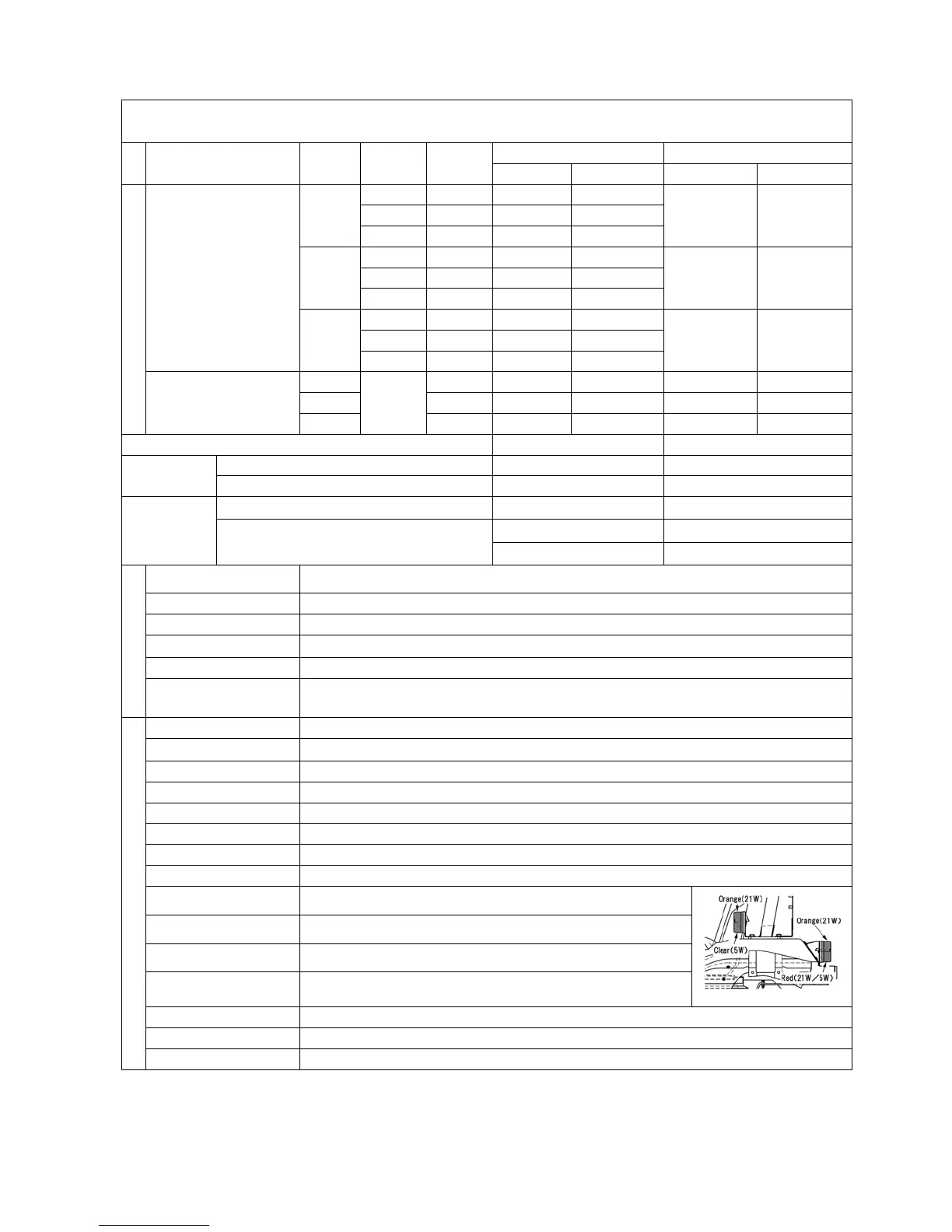

The ground speeds are engine speed at 2800 rpm with 11.2-24 Rear Tires On Manual Transmission.
The ground speeds are engine speed at 2800 rpm with 13.6-16 Rear Tires On Model HST Transmission.
Range Main
Gear
Position
Manual Transmission Hydrostatic Transmission
AG Tire Turf Tire AG Tire Turf Tire
Ground Speeds
Forward (km/h)
L
1 1st 1.30 1.17
0 – 5.59 0 – 5.63
2 2nd 1.94 1.73
3 3rd 2.78 2.49
M
1 4th 4.14 3.70
0 – 13.07 0 – 11.69 2 5th 6.11 5.46
3 6th 8.79 8.24
H
1 7th 10.58 9.47
0 – 25.18 23.84 2 8th 15.65 14.00
3 9th 23.04 20.07
Reverse (km/h)
L
R
R1 1.94 1.73 0 – 3.92 0 – 3.94
M R2 6.11 5.46 0 – 9.15 0 – 8.18
H R3 15.65 14.00 0 – 17.63 0 – 16.69
No. of PTO Speeds 1 or 2 1
1-speed
PTO Model
Engine speed for 540rpm Rear PTO (rpm) 2455 2500
Engine speed for 2000rpm Mid PTO (rpm) 2420
2-speeds
PTO Model
Engine speed for 540rpm Rear PTO (rpm) 2485
－
PTO speed at engine speed 2800 rpm
(rpm)
608
－
893
－
Capacities
Fuel Tank 30 Liters
Engine oil Less Filter 4.0 Liters, with Filter Change 4.5 Liters
Cooling Water 5 Liters
Transmission Oil
32.5 Liters (HST) , 30.5 Liters (9 ×3)
Hydraulics Transmission Oil used in common
Front Axle Gear Case
3.1 Litters
(Front differential gear case 1.5 litters and final reduction gear case 0.8 Liters×2)
Electrical System
Grounding Negative (—)
Battery
12 Volt, 55 amps. (HST), 12 Volt, 64 amp. (9×3)
Starting Motor 12 V — 1.7 kW
Glow Plug 11 V — 9.5 A
Alternator 12 V — 40 A
Regulator 13.8 V — 14.8 V (Adjusted voltage)
Head Light 65 W/55 W
Horn 12 V
Brake Lamp 21 W
003Y
Small Lamp 5 W
Tail Lamp 5 W
Flasher Lamp 21 W
Each Warning Lamp 3.4 W
High Beam Indicator 1.7 W
License Lamp 5 W
