Input/output modules
Hardware - SIMADYN D 5-33
Edition 12.2004
5
5.4 Expansion module IT42
6DD1606-4AB0
The IT42 expansion module provides
analog and binary inputs and outputs
The expansion module is inserted on a CPU module (PM5, PM6). A
maximum of 2 expansion modules ITxx can be inserted on a CPU module.
An ITxx occupies 1 slot (in addition to the mounting slot of the CPU module
itself).
• 4 analog outputs
• 4 integrating, high-resolution analog inputs
(V/fc voltage/frequency conversion)
• 4 analog inputs (ADU)
• 16 binary outputs
• 16 binary inputs
T filter
Driver
50 mA
driver
Latch
D
A
D
A
D
A
D
A
+
-
M
U
X
A
D
Dual
port
RAM
IT42
controller
Local expansion bus
P5 M P15 N15
Electrical isolation
16 binary inputs
16 binary output
Analog outputs
Analog inputs
UFC
UFC
.
.
.
UFC
UFC
Counter 1/2
Counter 3/4
12 bit
16 bit
Integrating
analog inputs
External trigger
inputs
Contr. bus
Data bus
Address bus

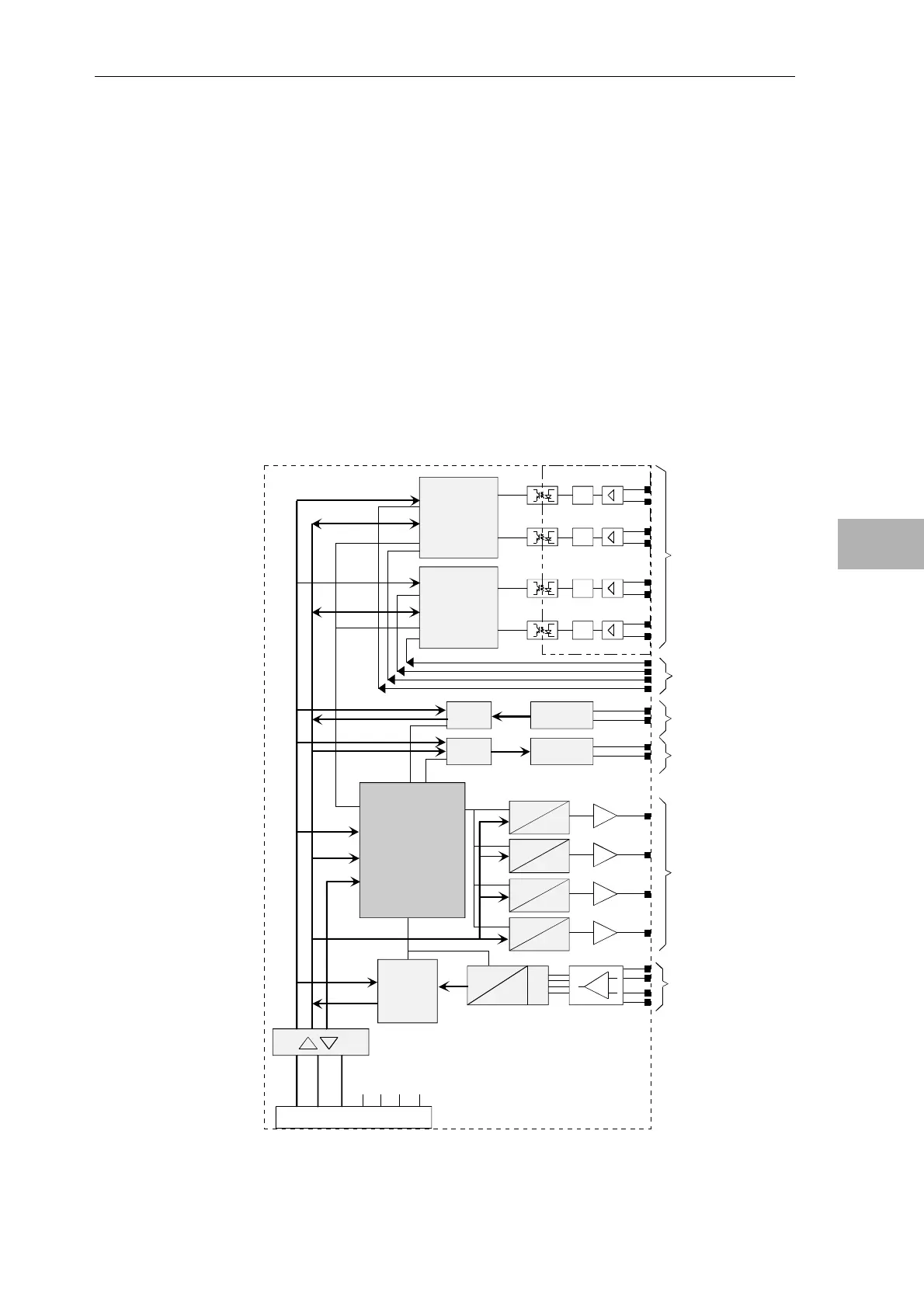

Fig. 5-8 Block diagram of IT42
Order No.
Description
Inputs and outputs
Block diagram
