8.9.3 Application information
The interface modules can be mounted vertically and horizontally.
They are snapped onto a mounting rail, .
Further information on EMC and ambient conditions, refer to Section,
General technical data“
8.9.4 Pin/terminal assignment X1/X2
The screw terminal numbers of X2 are identical with the ribbon cable
connector numbering corresponding to the pin arrangement.
Interfacemodule Minimum conductor
cross section for the
terminal block X2
Maximum conductor
cross section for the
terminal block X2
SU10, SU11, SU12 0,2 mm² 2,5 mm².
SU13 0,2 mm² 1,5 mm².
X1
1
2
3
23
24
X2
23
24
1
2
3
25
25
NC
26

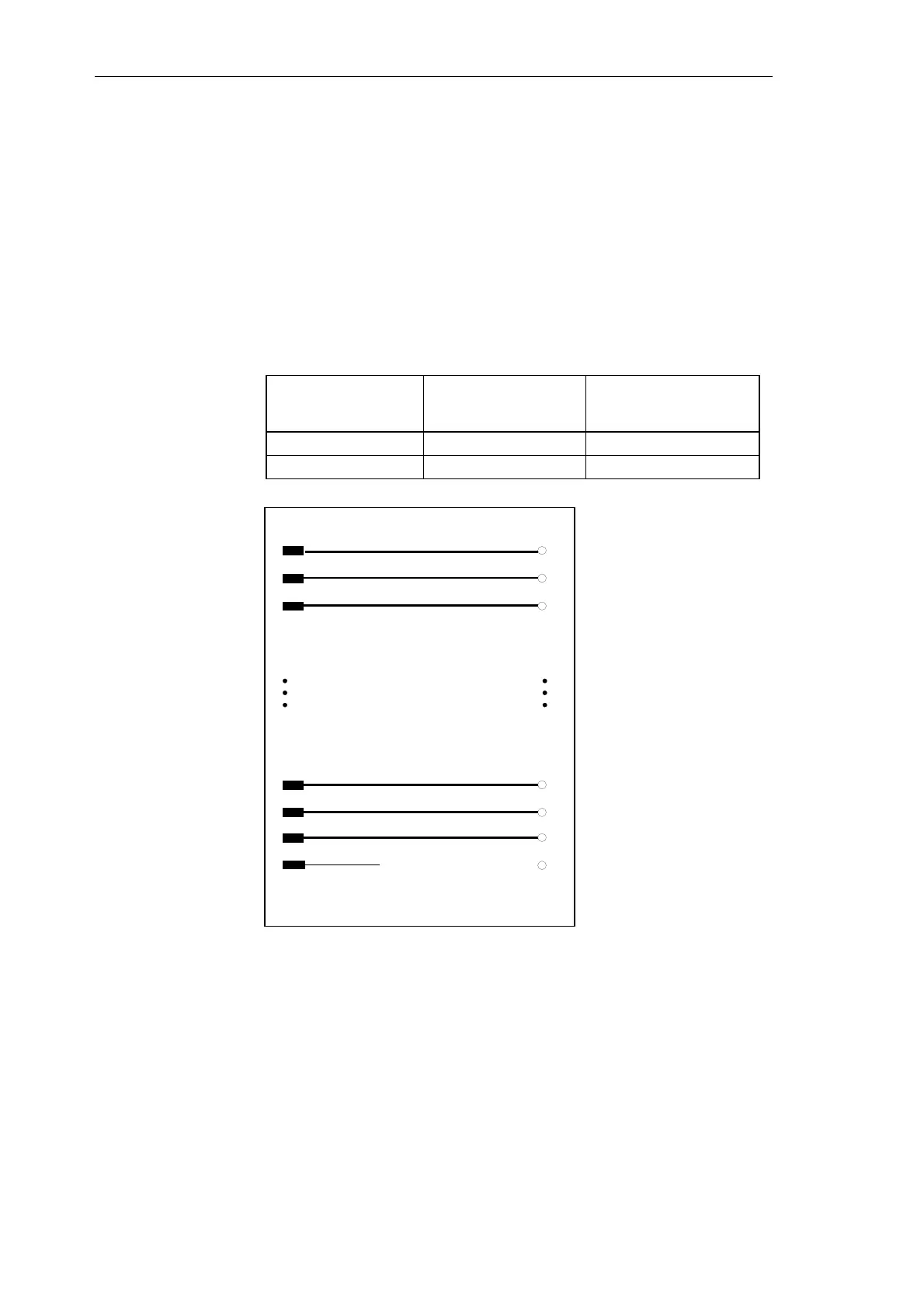

Fig. 8-17 Circuit diagram, SU10
Other information
Conductor cross
section
SU10
