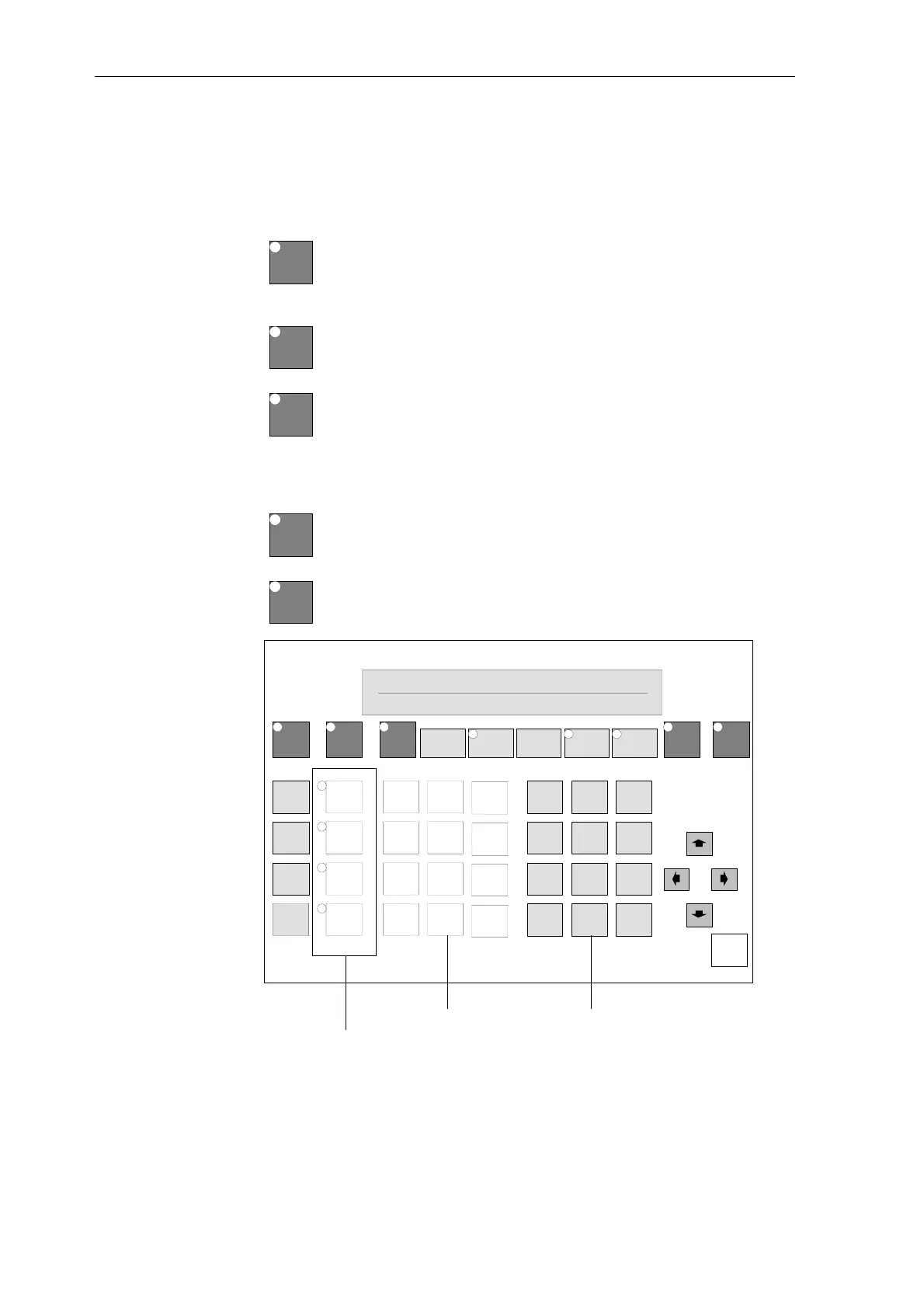

Operator control panel OP2
10-2 Hardware - SIMADYN D
Edition 03.2001
10.1 Function overview
The OP 2 is an operator control device for the SIMADYN D system. It offers
the following functionality:
MSG
Process data handling
Displays and processes up to 24 process data. 2 process
data are always displayed.
BIN
Binary value processing
Displays and processes up to 32 binary values
MSG
Message system
Autonomous message system for P32 messages from
SIMADYN D. Messages are saved, sorted according to the
time they were received, and can be deleted. Only one
message is displayed at any one time (max. 80 characters).
MSG
SYS
System message
Messages which come directly from OP2
SYSTEM
System operation
Changing and saving the basic function
SIEMENS
Numerical pad
Two-line display
40 characters per line
MSG BIN
SYSTEM
VAL
MSG
SYS
B1
B2
B3
B4
V1
V4
V7
V10
V2
V5
V8
V11
V3
V6
V9
V12
1
4
7
0
2
5
8
,
3
6
9
+/-
Enter
SEL SHIFT DIM CHG EPROM
Process data panels V1...V12
Binar
value ke
s B1..B4
PRN
DEL
ACT
OLD
SIMADYN OP 2
