Siemens SIMADYN D - Parameterization for the Printer

Operator control panel OP2
10-14 Hardware - SIMADYN D
Edition 03.2001

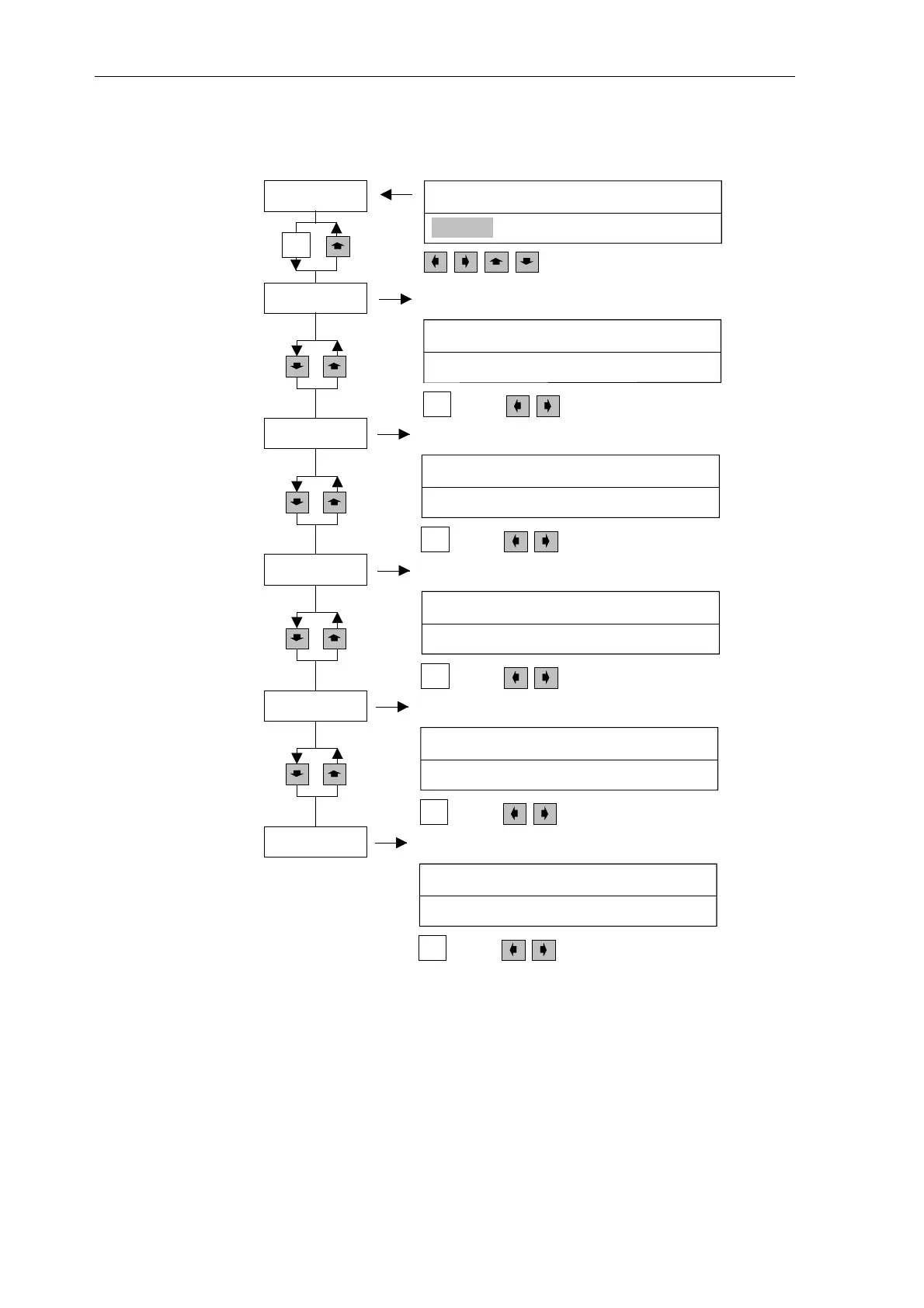

10.4.5 Parameterization for the printer
MESSAGE VALUE USS-INTERFACE
PRINTER END DISPLAY-OPTIONS
CURSOR
Function selection
PRINTER
Baud rate
Description:
Baud rate for the printer interface:
BAUDRATE (KBAUD) PRINTER
9, 6 2, 4 4, 8 9, 6
Enter
Transfer
Display:
Enter
CURSOR
Function selection
Data bits
Description: Character format, data bits (DATA BITS):
DATABITS PRINTER
8 7 8
Enter
Transfer
Display:
CURSOR
Function selection
Parity
Description:
Character format, parity (PARITY):
PARITY PRINTER
EVEN EVEN ODD
Enter
Transfer
Display:
CURSOR
Function selection
Stop bits
Description:
Character format, stop bits (STOP BITS)
STOP BITS PRINTER
2 1 2
Enter
Transfer
Display:
CURSOR
Function selection
LINE TYPE
Description:
Toggling the printer INTERFACE between a TTY-
and V24 connection
LINE TYPE PRINTER
TTY V24 TTY
Enter
Transfer
Display:
CURSOR
Function selection
