Communications support modules
Hardware - SIMADYN D 6-11
Edition 12.2004
6
6.1.2.2 Technical data
Slot assignment 1
Dimensions W x H x D [mm] 18.3 x 233.4 x 220
Weight approx. 0.3 kg
Rated voltage min. max. Typ. current drain
+5 V +4.75 V +5.25 V 0.5 A + current drain of the interface
modules
+15 V +14.4 V +15.6 V Current drain of the interface
modules
-15 V -15.6 V -14.4 V Current drain of the interface
modules

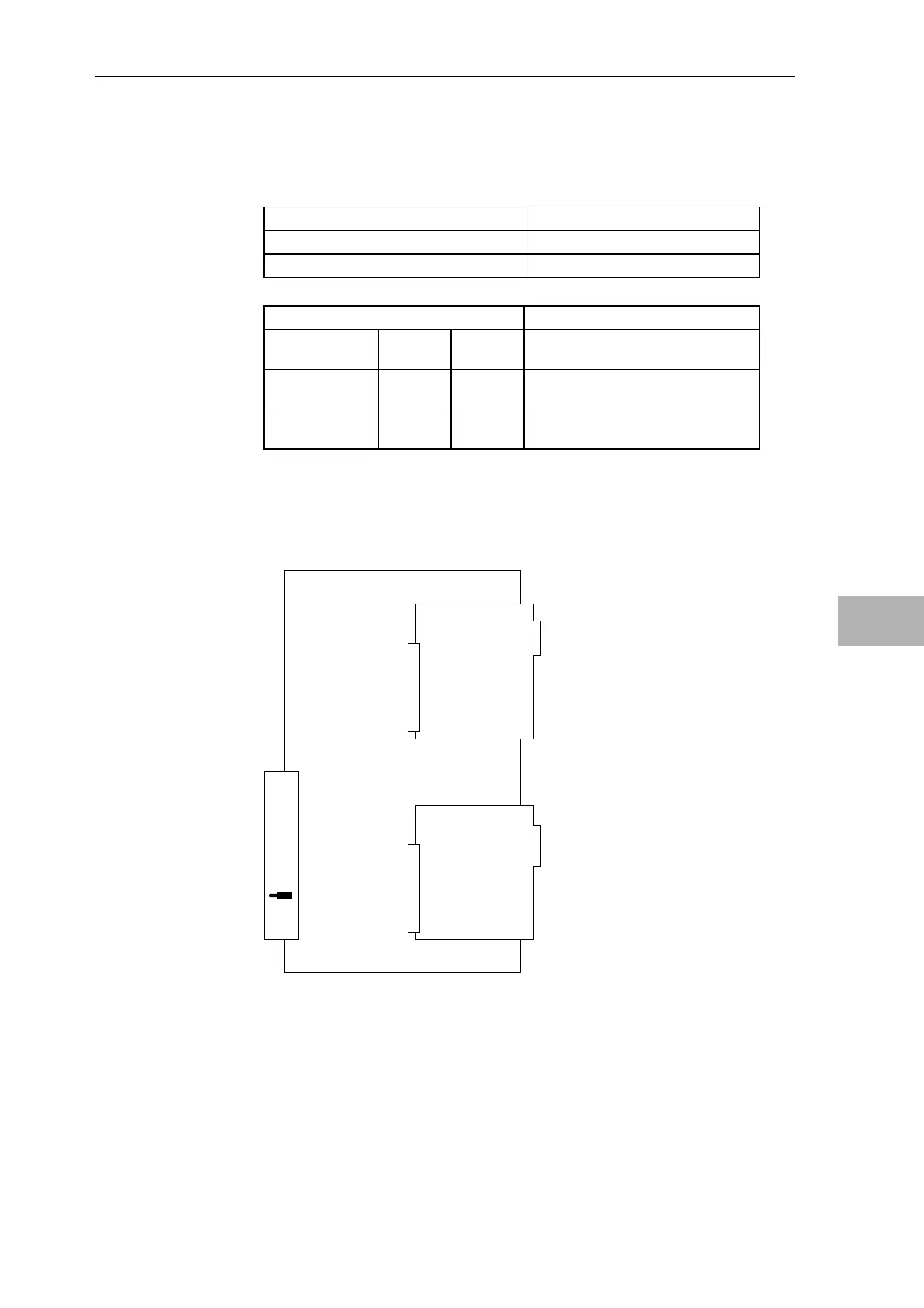

6.1.2.3 Connection diagram
L-
Bus
Communikations
module CB..
Communikations
module CB..
CS8
X02
X01
Fig. 6-4 Possibilities of connecting communication modules
