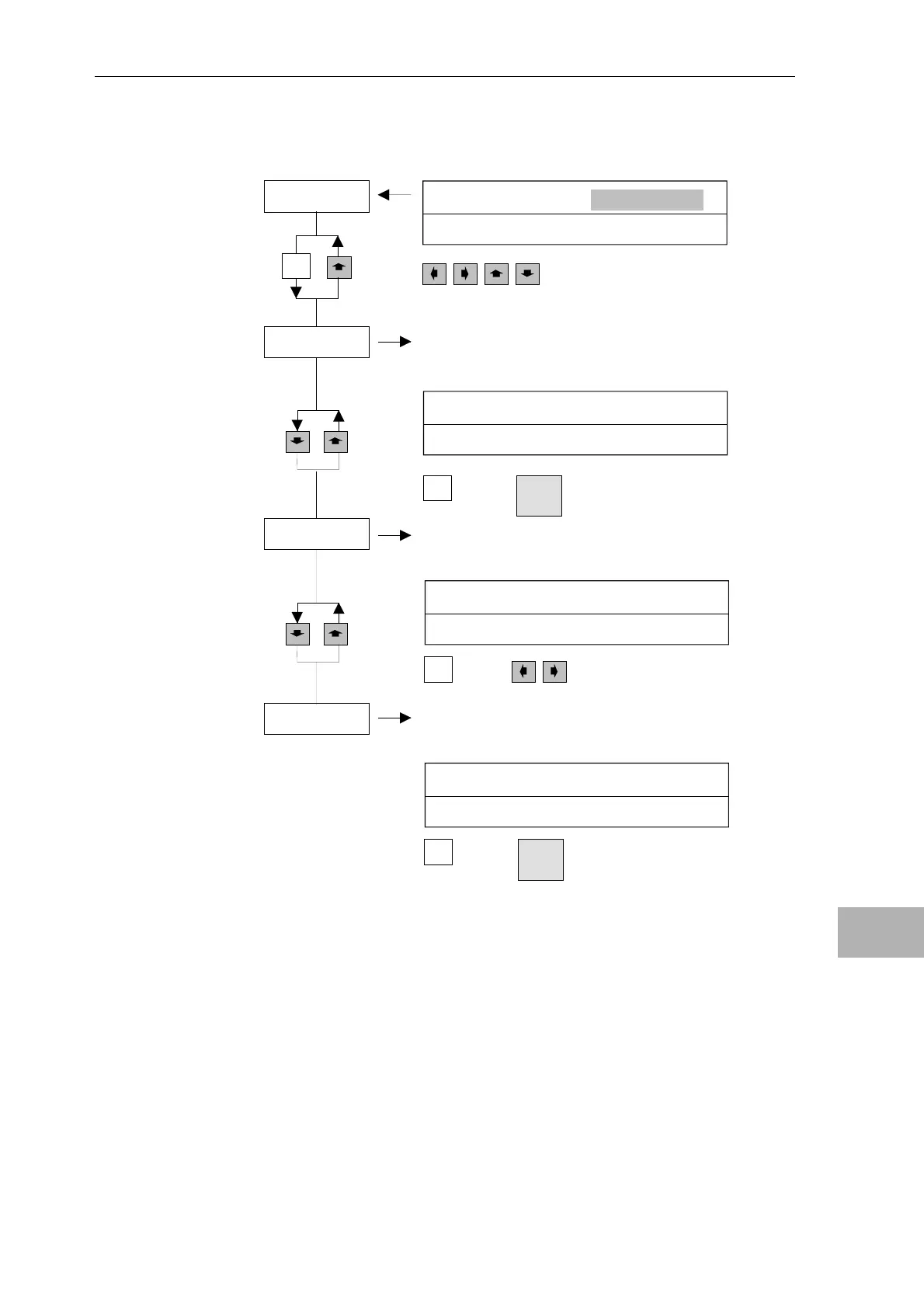

10.4.4 Parameterizing for the USS interface
MESSAGE VALUE USS-INTERFACE
PRINTER END DISPLAY-OPTIONS
CURSOR
Function selection
Station-Address
Baudrate
Description:
Node number (station address)
The node number (station address) on the USS bus is defined using this
parameter. If a node number (station address) is not entered, then the
device does not establish a connection to SIMADYN D.
STATION-ADDRESS USS-INTERFACE
7 0..31
Numerical
keypad
Enter
Transfer
Value input
Display:
Enter
Delay Time
Description:
Baud rate of the USS bus
BAUDRATE (KBAUD) USS-INTERFACE
9,6 9, 6 19, 2 93, 75 187, 5
Enter
Transfer
Display:
Description:
Cycle time monitoring of the USS MASTER
DELAY-TIME (ms) USS-INTERFACE
100 0...100
Numerical
keypad
Enter
Transfer
Value input
Display:
USS-Interface
Area 1
CURSOR
Function selection
To Next Page
