General technical data
Hardware - SIMADYN D 1-7
Edition 08.2005
1

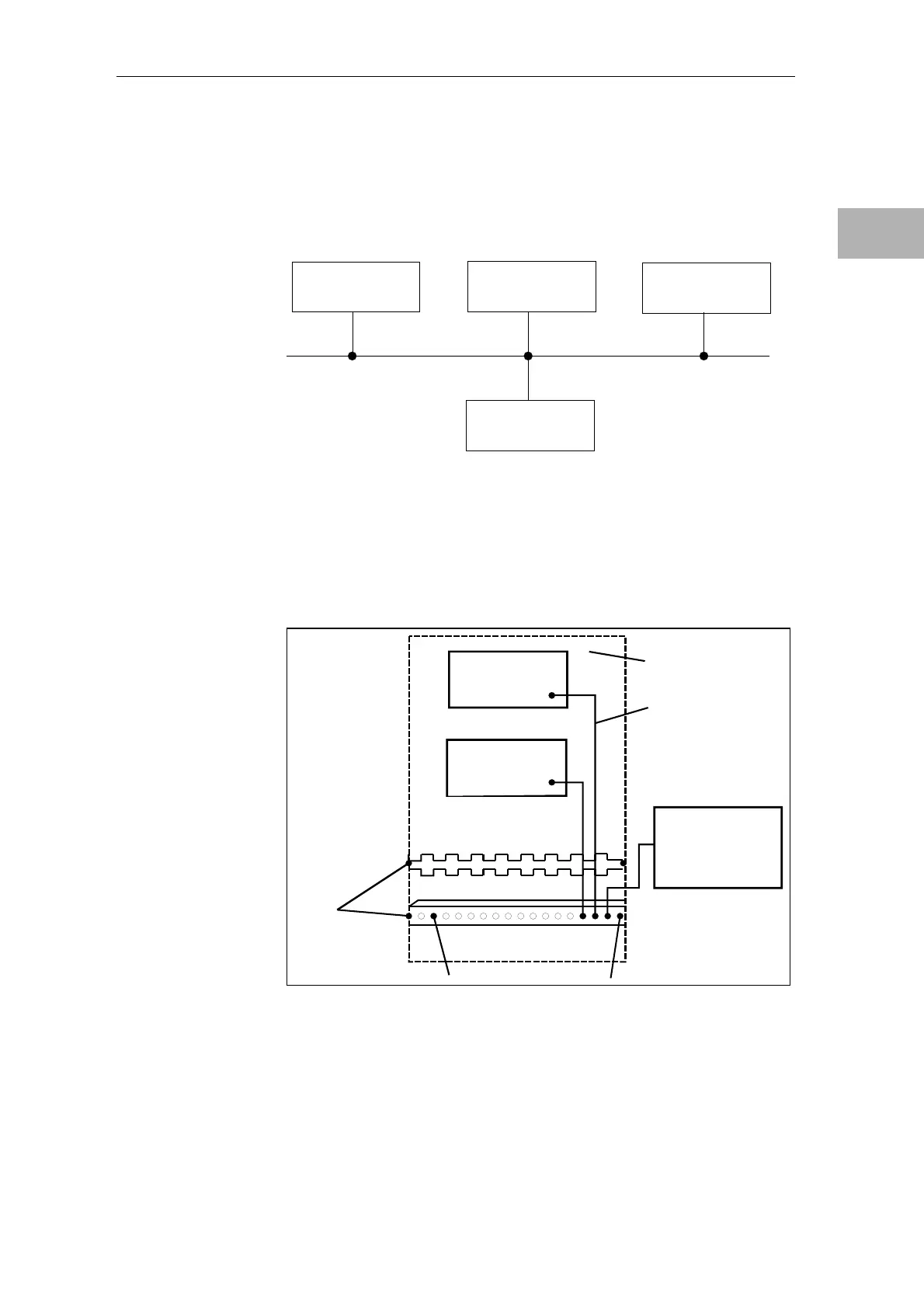

1.1.8 Principle when connecting components
All of the components (subracks, power supplies etc.), which are
connected using signal cables, must also be connected with potential
bonding cables (exception: Components with fiber-optic cable
connections).
Subrack
A
Potential bondin
conductor
EBG
Subrack
B
Subrack
C
1.1.9 Potential bonding rail
A potential bonding- or grounding rail must be provided in each cabinet to
allow simple wiring.
All of the internal and external components must be connected to this
potential bonding- and grounding rail.
SIMADYN D
A
SIMADYN D
B
Schaltschrank
Switching cubicle
< 2 m
LEISTUNGS-
KOMPONENTEN
POWER
COMPONENTS
fest mit Schrankholm
verbunden
connected fixed
with cubicle beam
Basic circuit
