Program memory modules / Interface modules
Hardware - SIMADYN D 8-13
Edition 04.2011
8
8.4.2 Application information
The interface module can be mounted both vertically and horizontally.
Further information on EMC and ambient conditions, refer to Section
„General technical data“
A typical application is shown in the following diagram:

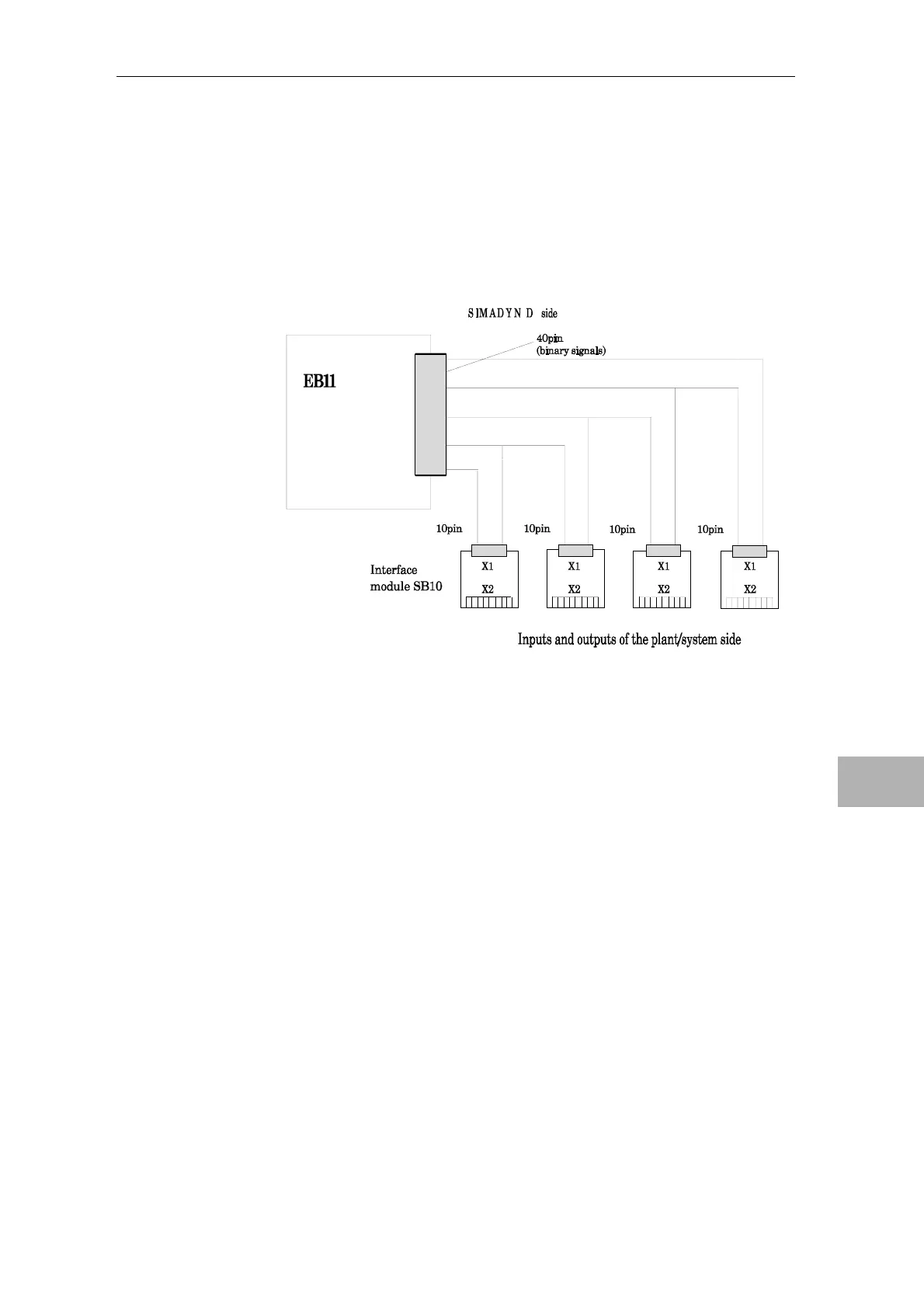

Fig. 8-6 Application example for SB10 interface module at the binary input-,
output module EB11
The binary signals of the plant/system side are connected directly with
the SIMADYN D modules via the interface module. A ribbon cable is
used (refer to the Chapter Plug in cables).
