Program memory modules / Interface modules
Hardware - SIMADYN D 8-37
Edition 04.2011
8
8.8.2 Application information
The interface module has a ribbon cable connector X1 to connect the
output signals of the SIMADYN D system (refer to the Chapter Plug in
cables), as well as a terminal strip X2 to connect the plant/system
signals.
The interface module may only be mounted vertically due to the power
loss which must be dissipated.
Further information on EMC and ambient conditions, refer to Section
"General technical data“!
!
CAUTION
No more than three binary outputs may be simultaneously short-circuited
due to the maximum permissible power loss per interface housing.

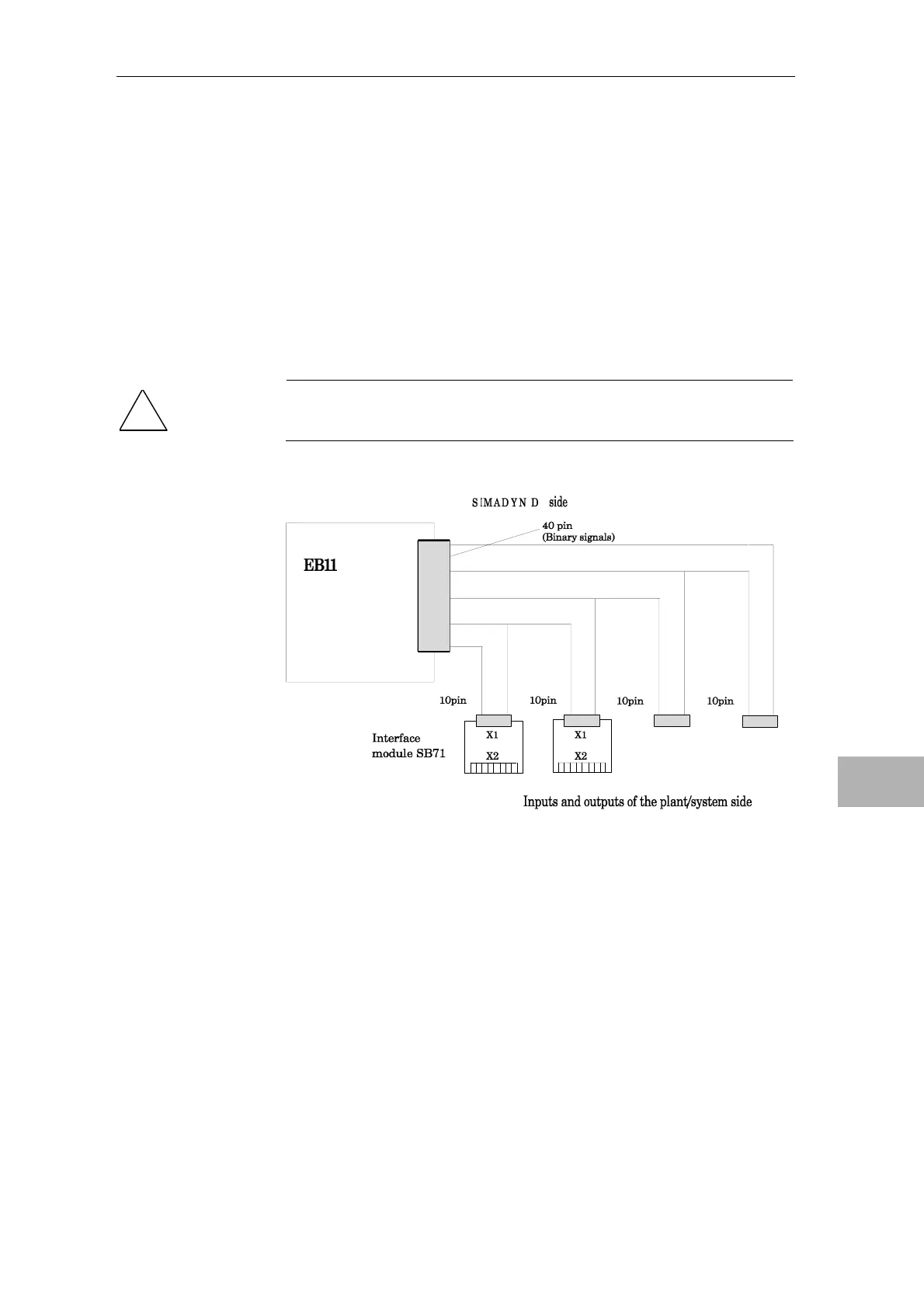

The following diagram shows a typical application:
Fig. 8-15 Application example for interface module SB71 at binary input-, output module
EB11
