Program memory modules / Interface modules
Hardware - SIMADYN D 8-5
Edition 04.2011
8
Eingang 1
Ausgang
R-1 R-2
U
2K2
Eingang 2
Schirm

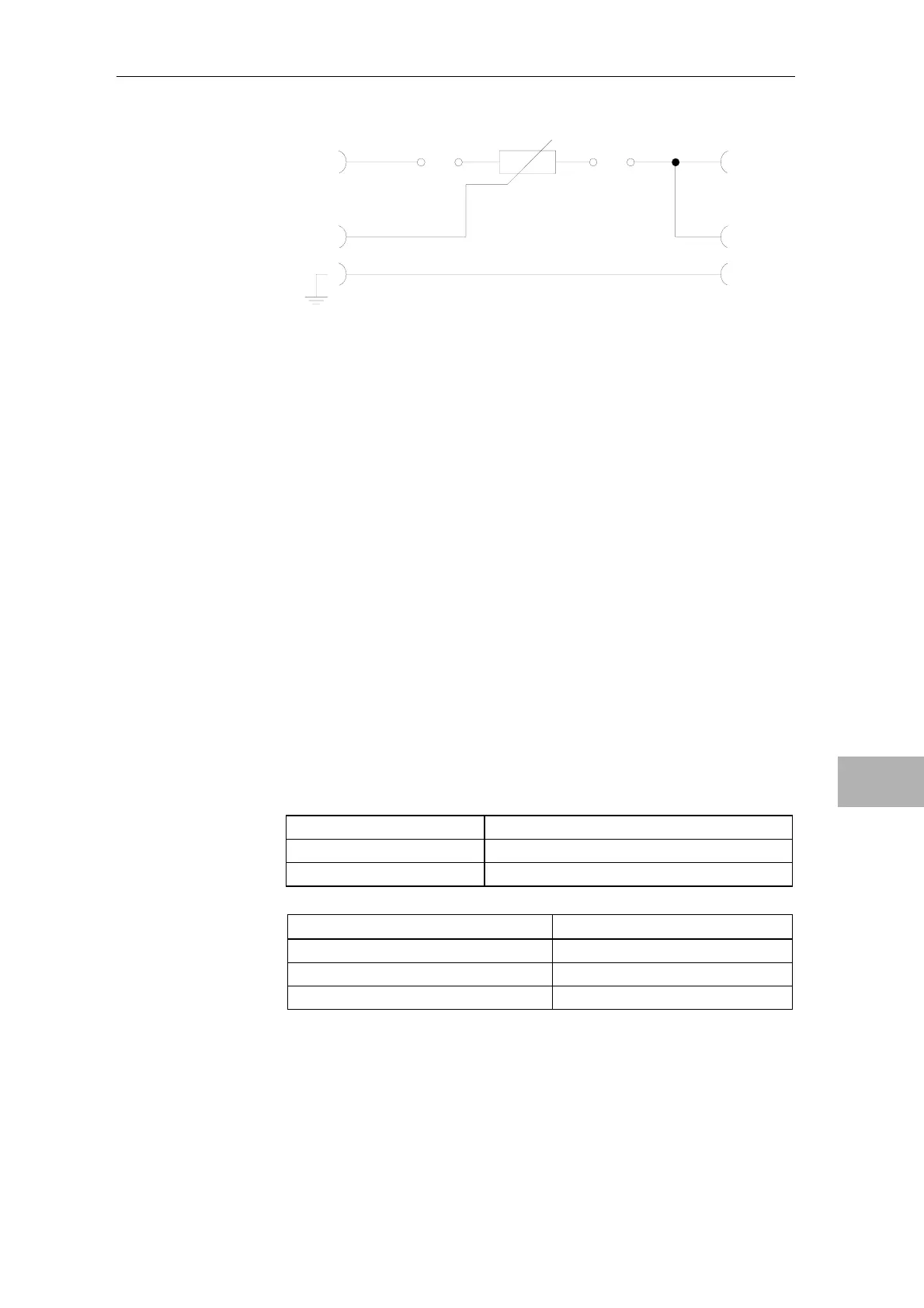

Fig. 8-2 Wiring the voltage divider on the interface module
8.2.1 Application information
The circuits on the interface module are defined by the user. Here are
some of the examples of the circuits which can be implemented:
• filters:
− low-pass
− high-pass
− bandpass
− bandstop
− RC element
• voltage divider
Further information on EMC and ambient conditions, refer to Section
„General technical data“
8.2.2 Technical data
Mounting system Can be snapped onto mounting rails
Dimensions (W x H x D) 77 x 112.5 x 72.5 mm
Weight 0.23 kg
Voltage divider, nominal value
1.76 to 2.64 kΩ
Power supply Max. +33 V DC
Current drain Max. 15 mA
Maximum rating 500 mW
Voltage divider
Other information
General data
Power supply
