Input/output modules
Hardware - SIMADYN D 5-55
Edition 12.2004
5
If only one ITxx module is used, it can be screwed to the metal spacers
using the M4 nuts (and washers) provided.
If a second ITxx module is used, the first ITxx module is not screwed using
the nuts, but instead, using plastic spacers (these are included with the ITxx
modules).
The second ITxx module can then be inserted on the plastic spacers, and
screwed together using the M4 nuts (and washers).
After the module assembly has been screwed together, it is inserted into the
subrack.
5.5.7 Application information and noise immunity
• Operation without fans is possible
• Noise immune operation is only possible, if it is tightly screwed into the
subrack.
For more detailed information on EMC and the ambient conditions, refer to
the "General technical data" section!
5.5.8 Connecting diagrams
LE
bus
20pin
50pin
20pin
SC31.2
SC17.2
or
(l=2m)
(l=2m)
SITOR interface SE20.2
SITOR set
or
(each, 50pin)
SITOR
interface
X7
X6
X5
SITOR-
diagnostics sig.
2 anal. outputs
4 dig. outputs DO
4 dig. inputs DI
1 incremental
encoder input
ITDC
SC12
(20pin)
l=2m
SU11
SC12
(20pin)
l=2m
SU11
2 AA
4 BA
4 BE
1 INC

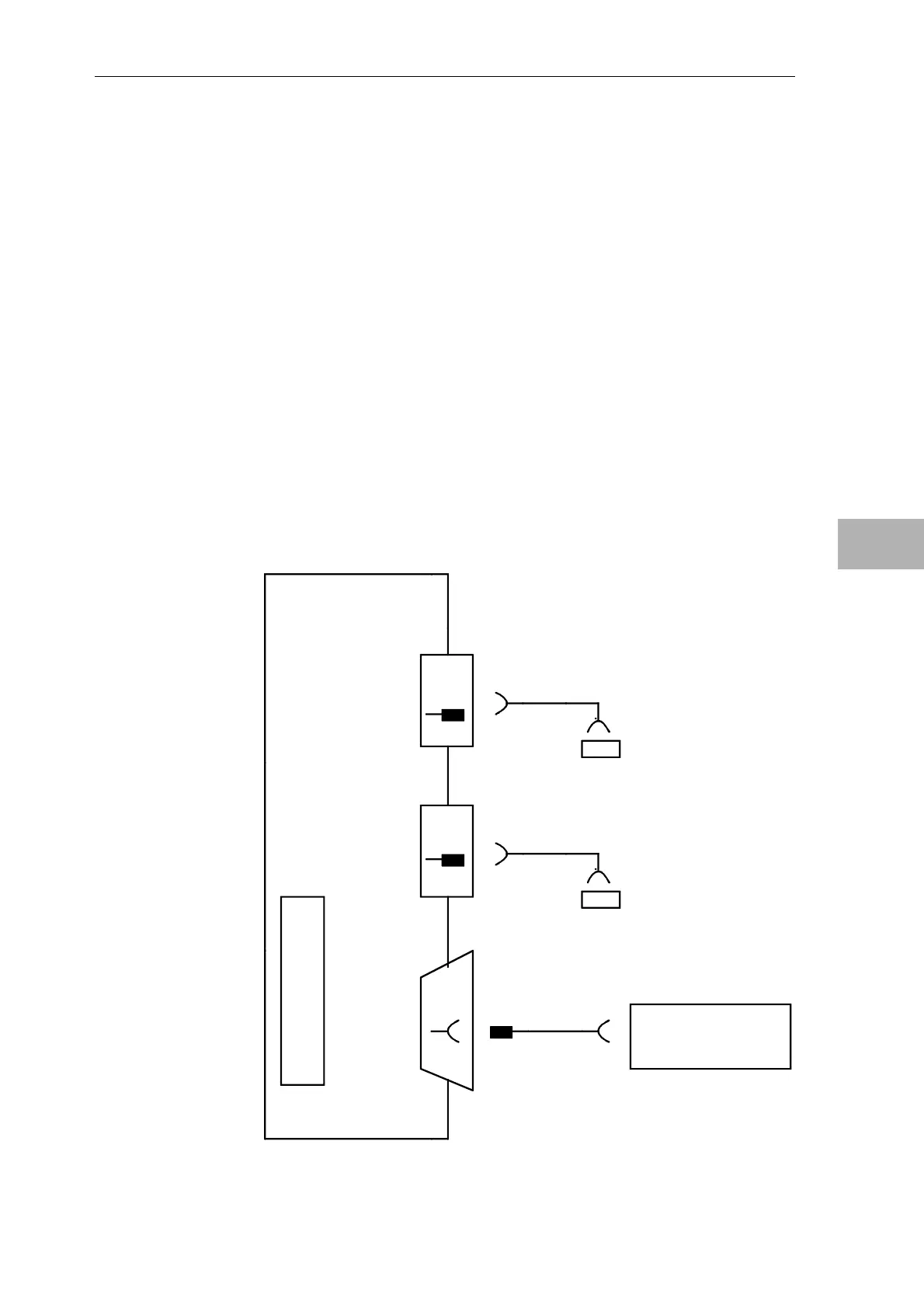

Fig. 5-12 Connecting cables and interface modules
For a second ITxx
