Operator control panel OP2
10-30 Hardware - SIMADYN D
Edition 03.2001
10.15 Labeling and replacing the labeling strips
The function keys of the OP2 are labeled with B1 to B4 and V1 to V12 when
they are shipped from the factory. A set of (4 x) unlabeled strips are provided
with the OP2 so that customers can make their own key labels. When these
labels are used, they cover the standard labels.
!
CAUTION Before inserting the labeling strips, the labeling must be smear proof,
as a membrane keyboard, cannot be cleaned inside. The front panel
can only be replaced by a service workshop incurring considerable
costs.
If necessary, remove old labeling strips at the tabs.
Carefully insert label strips with smear-proof labeling.
SS1/IF1 SS2A/IF2A
SS2B/IF2B
OP2
(Lower unit side)

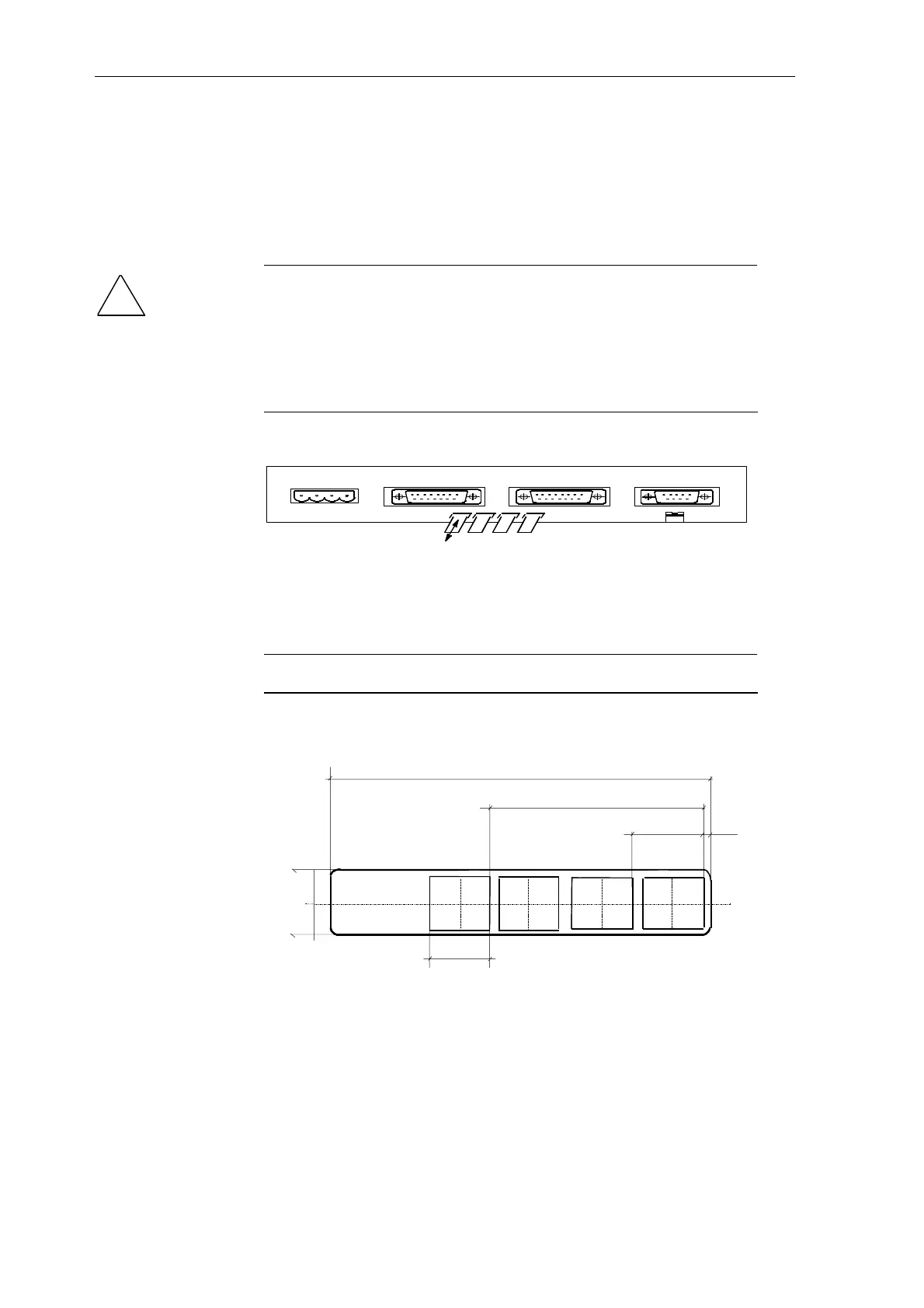

Fig. 10-3 Lower side of the unit showing the labeling strips
If the OP2 is already mounted, we recommend that the screw tensioners are
released and the unit is carefully raised towards the front out of the cut-out.
NOTE
Do not suspend the OP 2 at its connecting cables!
The following dimension drawing shows the individual labeling strips and the
visible fields (which can be used for labeling):
14,2
88
3 x 16,7 = 50,1
16,7 2,5
14 (4x)
Fig. 10-4 Dimension drawing, labeling strips
If you make your own labeling strips using the dimension drawing above,
observe that they should not be more than 0.1 mm thick!
