Operator control panel OP2
10-20 Hardware - SIMADYN D
Edition 03.2001
10.6 Handling OP2 errors
OP2 has two types of error messages:
• System messages: The messages can be analyzed using the SYSMSG
key. (refer to Chapter "OP2 error handling).
• Operating messages: The messages are displayed for approx. 3
seconds and then automatically disappear. (refer to Chapter "Operating
messages").

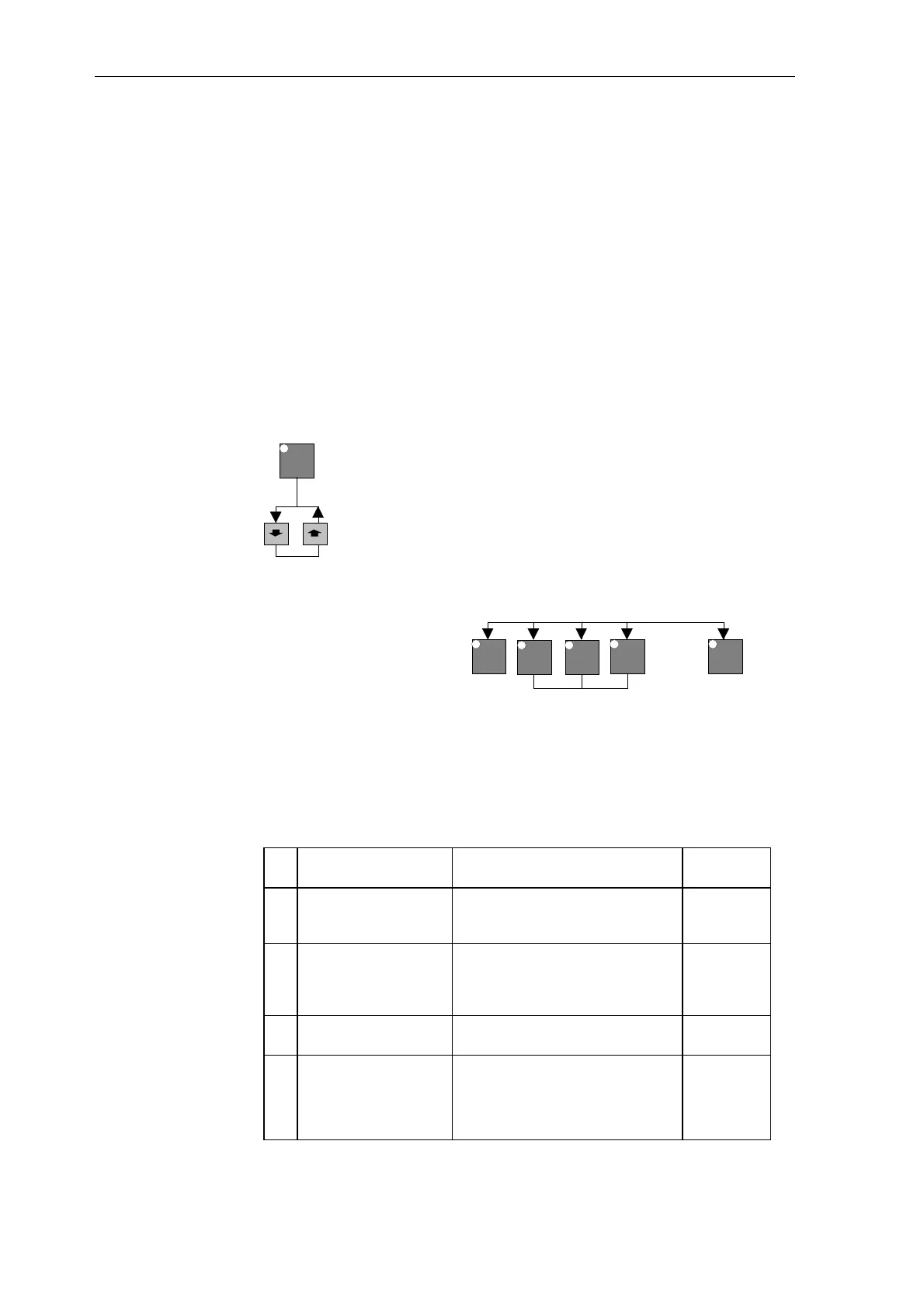

10.6.1 System messages
If OP2 identifies an error during parameterization, initialization or in cyclic
operation, an appropriate error message is entered into the system error
field and the LED in the SYSMSG key starts to flash.
MSG
BIN
SYSTEM
MSG
SYS
VAL
Running functions are canceled
No function
Onl
ossible after the INIT
hase
MSG
SYS
Function selection
Scroll through all active messages
If there is no active message: The following message is displayed
No. 19 (NO SYSTEM ERROR)
The message can be displayed using the SYSMSG key. All of the error
messages and associated error causes and corrective actions are now
subsequently described. The errors cannot be acknowledged.
The cause must be removed, otherwise error-free operation is not
possible.
These are the system messages:
No Text Description /cause/ corrective
action
Reference
(Chapter)
10
INITIALIZATION
ERROR MEASURED
VALUE NO.
INIT telegram error for a process
data. Repeat initialization. Check
configuring.
2.2.1
18
NO PRINTER BUFFER
FREE
The printer cannot print-out a
message fast enough. Messages
are lost. Check the printer and
printer connection.
1.4.6
19
NO SYSTEM ERROR
System mode: There are no active
error messages
3
23
DATA TRANSFER
ERROR, CHECK
HARDWARE,
Data transfer errors occur on the
USS bus:
- faults on the cable
- incorrect baud rate
- BUS conflict on the USS bus
2.2
