Communications support modules
6-24
Hardware - SIMADYN D
Edition 12.2004

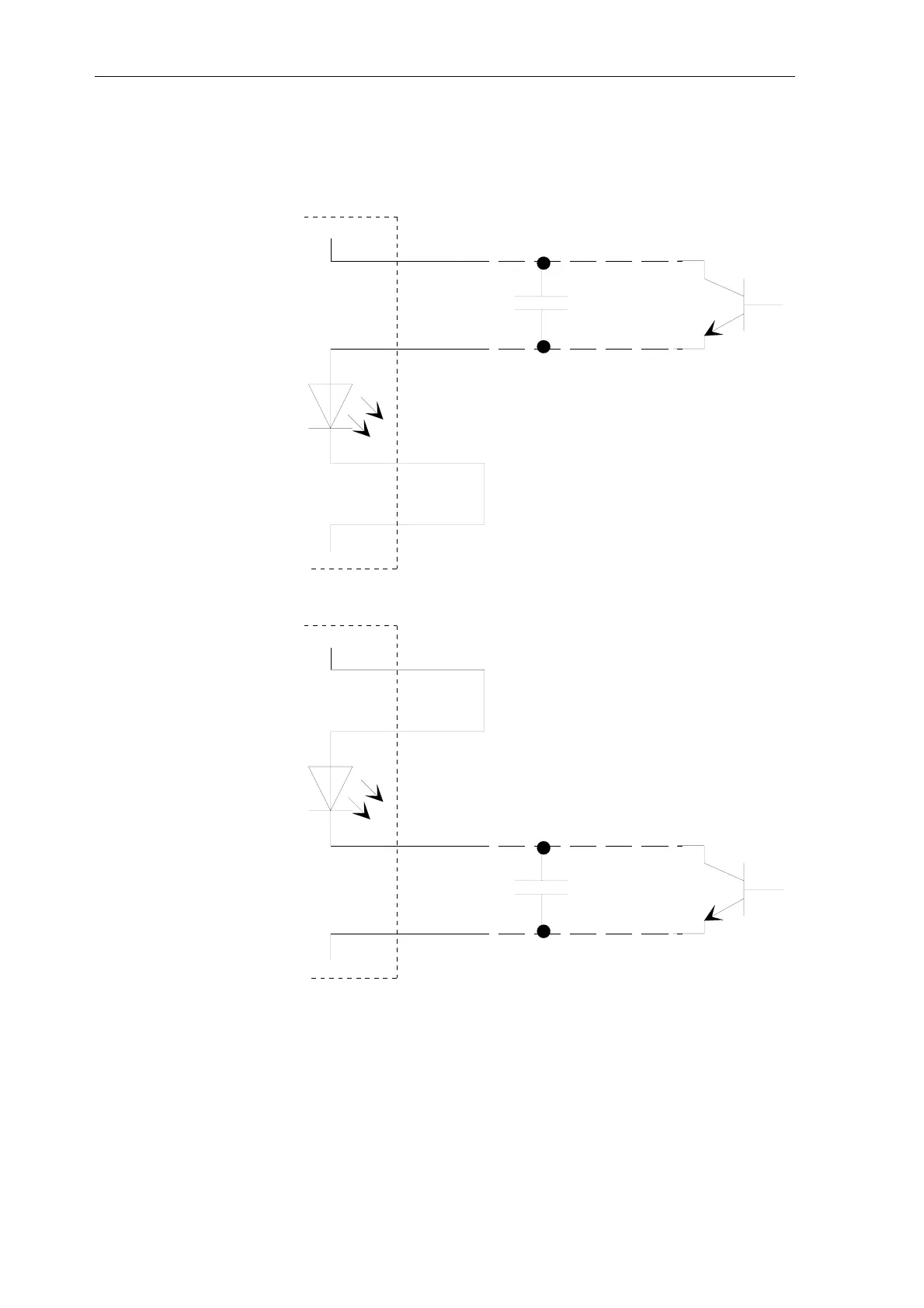

Please compare the following connection examples:
"P
"M
+Iq
+RxD
-RxD
-Iq
Cable
capacitance
+TxD
-TxD
a)
"P
"M
+Iq
+RxD
-RxD
-Iq
Cable
capacitance
+TxD
-TxD
b)
Fig. 6-5:
Unfavorable
cable connection:
Current source and transmitter at different ends
